The 3n+1 Problem

© January 2020, Darrell Cox (A link to "Fermat's Last Theorem and Related Problems" is at fermat and a link to "Farey Series and the Riemann Hypothesis" is at riemann.  An article discussing generalized dead limbs is at deadlimb.  Other links are given at the end of this article.)

The 3n+1 problem appears to have been first posed by Collatz in 1937.  In this problem, a sequence is generated starting with an initial natural number n.  The rule for generating the next natural number in the sequence is; if n is even, the next natural number in the sequence is n/2, or if n is odd, the next natural number in the sequence is 3n+1.  For example, if the initial value of n is 17, the sequence generated is {17, 52, 26, 13, 40, 20, 10, 5, 16, 8, 4, 2, 1, 4, 2, 1, ...}.  If the natural number 4 is encountered in the sequence, the sequence starts repeating ({4, 2, 1} is generated over and over).  There are three possibilities; (1) the natural number 4 is encountered in the sequence, (2) the sequence starts repeating, but for a different cycle than {4, 2, 1}, or (3) the sequence doesn't repeat (in which case the natural numbers generated in the sequence have to keep getting larger and larger).  The 3n+1 conjecture states that only the first possibility can occur.  Let c be an odd integer greater than or equal to -1 that is not divisible by 3.  The next number in the 3n+c sequence is defined to be 3n+c if n is odd, or n/2 if n is even (the next number in the sequence is always a natural number).  The sequence repeats for {4c, 2c, c} if c>-1 or {2, 1} if c=-1.  In this more general sequence, there are usually cycles other than {4c, 2c, c}.  Although the 3n+1 and 3n-1 sequences have some unique properties, the 3n+c problem is essentially the same for all c values.

The 3n+1 problem is difficult and is not likely to be solvable by an amateur.  Although it might seem that the problem should be classified as "recreational" mathematics, there is a considerable body of mainstream mathematical literature on the subject.  (See Jeffrey C. Lagarias' "The 3x+1 problem:  An annotated bibliography (1963-1999)" at http://arxiv.org/abs/math.NT/0309224 and "The 3x+1 Problem:  An Annotated Bibliography, II (2000-2009)" at http://arxiv.org/abs/math.NT/0608208.  Also, see Lagarias' 1985 article "The 3x+1 problem and its generalizations" at http://www.cecm.sfu.ca/organics/papers/lagarias/index.html.)  This article reviews some of the highlights of the 3n+1 problem literature and presents some original research on the matter (in the form of empirically derived "results").  The level of the presentation is elementary and empirically derived propositions are specifically identified when practical.  Sometimes entire sections are mostly empirically derived.  In these cases, a statement to that effect is made at the beginning of the section.

Newcomers to the 3n+1 problem are frequently mystified by how the sequence increases and decreases in a seemingly random fashion, but always appears to arrive at 1.  The fluctuations of the sequence are of little interest once the probability of the situation is taken into account (whether there are cycles other than {4, 2, 1} is far more interesting).  See the section "A probabilistic heuristic" in the Wikipedia article at http://en.wikipedia.org/wiki/Collatz_conjecture for a brief introduction to the subject, the section "A heuristic argument" in Lagarias' 1985 article for more details, and the section "A Random-Walk Argument" in Richard E. Crandall's1 1978 article "On the "3x+1" Problem".  The probabilistic argument to be given here avoids the "mixing" assumptions in other approaches and is amenable to empirical verification.  If the 3n+1 sequence is bounded and there are no cycles other than {4, 2, 1}, then the sequence element 1 must eventually be reached.  The argument to be given is then that the 3n+1 sequence is bounded.

A Probabilistic Argument that the 3n+1 Sequence is Bounded

The probabilistic argument entails a restructuring of the Collatz graph and an alternate definition of the 3n+1 sequence.  The Collatz graph is a tree-like structure that shows how the sequence element 1 can be arrived at starting from different initial n values.  (See the Wikipedia article for the standard depiction of the Collatz graph.  Of course, the graph can only be constructed if the 3n+1 conjecture is assumed to be true.)  When n is even and n-1 is divisible by 3, there is a node in the graph where the previous elements in the sequence are 2n and (n-1)/3.  For example, in the Collatz graph, two limbs ending in 32 and 5 converge to form a limb starting at 16.  In the restructured Collatz graph, 5 is considered to be a continuation of the limb segment starting with 16.  In general, (n-1)/3 is considered to be a continuation of the limb segment at such nodes.  (That is, "odd" paths are taken when tracing back through the nodes.)  The limbs in the restructured Collatz graph are then;

{4, 2, 1}
{..., 24, 12, 6, 3, 10, 5, 16, 8}
{..., 72, 36, 18, 9, 28, 14, 7, 22, 11, 34, 17, 52, 26, 13, 40, 20}
{..., 120, 60, 30, 15, 46, 23, 70, 35, 106, 53, 160, 80}
{..., 168, 84, 42, 21, 64, 32}
   .
   .
   .

Each limb other than (4, 2, 1) contains exactly one odd element divisible by 3.  Let j denote the odd natural number that is divisible by 3.  The natural numbers to the right of j are not divisible by 3 (since 3 does not divide 3j+1, (3j+1)/2, ...).  The natural numbers to the left of j must be of the form 2ij where i is a natural number (no natural number can attach to this part of the limb since 3 does not divide 2j-1, 4j-1, 8j-1, ...).  (The limbs listed above [starting with the second limb] contain 3, 9, 15, and 21 respectively.  The second limb attaches to the first limb, the third and fifth limbs attach to the second limb, and the fourth limb attaches to the third limb.)  Note that other than the limb {4, 2, 1}, the next-to-last element in a limb is divisible by 8 and that no natural number to the right of the odd natural number divisible by 3 and before the next-to-last natural number is divisible by 8 (this is known as a 1-2 sequence vector since there are either one or two even sequence elements between successive odd sequence elements).

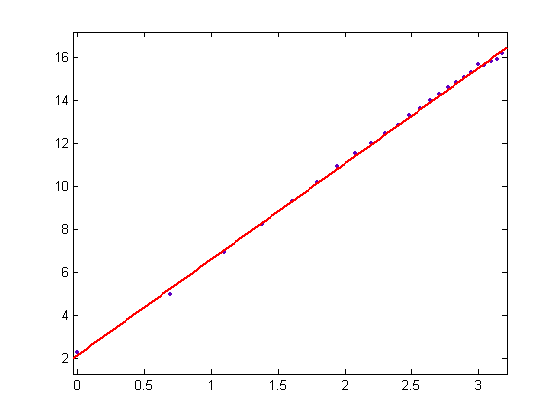

The 3n+c sequence can be defined by the recurrence operation [(3/2)h(n+c)-c]/2n, 2h divides n+c, 2h+1 does not divide n+c.  Each iteration of the recurrence operation starting with an odd element will be referred to as a "jump".  If n is odd and 22 does not divide n+c, then the sequence {n, 3n+c, (3n+c)/2=(3/2)(n+c)-c, ...} is generated where every other element of the sequence up to (3/2)(n+c)-c is odd.  Similarly, if n is odd and 22 divides n+c, 23 does not divide n+c, then the sequence {n, 3n+c, (3n+c)/2, 3[(3n+c)/2]+c, [3[(3n+c)/2]+c]/2=(3/2)2(n+c)-c, ...} is generated where every other element of the sequence up to (3/2)2(n+c)-c is odd.  In general, if 2h divides n+c, 2h+1 does not divide n+c, then the first element in the sequence that is divisible by 4 is the one just before (3/2)h(n+c)-c.  If [(3/2)h(n+c)-c]/2 is even, then the first element in the sequence that is divisible by 8 has been found.  Each limb of the restructured Collatz graph other than {4, 2, 1} consists of a series of jumps, the last jump ending in an even natural number (which connects the limb to the rest of the tree).  The question of whether the 3n+1 sequence (or the 3n+c sequence) is bounded then reduces to the question of whether there are any jumps ending in an even natural number.  The distribution of the number of jumps (denoted by i) before an even natural number is reached for the 1000000 sequences starting with 3, 9, 15, ..., 5999997 is;

 i=1, 500002
i=2, 250004
i=3, 124998
i=4, 62498
i=5, 31211
i=6, 15683
i=7, 7782
i=8, 3897
i=9, 2000
i=10, 972
i=11, 497
i=12, 230
i=13, 109
i=14, 58
i=15, 23
i=16, 13
i=17, 15
i=18, 3
i=19, 3
i=20, 0
i=21, 1
i=22, 0
i=23, 0
i=24, 1

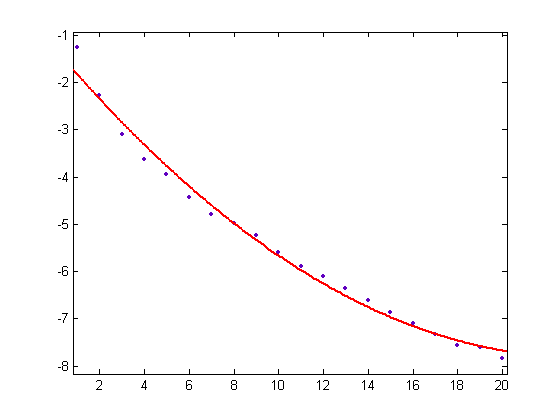

The probability that i iterations are required is about (1/2)i.  Even though the probability that the sequence is unbounded is effectively 0, it's unlikely that this part of the 3n+1 conjecture is provable.  (The data indicates that the process which forms 3n+1 sequences [having 1-2 sequence vectors] consisting of an arbitrarily large number of jumps is random.  [In the mathematical literature, such processes are usually said to be "pseudo-random", but in the absence of a rigorous definition of "random", one could argue that saying the process is random is acceptable.]).  The probability that h=1 is about 1/2, the probability that h=2 is about 1/4, the probability that h=3 is about 1/8, etc.  These are the expected probabilities.  Even if such a limb (one having a 1-2 sequence vector starting with an odd natural number divisible by 3) attaches to another such limb, and that limb attaches to another such limb, etc., there is no guarantee that the trunk of (4, 2, 1) would be reached.  The 3n+1 sequence may then be unbounded in this way.  About 90% of the time, the odd natural number divisible by 3 in a limb that attaches to another limb is larger than the odd natural number divisible by 3 in that limb.  (The proportions for the first 10, 100, 1000, 10000, 100000, 10000000, and 10000000 odd natural numbers divisible by 3 are 0.9, 0.91, 0.905, 0.9022, 0.90333, 0.903506, and 0.903254 respectively.  The limb (..., 24, 12, 6, 3, 10, 5, 16, 8) doesn't attach to another limb containing an odd natural number divisible by 3, but this is still counted as if 3 were greater than an odd natural number divisible by 3 in another limb.)  There is then a strong tendency for the limbs to eventually be attached to the trunk.

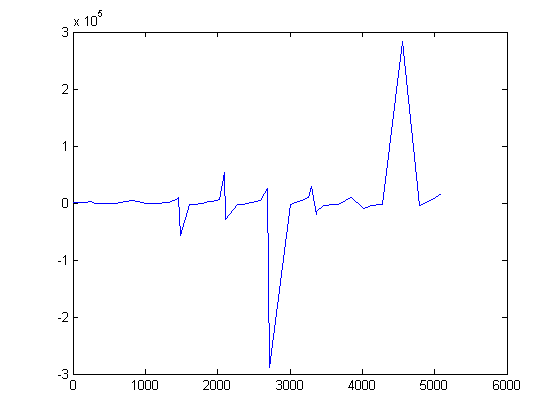

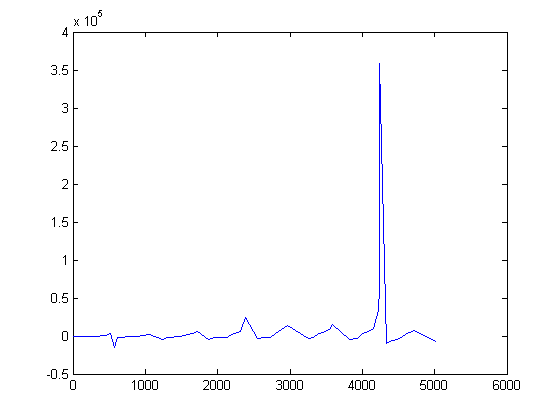

If c=1 and negative n values are allowed, the absolute value of the integer divisible by 3 in a limb that attaches to another limb is larger than the absolute value of the odd integer divisible by 3 in that limb about 90% of the time.  Also, the probabilities for the number of jumps required to reach an even integer starting with an odd integer divisible by 3 are the same as when only positive n values are allowed.  If c>1 and negative n values are allowed, the same probabilities apply.  Let t denote the odd integer divisible by 3.  For example, for c=5, 5 does not divide t, -10k≤(t-3)/6≤10k, and k=1, 2, 3, ..., 7, the proportions are 0.941176, 0.913043, 0.906933, 0.903944, 0.903457, 0.903540, and 0.903280 respectively.  For k=4, a histogram of the differences in absolute values of t values divided by 1536 (to scale the values) is;

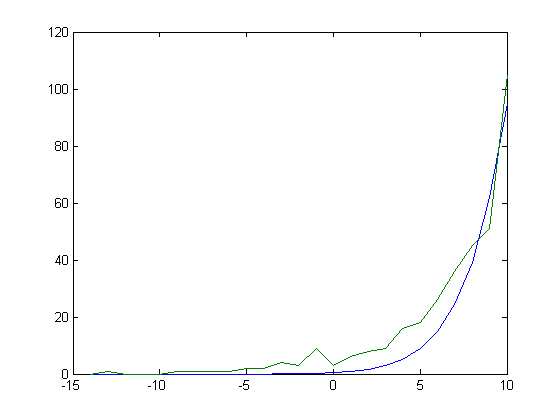

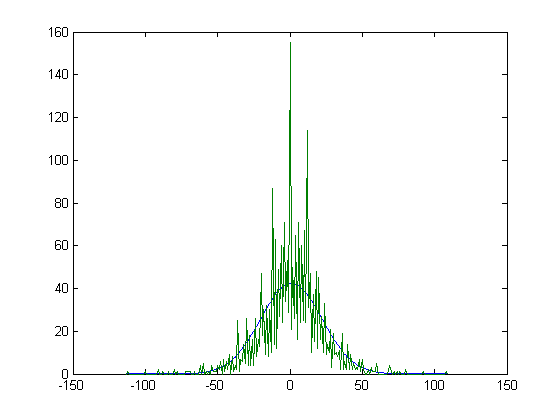

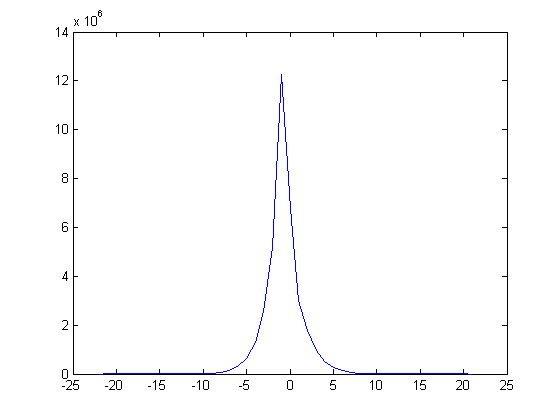

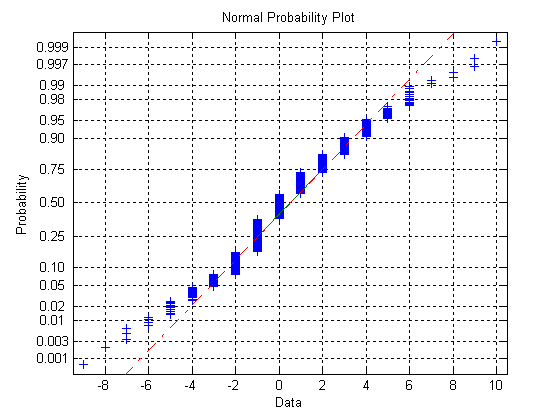

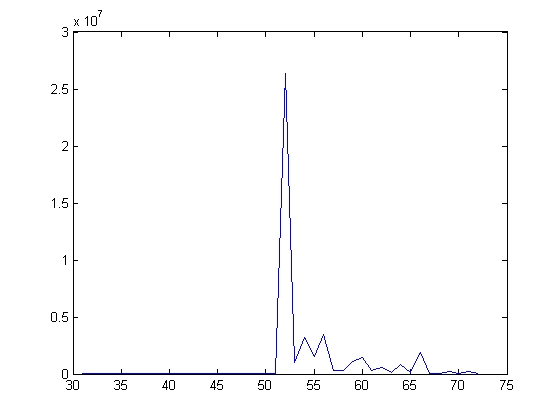

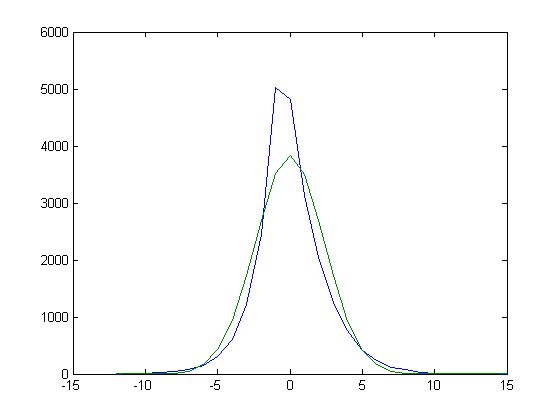

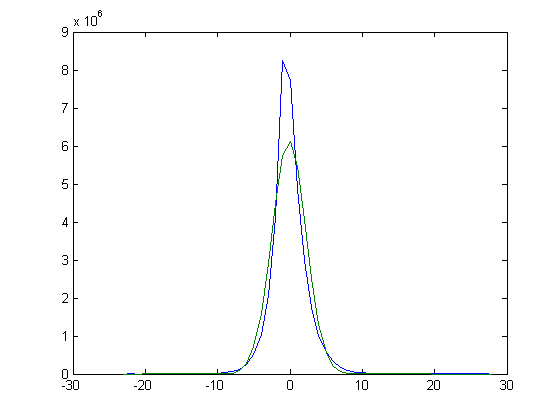

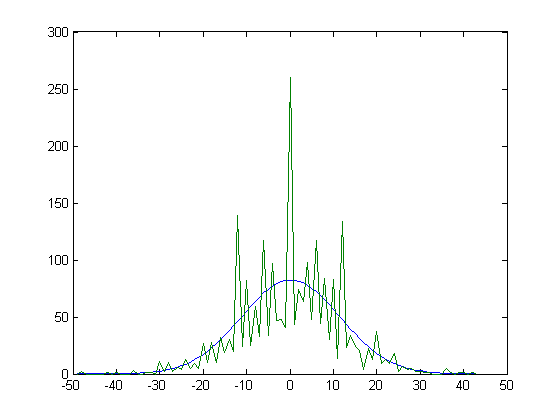

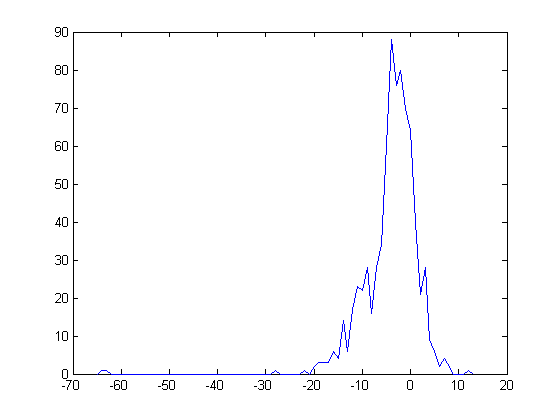

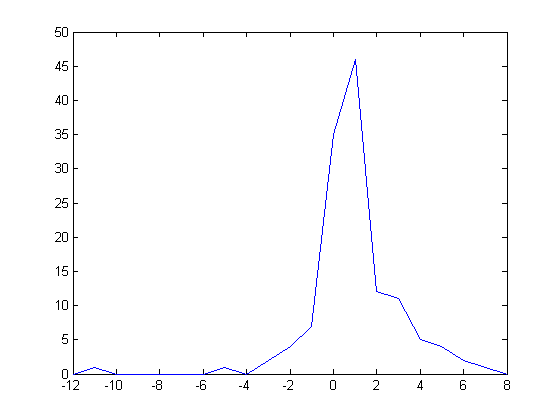

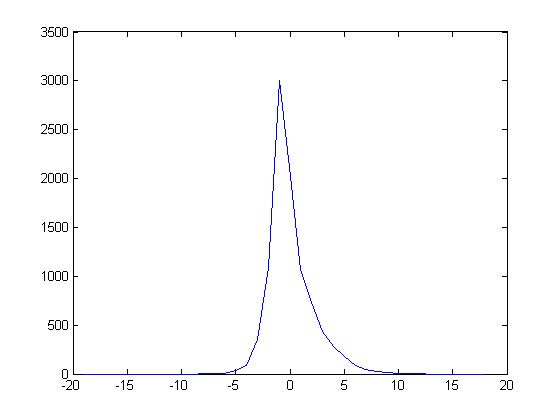

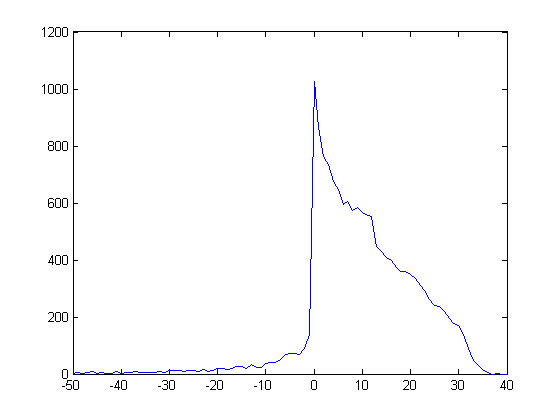

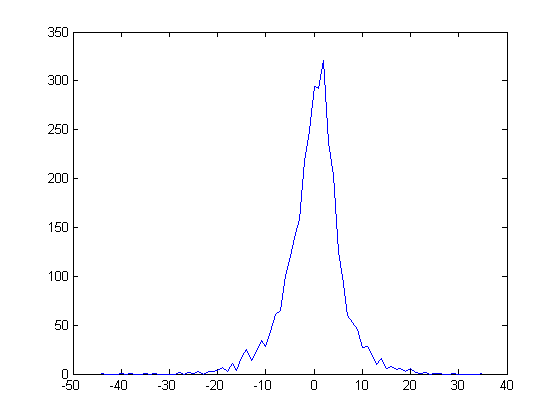

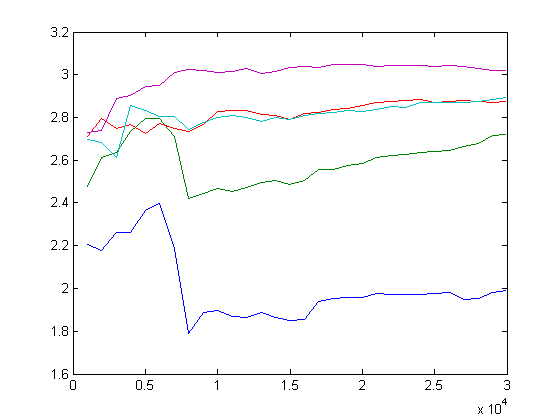

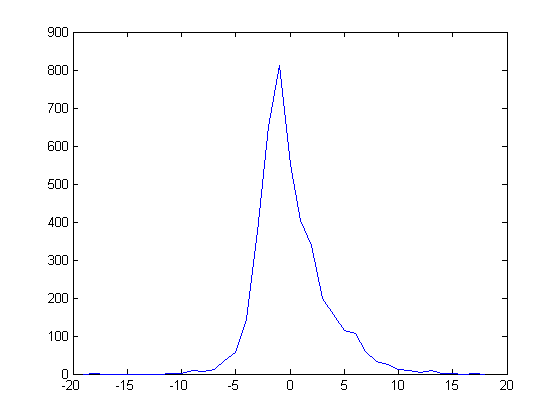

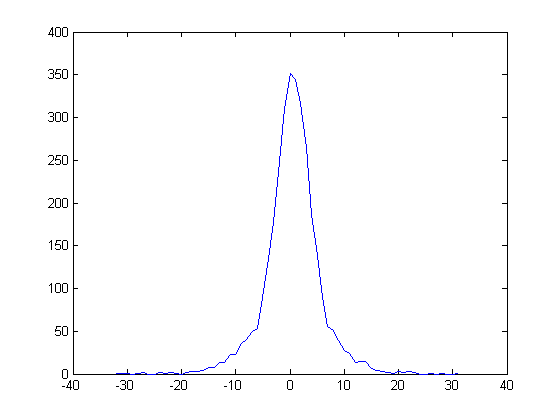

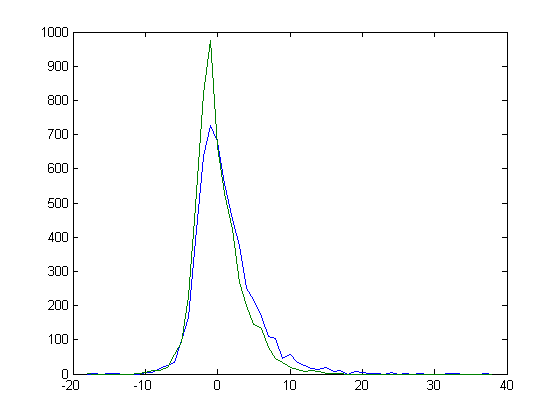

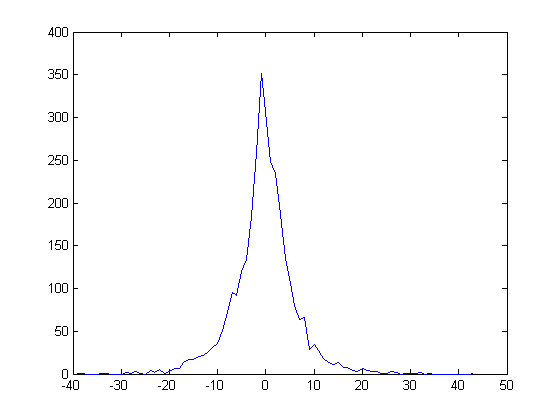

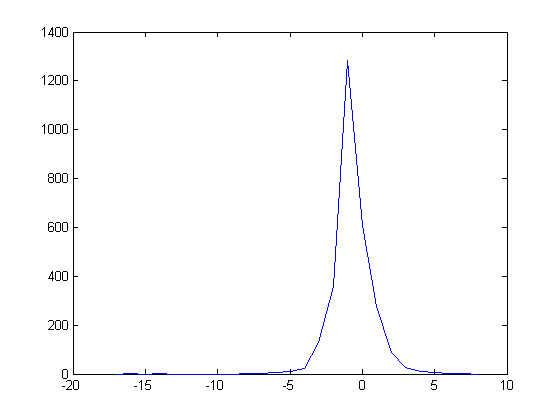

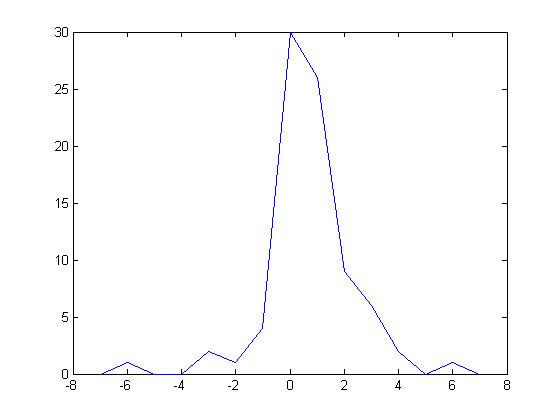

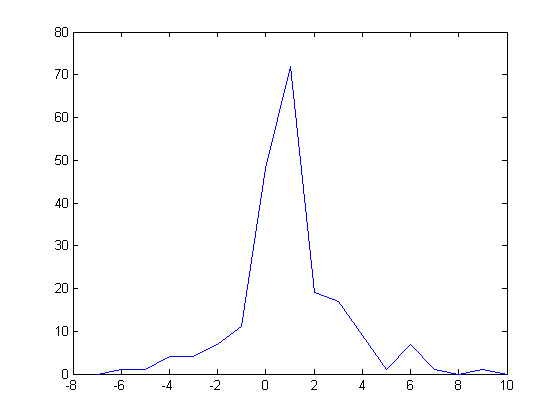

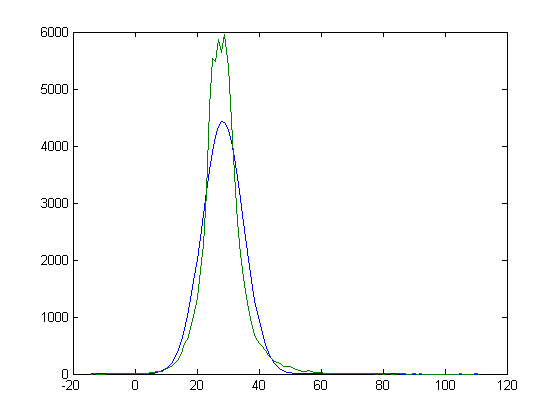

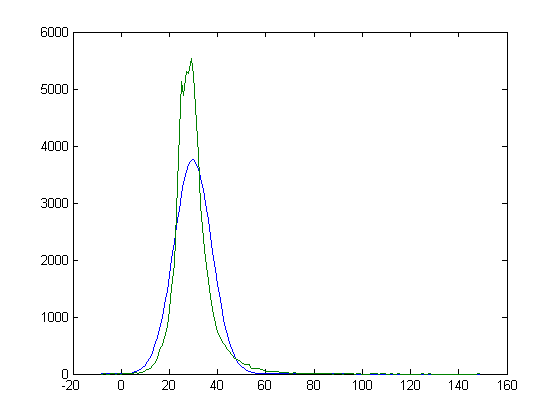

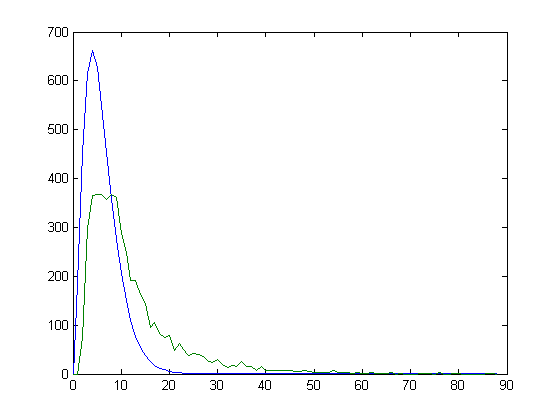

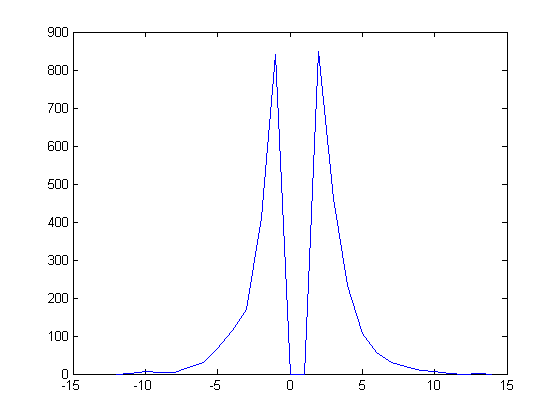

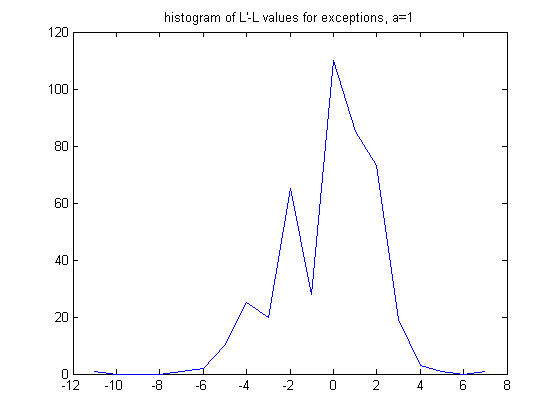

For c=1 and k=4, a histogram of the differences in absolute values of t values divided by 1536 is;

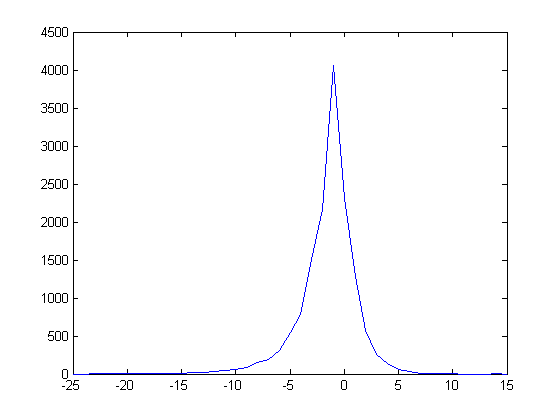

(There are fewer values for c=5 due to excluding t values divisible by 5.)  In general, 8/9 appears to be a lower bound of these proportions.

In 1972, John H. Conway2 showed that a more general function iteration problem similar in form to the 3n+1 problem is computationally undecidable.  This lends some credence to the notion that this part of the 3n+1 problem is unprovable.  However, some progress can be made in this area; in 1976, Riho Terras3 showed that almost all numbers have finite "stopping time".  Let S0=N and Si=Si-1/2 if Si-1 is even or 3(Si-1+1)/2 otherwise.  (This is the way the 3n+1 sequence is usually defined in the mathematical literature.  This turns out to be the "natural" way to define the sequence.)  The smallest value of i such that Si<S0 is defined to be the stopping time of N.

Necessary and Sufficient Conditions for Cycles in the 3n+c Sequence to Exist

An element s in the 3n+c sequence can be expressed as (Xa-cZ)/Y where a is a subsequent element in the sequence, X is a natural number and a power of 2 (X equals 2l where l is the length of the sequence [where the element after an odd element i is defined to be (3i+c)/2]), Y is a natural number and a power of 3 (Y equals 3m where m is the number of odd elements in the sequence), and Z is a natural number and a 3-adic number with power-of-two coefficients (see Bohm and Sontacchi's4 article and page 41 of Gunther Wirsching's5 book [for discussions of the c=1 case] ).  (An example of Z is 2233+2332+2531+2630 =340.  A formula for Z will be given later.)  If s=a, then s=cZ/(X-Y).  Other than setting c to X-Y, no method for finding X, Y, and Z where cZ/(X-Y) is an integer is known, so other requirements for cycles will be investigated.

The 3n+c Sequence in the Integer Domain

In the mathematical literature, the cycles {4, 2, 1} for c=1 and {2, 1} for c=-1 are usually said to be "trivial" (but there doesn't appear to be any rationale for this designation).  For a given c value, there appear to be few (if any) non-trivial cycles.  When c is composite, some of the cycles that occur are essentially no different from the cycles that occur for a factor of c (the elements of the cycle are just a common multiple of the elements of the cycle for the factor of c).  (Cycles that are not multiples of other cycles are said to be primitive.  Note that the cycle {4c, 2c, c} for c>1 is not primitive.)  Also, some cycles for a given c value are interrelated; they have the same lengths (number of elements) and the same number of odd elements (and approximately the same dynamic range of elements).  Counting these types of cycles as redundant, a histogram of the apparent number of cycles (including the "trivial" cycles) for c values less than or equal to 151 is;

   number of cycles          number of c values
             0                                    0
             1                                  20
             2                                  21
             3                                  10
             4                                    1
             5                                    0
             6                                    0
                                        total=52

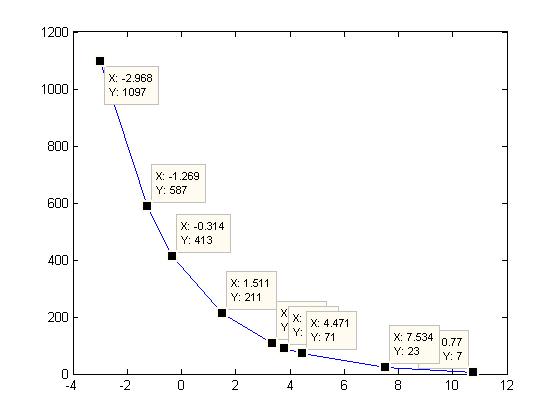

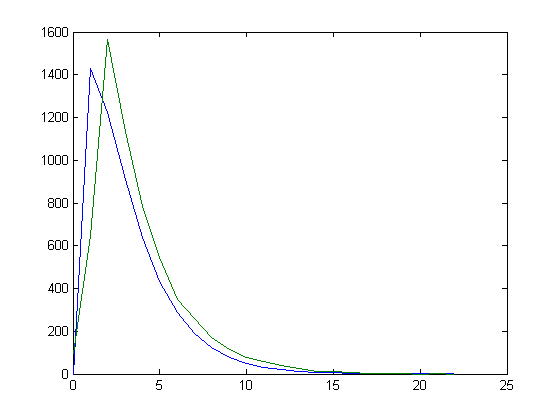

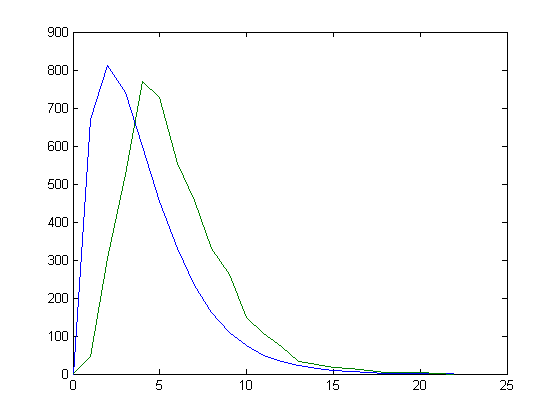

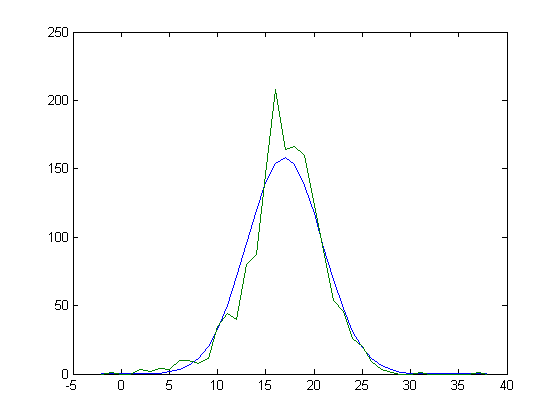

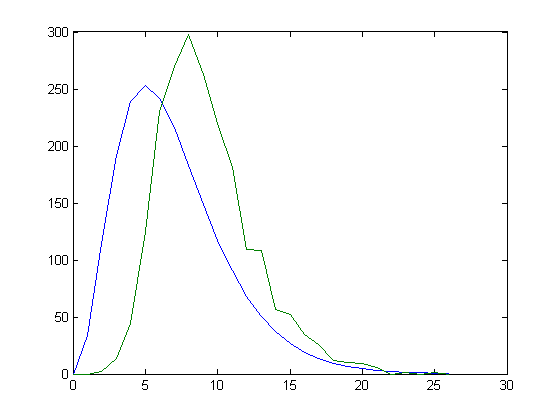

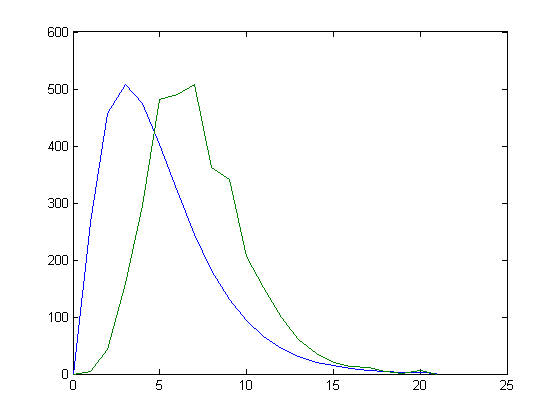

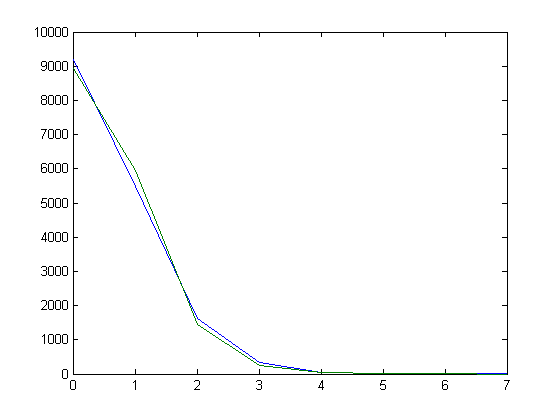

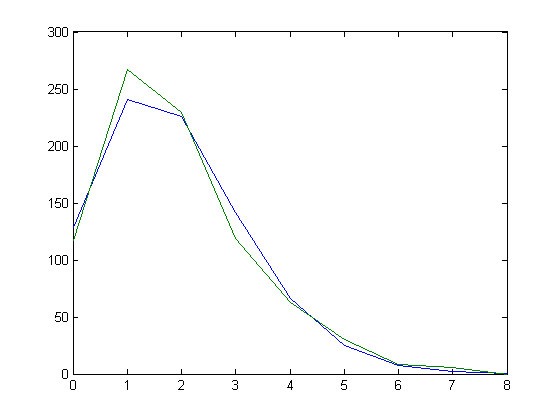

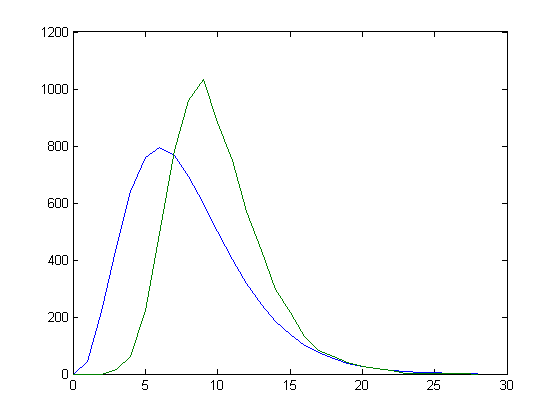

A Poisson probability distribution with a parameter of 1 can be used to model the number of 3n+c cycles for a given c value (see the author's "The 3n+1 Problem:  A Probabilistic Approach" at http://www.cs.uwaterloo.ca/journals/JIS/VOL15/Cox/cox10.pdf).

Associated cycles are defined in the Journal of Integer Sequences article.  A Poisson probability distribution with a parameter of 1.082 superimposed on a histogram of the number of  cycles for a given c value (allowing negative n values and counting only one of interrelated or associated cycles) for c values greater than 0 and less than or equal to 19999 is;

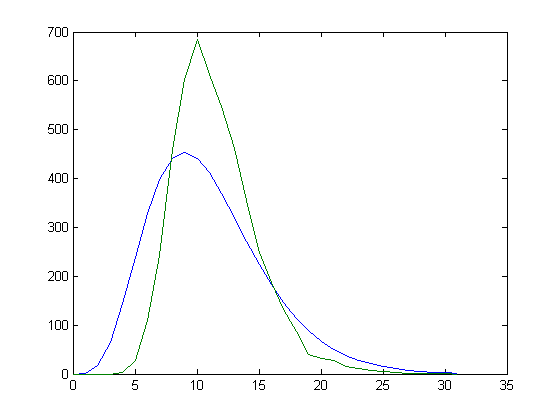

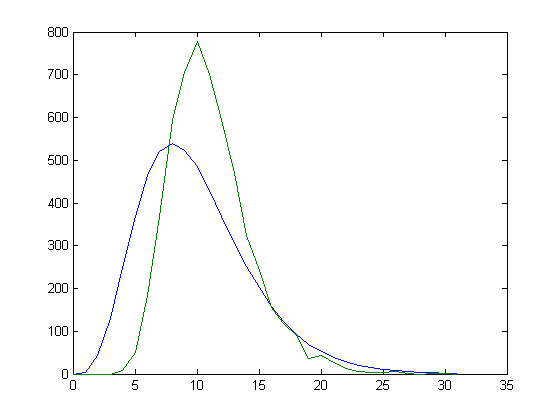

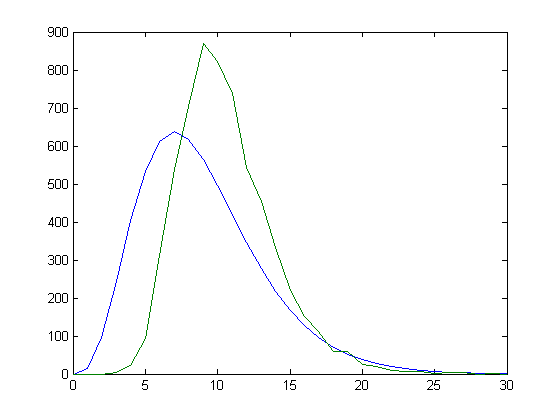

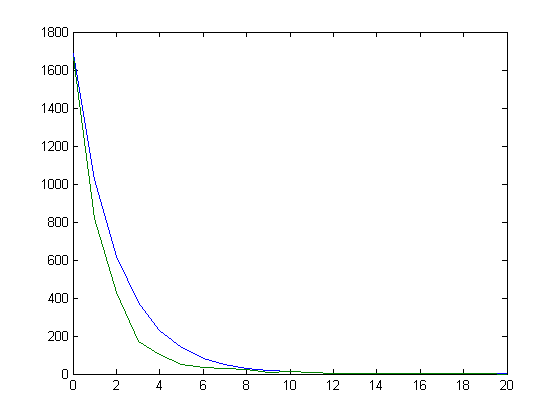

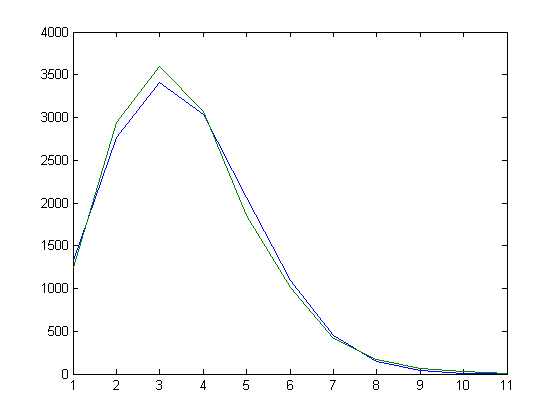

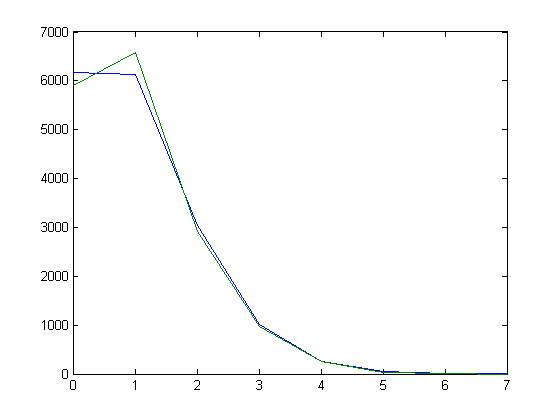

(The mean of the actual distribution is 1.082.)  A Poisson probability distribution with a parameter of 1.070 superimposed on a histogram of the number of cycles for a given c value (allowing negative n values and counting only one of interrelated or associated cycles) for c values greater than 0 and less than or equal to 29999 is;

When c=-1, there are two known cycles other than (2, 1); the cycle (20, 10, 5, 14, 7) and the cycle (68, 34, 17, 50, 25, 74, 37, 110, 55, 164, 82, 41, 122, 61, 182, 91, 272, 136).  A frequently asked question is why there are non-trivial cycles for the 3n-1 sequence, but apparently not for the 3n+1 sequence.  There are many such examples when general negative c values are allowed.  For example, there is at least one primitive cycle for the 3n+7 sequence, but apparently none for the 3n-7 sequence.  However, there appears to be at least one primitive cycle in either the 3n+c sequence or the 3n-c sequence.  This indicates that the distinction between the 3n+c and 3n-c sequences is artificial and that negative n values should be allowed (and that the c values should be required to be positive).   (However, it is sometimes convenient to use the original definition of the 3n+c sequence.)  More evidence that the 3n+1 and 3n-1 sequences (n>0) should be considered to be the same sequence will be presented later.

Interrelated 3n+c Cycles

In this section, negative n values are allowed, c is required to be positive, and the element after an odd element i in the 3n+c sequence is defined to be (3i+c)/2.  A parity vector gives the order of even and odd elements in a 3n+c sequence, a "'1" for an odd element and a "0" for an even element.  Let k0, k1, k2, ..., km-1 denote the positions of the 1's in a parity vector containing m 1's and having a length of l.  Let Z denote 3m-12k(0)+3m-22k(1)+3m-32k(2)+...+302k(m-1) (due to typographical difficulties, k(0), k(1), k(2), ..., k(m-1) is used to denote k0, k1, k2, ..., km-1).  A cycle exists if and only if cZ/(2l-3m) is an integer.  (Note that every parity vector containing at least one 1 corresponds to a cycle for some c value [duplicated parity sub-vectors correspond to duplicated sub-cycles].)  For example, for the c=17 cycle of (2, 1, 10, 5, 16, 8, 4), k0=1 and k1=3, Z=3121+3023=14, 119=27-32, and (17·14)/119 is an integer.  There do not appear to be any factors of c left over after the division by 2l-3m.  This has been confirmed experimentally (for the 73916 distinct (c, l, m) values of the 3n+c cycles for c<100000):

(1)  A 3n+c cycle exists only if c divides 2l-3m.

If this proposition holds, Z need not be considered when searching for cycles; only the factors of 2l-3m need be considered.  When c=|2l-3m|, an arbitrarily constructed parity vector with a length of l and containing m 1's corresponds to a cycle (or possibly duplicated sub-cycles if l and m are not relatively prime), but the cycle is not guaranteed to be primitive.  When reduced, such a cycle corresponds to a cycle for a c value that is a proper divisor of 2l-3m.  In this sense, there is no problem of finding cycles; they're all well-defined and determined by the parity vectors.  Even the number of interrelated cycles is determined by the combinatorics of generating parity vectors that are distinct under rotation (see the above Journal of Integer Sequences article for a table of the numbers of distinct parity vectors for l less than or equal to 20 and m less than or equal to 10).  There is, however, the problem of determining which c values the primitive cycles map to.  For example, for l=1 and m=1, the parity vector is (1) (corresponding to the cycle {-1} for c=1), for l=2 and m=1, the parity vector is (0, 1) (corresponding to the cycle {2, 1} for c=1), and for l=3 and m=2 the parity vector is (1, 1, 0) (corresponding to the cycle {-5, -7, -10} for c=1).  For l=11 and m=7, there are 30 distinct parity vectors, the first few of which are (0, 1, 1, 1, 1, 0, 1, 1, 1, 0, 0), (1, 1, 1, 1, 0, 1, 0, 1, 1, 0, 0), (1, 1, 0, 1, 0, 1, 1, 1, 1, 0, 0), ... (corresponding to cycles for c=139).  The cycle corresponding to the first parity vector is not primitive (when c=139) and corresponds to the remaining known c=1 cycle of {-34, -17, -25, -37, -55, -82, -41, -61, -91, -136, -68}.  Another example factorization will be given.  For l=8 and m=4, the distinct parity vectors are (1, 1, 0, 0, 1, 1, 0, 0), (0, 1, 0, 1, 0, 1, 0, 1), (1, 0, 1, 1, 0, 1, 0, 0), (0, 0, 1, 1, 1, 1, 0, 0), (0, 1, 1, 0, 1, 1, 0, 0), (1, 0, 0, 1, 1, 1, 0, 0), (0, 1, 0, 1, 1, 1, 0, 0), (1, 0, 1, 0, 1, 1, 0, 0), (1, 1, 0, 1, 0, 1, 0, 0), and (0, 1, 1, 1, 0, 1, 0, 0) (corresponding to cycles for c=175).  The first parity vector corresponds to two duplicated primitive cycles for c=7, the second parity vector corresponds to four duplicated primitive cycles for c=1, the third parity vector corresponds to a primitive cycle for c=25, the fourth and fifth parity vectors correspond to primitive cycles for c=35, and the remaining parity vectors correspond to primitive cycles for c=175.  Although 5 also divides 175, there are no primitive cycles for this c value when l=8 and m=4 (the parity vectors have been used up by cycles for the larger c values and c=1).

Apparently, every c value is covered in this mapping.  A more appropriate question to ask than why cycles don't exist for a given c value is why they do exist and what the expected number of cycles is (see the Journal of Integer Sequences article for more details).

(For a given c value, two primitive cycles cannot have the same parity vector.  For example, the 3n+5 sequence 83, 254, 127, 386, 193, 584, 292, 146, and 73 has the same parity vector as the 3n+5 cycle 19, 62, 31, 98, 49, 152, 76, 38, and 19.  The ratios of the corresponding odd elements decrease monotonically and are 4.368, 4.097, 3.939, and 3.842.  More generally, a primitive 3n+c1 cycle cannot have the same parity vector as a primitive 3n+c2 cycle.  For example, the 3n+7 sequence 65, 202, 101, 310, 155, 472, 236, 118, and 59 has the same parity vector as the above 3n+5 cycle, but the ratios of the corresponding odd elements are 3.421, 3.258, 3.163, and 3.105.  The 3n+7 sequence 1, 10, 5, 22, 11, 40, 20, 10, and 5 has the same parity vector as the above 3n+5 cycle, but the ratios of the corresponding odd elements are 0.053, 0.161, 0.224, and 0.263.  For a primitive 3n+c cycle where c≠|2l-3m|, there is always another cycle [not necessarily primitive] having the same parity vector where c=|2l-3m|.  This accounts for Proposition (1).)

The Minimum Element in a 3n+c Cycle

In 1997, Halbeisen and Hungerbühler6 proved optimal estimates for the length of a Collatz cycle in terms of its minimum using the formula Ml,m=∑(]jm/l[ - ](j-1)m/l[)2j-13m-]jm/l[ where the summation is from j=1 to l and the reversed brackets denote the ceiling function (the minimum is Ml,m/(2l-3m)).  For a Collatz cycle, Ml,m/(2l-3m) is larger than the minimum element in other cycles having a length of l and containing m odd elements.  Their Lemma 4 is;

Let s = (s1,..., sl) and t = (t1,..., tl) be two distinct elements of Sl,n.  If ∑ki=1 si  ≤  ∑ki=1 ti for all k an element of {1,..., l}, then φ(s) > φ(t).

Sl,n denotes the set of all 0-1 sequences of length l containing exactly n ones (the number of ones is denoted by m in this article).  φ is defined recursively by φ({})=0, φ(s0)=φ(s), φ(s1)=3φ(s)+2l(s) where s denotes an arbitrary element of S (S denotes the union of all Sl,n sets from n=0 to l) and l(s) the length of s.  (The explicitly computed form of φ is denoted by Z is this article.)  For a given s, some left-shift permutation of s (denoted by t) gives a minimum φ(t) value.  For all s an element of Sl,n, Ml,n is defined to be the maximum of these minimum φ(t) values.  Their Lemma 5 (where the sequence s̃ for which φ attains the value Ml,n is determined) is;

Let n ≤ l be natural numbers.  Let s̃ = ]in/l[ - ](i - 1)/l[ (for 1≤ il).  Then φ(s̃) equals the minimum φ(t) value of  s̃ (equal to Ml,n).

(Due to typographical difficulties, the exact form of this lemma is not duplicated here.)  In the proof of this lemma, Lemma 4 is used and ki=1ti is represented by a staircase.  For example, a staircase forwhere l=27 and n=17 along with a staircase representing the partial sums of [in/l]-[(i-1)/l] where the brackets denote the floor function is;

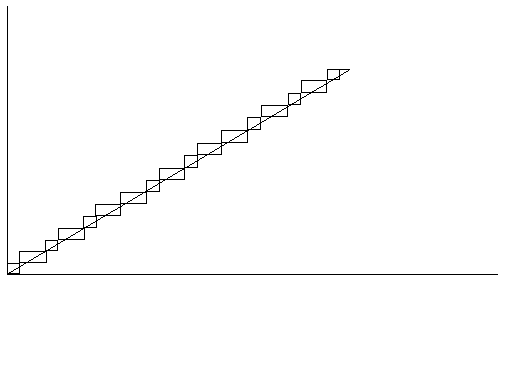

The staircase using the floor function (not used in the proof of Lemma 5) can be viewed as being an upside-down staircase where Halbeisen and Hungerbühler's logic can be used to find a lower bound of the maximum odd element in a Collatz cycle.  Let tj=[jm/l] - [(j-1)m/l], j=1, 2, 3, ..., l.  Let r denote gcd(l, m).  The parity vector ]jm/l[ - ](j-1)m/l[, j=1, 2, 3, ..., l, consists of r identical sub-vectors.  Similarly, the parity vector tj consists of r identical sub-vectors and each of these sub-vectors is the same as the corresponding sub-vector of  ]jm/l[ - ](j-1)m/l[, j=1, 2, 3, ..., l, except for the first and last elements.  First suppose that l and m are relatively prime.   When the parity vector ]jm/l[ - ](j-1)m/l[, j=1, 2, 3, ..., l,  is right-rotated by one position (corresponding to a multiplication by 2), it matches tj except for the first two elements of each sub-vector.  The first mismatch corresponds to a loss of 3m-1 and the second mismatch corresponds to a gain of 2∙3m-1.  In general,  the loss is ∑2i(l/r)3m-1-i(m/r) where the summation is from i=0 to r-1.  Let  Nl,m denote 2Ml,m- ∑2i(l/r)3m-1-i(m/r).  An alternate way of looking at Halbeisen and Hungerbühler's result is;

(2)  If c=|2l-3m| and the elements of the interrelated 3n+c cycles are positive,  Ml,m is greater than or equal to the minimum elements in the interrelated 3n+c cycles (not necessarily primitive) and Nl,m is less than or equal to the maximum odd elements in the interrelated 3n+c cycles.  Analogous results apply if the elements of the cycles are negative.  (The sign of the elements of a cycle in the 3n+c sequence cannot change.  The signs of the elements in interrelated 3n+c cycles are the same [the sign is determined by 2l-3m].)  Also, both Ml,m and Nl,m are in one of these cycles.

All 3n+c cycles appear to be generated from cycles where c=|2l-3m|.  For example, when l=11, and m=7, Ml,m=3767, Nl,m=6805 and |2l-3m|=139.  By Proposition (2), 3767/139 (approximately equal to 27) must be greater than or equal to the minimum element in the c=-1 cycle (17) and 6805/139 (approximately equal to 49) must be less than or equal to the maximum odd element in the c=-1 cycle (91).  For the c=-1 cycle of (5, 7, 10), M3,2=5 and N3,2=7 (-1 equals 23-32).  Note the relevance of the Catalan conjecture (now Mihăilescu's theorem).  For c=-17, the cycles are (85, 119, 170, 85, 119, 170), (103, 146, 73, 101, 143, 206), and (65, 89, 125, 179, 260, 130).  -17 equals 26-34, M6,4=85, and N6,4=119.  85 is greater than 73 and 65. 119 is less than 143 and 179.  The cycle (85, 119, 170) is not primitive and reduces to the c=-1 cycle.  Note that 17 must divide 33+23·3 for this to be possible.  For the c=1 cycle of (4, 1), 1 equals 22-31, and M2,1=N2,1=1.  There can be no other such c=1 cycles.  This leaves the possibility of interrelated 3n+c cycles where one of the cycles is not primitive and reduces to a c=1 cycle.

When l and m are not relatively prime and c=|2l-3m|, the cycles generated from Ml,m are not primitive (due to properties of binomial expansions).  For example, when c=29-36, reducing the cycle generated by M9,6 effectively divides 29-36 by (29-36)/(23-32).  For l=6, 9, 12, 15, 18, ...,  and m=3, 6, 9, 12, 15, ...,  there are 0, 0, 1, 2, 3,  ..., odd cycle elements between Ml,m and Nl,m.  In this case, c, Ml,m, and Nl,m have at least one prime factor in common.  The respective prime factors are 37, 7·31, 13·109, 10177, 78697, ....  The respective c values (after reduction) are 1, -1, -11, -49, -179, ..., and the respective cycles are (1, 2), (5, 7, 10), (19, 23, 29, 38), (65, 73, 85, 103, 130), and (211, 227, 251, 287, 341, 422), ....  Similar results are obtained for other combinations of l and mWhen l and m are relatively prime and c=|2l-3m|, the cycles generated from Ml,m are primitive.

The largest upper bound of minima in potential 3n+c cycles having the same number of even elements can also be easily determined.  An empirical result is;

(3)  Ml,m/|2l-3m|, l=m+k, m=1, 2, 3, ...., increases until the sign of 2l-3m changes and then decreases.  More precisely, the maximum Ml,m/|2l-3m| value occurs immediately before the sign change or at the sign change.

For example, M6,4/|26-34| is greater than M5,3/|25-33|, 25-33 is positive, and 26-34 is negative (the maximum occurs at the sign change).  M8,5/|28-35| is greater than M9,6/|29-36|, 28-35 is positive, and 29-36 is negative (the maximum occurs before the sign change).

The Minimum Element in a 3n+c Cycle and the Continued-Fraction Convergents of Log(3)/Log(2)

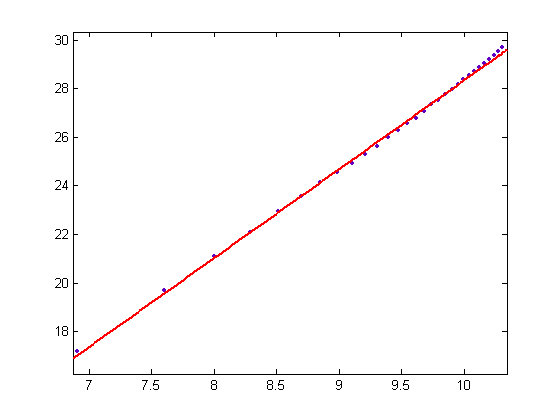

In his 1978 article, Crandall proved a lower bound of 17985 for the number of odd elements in a 3n+1 cycle (n>0) using the minimum in a hypothetical cycle and the continued-fraction convergents of log(3)/log(2).  Recent 3n+1 cycle research frequently involves use of the continued-fraction convergents of log(3)/log(2).  For some purposes, this is too restrictive; valuable information is thrown away.  This is the rationale for defining generalized continued-fraction convergents (allowing less accurate approximations).  Let (c, d), (e, f), and (g, h) denote successive continued-fraction convergents of a real number and let j denote the ceiling of h/f.  (ei, fi) and (ei+c, fi+d), i=1, 2, 3, ..., j, can be considered to be generalized continued-fraction convergents of the real number.  (Sometimes it is convenient to consider just (ei+c, fi+d), i=1, 2, 3, ..., j, to be the generalized continued-fraction convergents of the real number; ei+c and fi+d are then relatively prime.)  The generalized continued-fraction convergents of log(3)/log(2) are (2, 1), (3, 2), (4, 2), (5, 3), (6, 4), (8, 5), (9, 6), (11, 7), (16, 10), (19, 12), (24, 15), (27, 17), (38, 24), (46, 29), (57, 36), (65, 41), (76, 48), (84, 53), ....  An empirical result is;

(4)  The absolute values of 2l-3m increase monotonically for (l, m) values that are generalized continued-fraction convergents of log(3)/log(2) (excluding (2, 1), (4, 2), (6, 4), and (9, 6)).

The significance of this is that for a given c value, there can be at most one solution of c=|2l-3m| where (l, m) are generalized continued-fraction convergents of log(3)/log(2) (excluding (2, 1), (4, 2), (6, 4), and (9, 6)).

An algorithm for generating the lengths and numbers of odd elements of 3n+1 or 3n-1 (n>0) sequences associated with potential cycles having 1-2 sequence vectors almost always gives the generalized continued-fraction convergents of log(3)/log(2) (and only these values).  The algorithm gives four (l, m) values that are not generalized continued-fraction convergents of log(3)/log(2) and four generalized continued-fraction convergents of log(3)/log(2) are not given.    (This algorithm will be discussed in detail later.  See the section "The Minimum in a Collatz Cycle".)  This is more evidence that the generalized continued-fraction convergents of log(3)/log(2) are of significance to the 3n+1 problem.  The continued-fraction convergents of log(3)/log(2) will be further generalized in the next section.

M-Cycles and an Algorithm for Determining When the Sign of 2l-3m for a Fixed l-m Value Changes

A cycle with no even elements can occur only if (3/2)i(n+c)-c=n where n is odd, i<h, and 2h is the largest power of 2 that divides n+c ((3/2)i(n+c)-c is an incomplete jump).  The only primitive cycle with no even elements is the cycle {-1} for c=1 (where c=-n).  An m-cycle is a hypothetical cycle in the 3n+1 sequence (n>0) having m local minima.  (In this article, such cycles in the 3n+c sequence will be referred to as being M-cycles.)  In 1977, R. P. Steiner7 proved that 1-cycles can't exist.  A jump in the 3n+c sequence ending in the initial odd element is analogous to a 1-cycle (there would be exactly one even element in the cycle).  Empirical results are;

(5)  A cycle in the 3n+c sequence having only one even element can occur only if c=|2l-3l-1|.

(6)  A cycle in the 3n+c sequence having only one odd element can occur only if c=|2l-3|.

A successor of a, a>0, in the 3n+c sequence is greater than a if 3ma>2la-cA (that is, 3m/2l>1-cA/(2la)) where the values of l, m, and the integer A depend on the parity vector between a and the successor of a.  For a sufficiently large a, the successor of a is larger than a if 3m/2l>1.  For a sufficiently large initial sequence value a, the following algorithm generates the parity vector (denoted by p) of a 3n+c sequence (with positive elements) where twice the minimum element in the sequence is larger than the maximum odd element in the sequence.  Set x to 1, p1 to 1, and i to 2.  Then repeat the following operations.  Set pi to 1, x to (3/2)x, and increment i.  If x>1, set pi to 0, x to (1/2)x, and increment i.  The resulting parity vector is 1, 1, 0, 1, 0, 1, 1, 0, 1, 1, 0, 1, 0, 1, 1, 0, 1, 1, 0, 1, 0, ....  The portion of the parity vector up to the Mth 0 gives an M-cycle.  (The first 1 in the parity vector is taken to follow the 0 so that a cycle is formed.)  The resulting (l, m) values (where l is the number of elements in the cycle and m is the number of odd elements) for the M-cycles are (3, 2), (5, 3), (8, 5), (11, 7), (13, 8), (16, 10), (19, 12), (21, 13), (24, 15), (27, 17), (30, 19), (32, 20), (35, 22), (38, 24), (40, 25), (43, 27), (46, 29), (49, 31), (51, 32), (54, 34), (57, 36), (59, 37), (62, 39), (65, 41), (68, 43), (70, 44), (73, 46), (76, 48), (78, 49), (81, 51), (84, 53), ....  Empirical results are;

(7)  These (l, m) values include the generalized continued-fraction convergents of log(3)/log(2) (except for (2, 1), (4, 2), (6, 4), and (9, 6)).  Also, 2m>l.

(8)  The difference in l values of a pair of successive M-cycles is 2 or 3 and the difference in m values is 1 or 2 respectively.

(9)  There are either 3 or 4 successive M-cycles where the difference in l values is 3 (2l-3m is negative for the third or fourth M-cycle and positive otherwise).

(10)  When there are 4 successive M-cycles where the difference in l values is 3, the values of  Ml,m/|2l-3m| increase up until the third M-cycle and then decrease.  The absolute values of 2l-3m usually increase, but may decrease for the third M-cycle.  When there are 3 successive M-cycles where the difference in l values is 3, the values of Ml,m/|2l-3m| usually increase, but may decrease for the third M-cycle.  The absolute values of 2l-3m usually increase, but may decrease for the third M-cycle (but only if the value of Ml,m/|2l-3m| increases).  After the third or fourth successive M-cycle where the difference in l values is 3, the value of Ml,m/|2l-3m| decreases and the absolute value of 2l-3m increases (the difference in l values is 2).

(11)  There are no successive M-cycles where the difference in l values is 2.

A table of the ]jm/l[ -](j-1)m/l[, j=1, 2, 3, ..., l, values (given in the columns) for (l, m)=(3, 2), (5, 3), (8, 5), ..., (103, 65) is;

 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
   1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
   0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
     0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
     1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
     0 1 0 0 1 0 0 1 1 0 1 1 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
       0 1 1 0 1 1 0 0 1 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
       1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
       0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
	 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
	 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
	   0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
	   1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
	   0 1 0 0 1 1 0 1 1 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
	     0 1 1 0 0 1 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
	     1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
	     0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0
	       1 1 1 0 1 1 1 1 1 1 0 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 1 1 1 1 1
	       0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
		 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
		 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
		 0 1 1 0 1 1 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
		   0 0 1 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
		   1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
		   0 1 0 0 1 0 0 1 1 0 0 1 0 0 1 1 0 1 1 0 0 1 0 0 1 1 0 1 1
		     0 1 1 0 1 1 0 0 1 1 0 1 1 0 0 1 0 0 1 1 0 1 1 0 0 1 0 0
		     1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
		     0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
		       1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
		       0 1 1 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
			 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
			 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
			 0 1 0 0 1 1 0 1 1 0 1 1 1 0 1 1 0 1 1 0 1 1 1 1 1 1
			   0 1 1 0 0 1 0 0 1 0 0 0 1 0 0 1 0 0 1 0 0 0 0 0 0
			   1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
			   0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0
			     1 1 1 0 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 1 1 1 1 1
			     0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
			       0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
			       1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
			       0 1 1 0 1 1 0 1 1 1 1 1 1 1 1 1 0 1 1 1 1 1 1
				 0 0 1 0 0 1 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0
				 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
				 0 1 0 0 1 0 0 1 1 0 0 1 0 0 1 0 0 0 1 0 0 1
				   0 1 1 0 1 1 0 0 1 1 0 1 1 0 1 1 1 0 1 1 0
				   1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
				   0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
				     1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
				     0 1 1 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
				       0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
				       1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
				       0 1 0 0 1 1 0 1 1 0 0 1 0 0 1 1 0 1 1
					 0 1 1 0 0 1 0 0 1 1 0 1 1 0 0 1 0 0
					 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
					 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0
					   1 1 1 0 1 1 1 1 1 1 1 1 1 1 1 1 1
					   0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
					     0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
					     1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
					     0 1 1 0 1 1 0 1 1 0 1 1 1 0 1 1
					       0 0 1 0 0 1 0 0 1 0 0 0 1 0 0
					       1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
					       0 1 0 0 1 0 0 1 0 0 0 1 0 0 1
						 0 1 1 0 1 1 0 1 1 1 0 1 1 0
						 1 1 1 1 1 1 1 1 1 1 1 1 1 1
						 0 0 0 0 0 0 0 0 0 0 0 0 0 0
						   1 1 1 1 1 1 1 1 1 1 1 1 1
						   0 1 1 0 1 1 0 1 1 1 1 1 1
						     0 0 1 0 0 1 0 0 0 0 0 0
						     1 1 1 1 1 1 1 1 1 1 1 1
						     0 1 0 0 1 0 0 1 1 0 0 1
						       0 1 1 0 1 1 0 0 1 1 0
						       1 1 1 1 1 1 1 1 1 1 1
						       0 0 0 0 0 0 0 0 0 0 0
							 1 1 1 1 1 1 1 1 1 1
							 0 1 1 0 1 1 1 1 1 1
							   0 0 1 0 0 0 0 0 0
							   1 1 1 1 1 1 1 1 1
							   0 1 0 0 1 1 0 1 1
							     0 1 1 0 0 1 0 0
							     1 1 1 1 1 1 1 1
							     0 0 0 0 1 0 0 1
							       1 1 1 0 1 1 0
							       0 1 1 1 1 1 1
								 0 0 0 0 0 0
								 1 1 1 1 1 1
								 0 1 1 0 1 1
								   0 0 1 0 0
								   1 1 1 1 1
								   0 1 0 0 1
								     0 1 1 0
								     1 1 1 1
								     0 0 0 0
								       1 1 1
								       0 1 1
									 0 0
									 1 1
								         0 1
									   0
									   1
									   0

Note that there are rows of values consisting of all 0's, rows of values consisting of all 1's, rows of values consisting of all 1's except for an initial value of 0, and pairs of adjacent rows of values where the element-by-element sum consists of all 1's (disregarding the first element of the first row).  The elements in one of these pairs of adjacent rows appear to become all 0's or 1's eventually.  Let qj-1=]jm1/l1[ - ](j-1)m1/l1[, j=2, 3, 4, ..., l1, where (l1, m1) is a generalized continued-fraction convergent of log(3)/log(2), gcd(l1, m1)=1, and (l1, m1)≥(11, 7).  Let l2, l2<l1, denote the number of elements in an M-cycle generated from the parity vector p and let rj=qj, j=1, 2, 3, ..., l2.  If l2 is the last of a succession of l values having a difference of 3, switch the last two elements of r.  An empirical result is;

(12)  A rotation of r matches the first l2 elements of the parity vector p (usually, a right-rotation of 3 suffices).

The absolute values of 2l-3m where (l, m) are multiples of a continued-fraction convergent (as usually defined) of log(3)/log(2) increase monotonically since the values of Ml,m/|2l-3m| are the same.  Truncated Ml,m/(2l-3m) values corresponding to the generalized continued-fraction convergents of log(3)/log(2) (excluding the multiples of convergents) are;

l=2, m=1, 1
l
=3, m=2, -5
l
=5, m=3, 4
l=8, m=5, 24
l=11, m=7, -27
l=19, m=12, -219
l=27, m=17, 108
l=46, m=29, 281
l=65, m=41, 867
l=84, m=53, -6143
l=149, m=94, 2419
l=233, m=147, 4862
l=317, m=200, 9266
l=401, m=253, 19584
l=485, m=306, 75028
l=569, m=359, -81063
l=1054, m=665, -3664765
l=1539, m=971, 72058
.
.
.

The initial difference between successive (l, m) values is (1, 1).  After the 2l-3m values change signs, the difference between successive (l, m) values becomes (2, 1) (the (l, m) value immediately before the sign change).  After the 2l-3m values change signs again, the difference between successive (l, m) values becomes (3, 2) (the (l, m) value immediately before the sign change), etc.  Note that the Ml,m/|2l-3m| values increase until the sign changes.

Empirical results (showing why the parity vector p is of importance) are;

(13)  If the maximum Ml,m/|2l-3m|, l=m+k, m=1, 2, 3, ..., value occurs immediately before the sign change of 2l-3m, then the (l, m) value is that of an M-cycle generated from the parity vector p.

(14)  If the maximum Ml,m/|2l-3m|, l=m+k, m=1, 2, 3, ..., value occurs at the sign change of 2l-3m and the (l, m) value is not that of an M-cycle generated from the parity vector p, then the (l-1, m-1) value is that of an M-cycle generated from p.

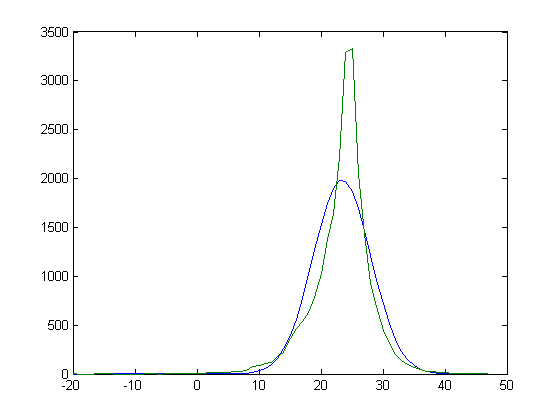

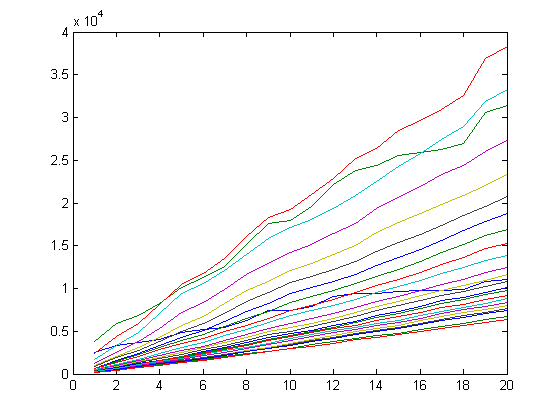

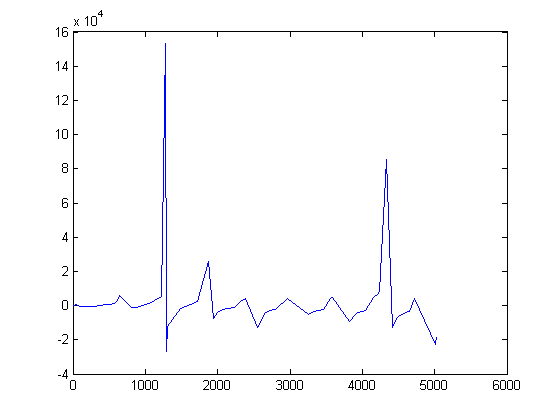

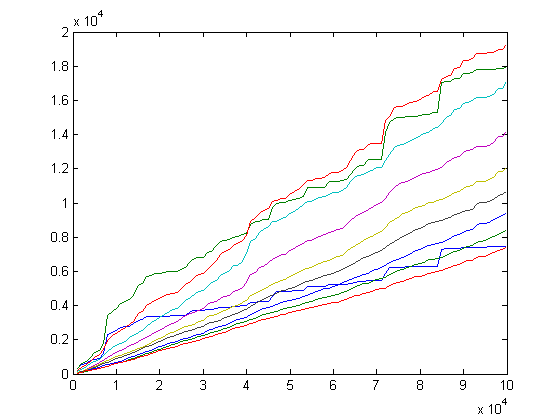

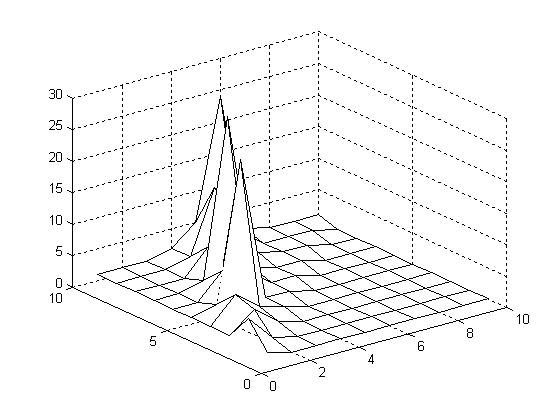

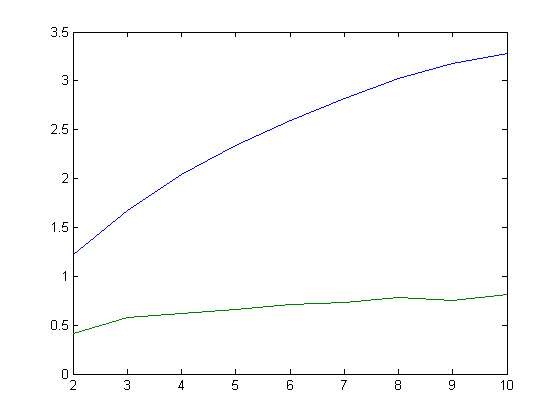

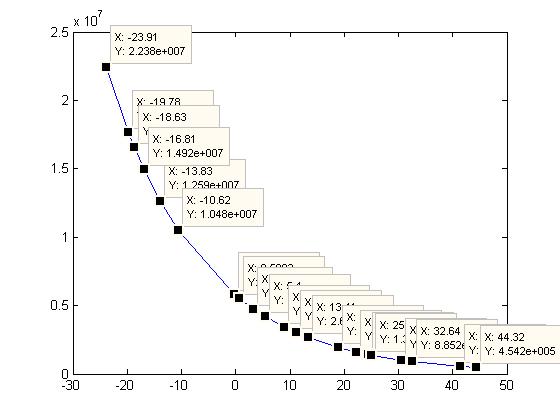

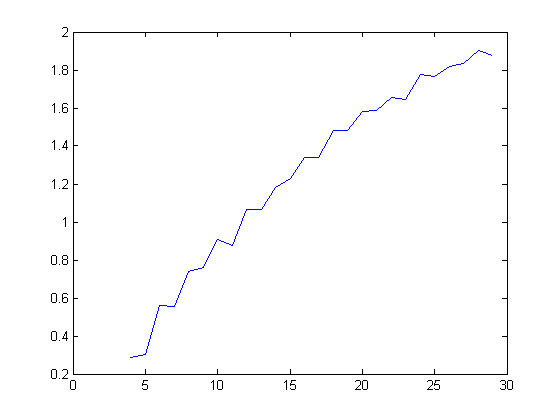

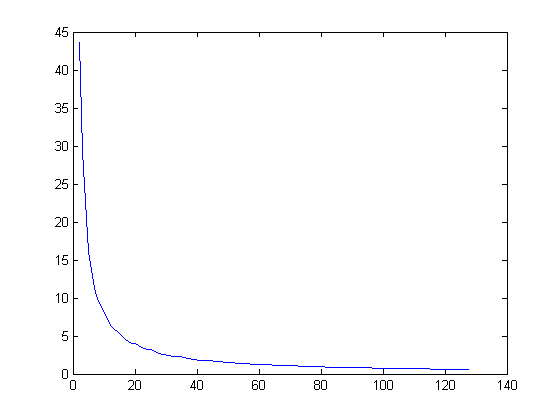

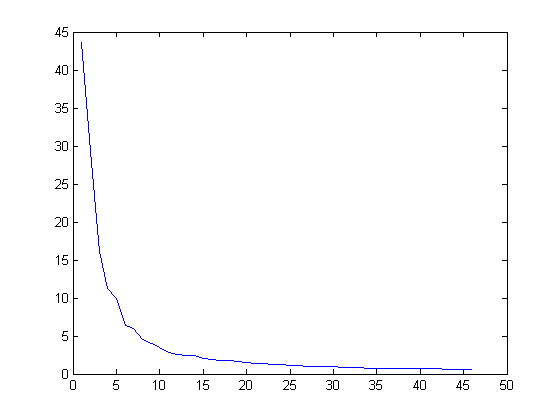

A graph of Ml,m/|2l-3m|, l=m+k, m=1, 2, 3, ..., 10 and k=1, 2, 3, ..., 10 is;

Let k1 denote the difference between the l and m values of a generalized continued-fraction convergent of log(3)/log(2) where l and m are relatively prime.  Let k2 denote the difference between the l and m values of the next generalized continued-fraction convergent of log(3)/log(2) where gcd(l, m)=1 and denote Ml,m/|2l-3m| for this (l, m) value by min2.  An empirical result is;

(15)  The Ml,m/|2l-3m| values where k1<l-m<k2 are less than min2 except possibly when (l, m) is a generalized continued-fraction convergent of log(3)/log(2) where gcd(l, m)≠1.

For example, (149, 94) is a generalized continued-fraction convergent of log(3)/log(2) where gcd(l, m)=1 and in this case k1=55 and Ml,m/|2l-3m|=2419.  For the next generalized continued-fraction convergent of log(3)/log(2) where gcd(l, m)=1 ((233, 147)), k2=86, and Ml,m/|2l-3m|=4862.  For k=55, 56, 57, ..., 86, the largest Ml,m/|2l-3m| values occur for (l, m)=(149, 94), (152, 96), (154, 97), (157, 99), (160, 101), (163, 103), (165, 104), (168, 106), (171, 108), (173, 109), (176, 111), (179, 113), (182, 115), (184, 116), (187, 118), (190, 120), (192, 121), (195, 123), (198, 125), (201, 127), (203, 128), (206, 130), (209, 132), (211, 133), (214, 135), (217, 137), (219, 138), (222, 140), (225, 142), (228, 144), (230, 145), and (233, 147) respectively and the Ml,m/|2l-3m| values (truncated) are 2419, 219, 130, 388, 433, 142, 220, 6143, 219, 158, 558, 390, 147, 281, 1605, 219, 191, 867, 361, 152, 356, 1004, 219, 231, 1561, 340, 175, 463, 763, 219, 281, and 4862 respectively.  The only Ml,m/|2l-3m| value larger than 4862 (6143) occurs when (l, m)=(168, 106), a generalized continued-fraction convergent of log(3)/log(2) where gcd(l, m)≠1.

Upper bounds of minima in 3n+c cycles can then be determined using the generalized continued-fraction convergents of log(3)/log(2).

Miscellaneous Properties of Minima in 3n+c Cycles

When the element following an odd element i in the 3n+c sequence is defined to be (3i+c)/2 instead of 3i+c, 1-2 sequence vectors become 0-1 sequence vectors.  Note that 2m must be greater than l for there to be any cycles having 0-1 sequence vectors.  For example, when l=11 and m=7, the parity vectors of cycles having 0-1 sequence vectors are (1, 0, 1, 0, 1, 0, 1, 1, 0, 1, 1), (1, 1, 0, 1, 1, 0, 1, 0, 1, 1, 0), (1, 0, 1, 0, 1, 1, 0, 1, 0, 1, 1), (1, 0, 1, 1, 0, 1, 0, 1, 0, 1, 1), and (1, 1, 0, 1, 0, 1, 0, 1, 0, 1, 1) (corresponding to primitive cycles for c=139).  The 3n+139 cycle corresponding to the second parity vector is {-4151, -6157, -9166, -4583, -6805, -10138, -5069, -7534, -3767, -5581, -8302} and twice the largest element in the cycle (-3767) is greater than the smallest odd element (-6805).   In the other interrelated 3n+139 cycles having 0-1 sequence vectors, twice the largest element in a cycle is not greater than the smallest odd element in the cycle.  Let min denote the element of a cycle in the 3n+c sequence having the smallest absolute value and let max denote the odd element having the largest absolute value.  More empirical results are;

(16)  If c=|2l-3m| and 2m>l, there is at least one primitive cycle having a 0-1 sequence vector and there are usually primitive cycles not having 0-1 sequence vectors.  If c=|2l-3m|, 2m>l, and the greatest common divisor of l and m is 1, there is at least one cycle among the interrelated primitive cycles having 0-1 sequence vectors where 2|min|>|max| (there is no cycle among the interrelated primitive cycles not having 0-1 sequence vectors where 2|min|>|max|).  If c=|2l-3m|, 2m<l, and gcd(l, m)=1, there is at least one cycle among the interrelated primitive cycles where 2|min|>|max|.

(17)  2|min|>|max| for a primitive 3n+c cycle where gcd(l, m)=1 only if c=|2l-3m|.

Usually, if c=|2l-3m|, 2m>l, and gcd(l, m)=1, there is exactly one cycle among the interrelated primitive cycles having 0-1 sequence vectors where 2|min|>|max|.  When c=1675, l=9, and m=7, there are two primitive cycles where 2|min|>|max|.  For one of these cycles, min=-2219, max=-4429, and 2|min| is barely greater than |max| (min=-2363 and max=-3997 for the other cycle).  Usually, if c=|2l-3m|, 2m>l, and gcd(l, m)≠1, there is at least one cycle among the interrelated primitive cycles having 0-1 sequence vectors where 2|min|>|max|.  When c=9823, l=14, and m=8, there doesn't appear to be a primitive cycle where 2|min|>|max|.  If c=|2l-3m|, 2m<l, and gcd(l, m)=1, there appears to be exactly one cycle among the interrelated primitive cycles where 2|min|>|max|.  If c=|2l-3m|, 2m<l, and gcd(l, m)≠1, there doesn't appear to be a primitive cycle where 2|min|>|max|.  Usually, if a primitive 3n+c cycle where c properly divides 2l-3m exists and gcd(l, m)≠1, then 2|min| is not greater than |max|.  When c=145, l=12, and m=8, min=-617, max=-1231, and 2|min| is barely greater than |max|.  Also, when c=493, l=12, and m=8, min=-1829, max=-3635, and 2|min| is barely greater than |max|.

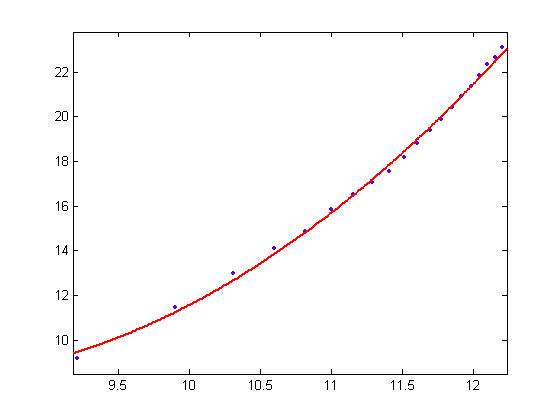

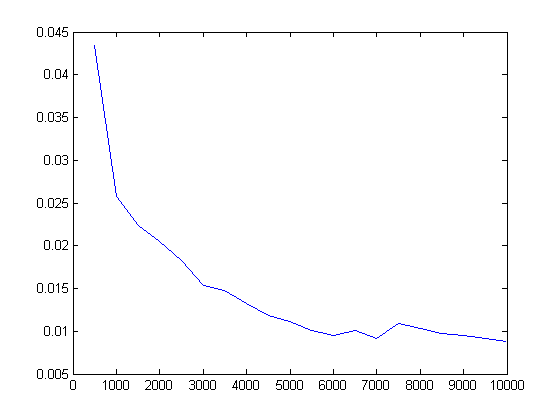

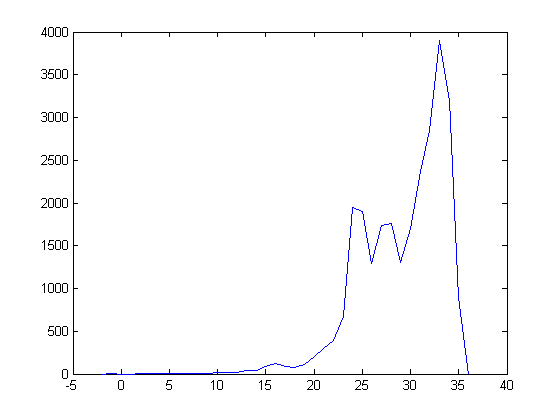

A graph of the proportions of 3n+c cycles having 0-1 sequence vectors for c less than or equal to 499, 997, 1499, 1999, ..., 9997 is;

More on m-Cycles

Let K denote the number of odd elements in a 3n+1 cycle (n>0) and L the number of even elements.  In 2004, Simons8 proved that if a nontrivial 2-cycle exists, then (K+L, K) must be a convergent in the continued-fraction expansion of log2 3.  Let δ denote log(3)/log(2).  Using an empirically derived lower bound for the minimum element in an m-cycle, Simons and de Weger9 proved that δK<K+L<1.000001δK.  As shown above, 3n+c cycles with large elements and having a constrained dynamic range behave similarly, that is, the (K+L, K) values include the generalized continued-fraction convergents of log(3)/log(2).  This will be discussed in more detail in following sections.

Characterization of Cycles in the 3n+c Sequence

Attachment points in a cycle are defined to be even integers i such that i-c is divisible by 3 (and (i-c)/3 is not already in the cycle).  An attachment point i will be said to be primary if 4i is not an attachment point.  If i is a primary attachment point and 4 divides i, then i/4 will be said to be the secondary attachment point, etc.  In the cycle for c=1, -68 is the only attachment point.  (There are no attachment points in the other known 3n+1 cycles.)  In the following, 3n+c sequences are extended backwards from attachment points.  "Odd" paths are taken, that is, if i is an even integer in the extended sequence and 3 divides i-c, then the path (i-c)/3 (and not 2i) is taken.  Presumably, an odd integer divisible by 3 (denoted by t) will be reached.  The t value of a primary attachment point will be said to be the "proxy" of the first odd element in the cycle after the preceding primary attachment point (in the case where there is only one primary attachment point, the preceding primary attachment point is the primary attachment point).  (Note that the sequence vector of the cycle elements starting with the first odd element after the preceding primary attachment point and ending with the primary attachment point is a 0-1 sequence vector; this is the motivation for taking "odd" paths when extending sequences backwards from attachment points.  For the c=1 cycle, t equals -21 and is the proxy of the cycle element -17.)  As will be shown, the proxy concept allows a simplified description of  3n+c cycles with attachment points.  The extended sequences have many properties and, unlike Bohm and Sontacchi's formula, are amenable to Diophantine analysis.  Cycles with at least one attachment point will be considered in this section and the next seventeen sections (cycles with no attachment points will be discussed at the end of the article).  An empirical result is;

(18)  There exists at least one primitive 3n+c cycle having an attachment point for every c value.

Let u denote the first odd element in a 3n+c cycle after a primary attachment point.  In this article, the average of the |u| values and the absolute values of their proxies is used to characterize a 3n+c cycle.  Let a denote the number of primary attachment points in a cycle.  When a>0, the average of the |u| values and the absolute values of their proxies will be taken to be the maximum likelihood estimator for the parameter λ of an exponential probability distribution (f(x; λ)=λe-λx, x≥0).  The function g(x)=λe-λx where positive and negative x values are allowed will be used to compute the domain of the absolute values of the u values and the absolute values of their proxies.  The domain of the absolute values of the u values and the absolute values of their proxies is determined by -log(|u1|/λ)/λ, -log(|t1|/λ)/λ, -log(|u2|/λ)/λ, -log(|t2|/λ)/λ, -log(|u3|/λ)/λ, -log(|t3|/λ)/λ, ..., -log(|ua|/λ)/λ, -log(|ta|/λ)/λ.  For example, the (u, t) values for a cycle for c=121 are (19, -9), (395, 51), (65, 39), (119, 183), (335, 147), (281, 27), (101, -237), (53, -63), (35, 21), and (23, -159).  A plot of the |u| and |t| values versus their domain is;

(The x values have been scaled up by a factor of 104 and all but two data points are shown.  No shape-preserving interpolation of the data points is done.)  Note that all the u and t values in a cycle are distinct (although two t values can have the same absolute value).  The domain of the absolute values of the u values and the absolute values of their proxies appears to be a small interval about zero, the largest x value usually being larger than the absolute value of the smallest x value (so that the maximum |u| or |t| value times the minimum |u| or |t| value is usually less than λ2).  Let utmax denote the maximum |u| or |t| value in a cycle and utmin the minimum |u| or |t| value.  An empirical result (based on the 663743 cycles for the c values less than or equal to 199999) is;

(19)  utmaxutmin2 is almost always less than δ.

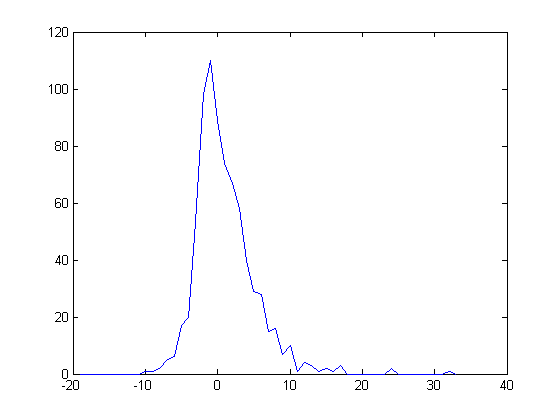

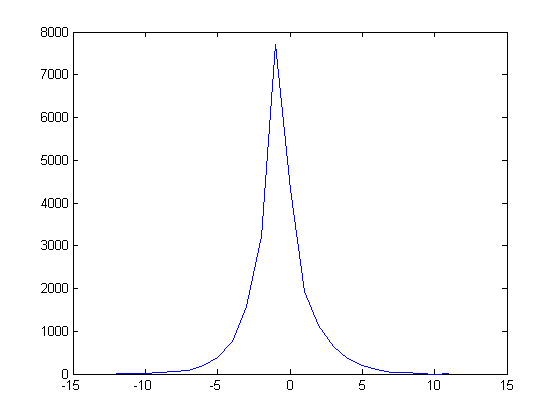

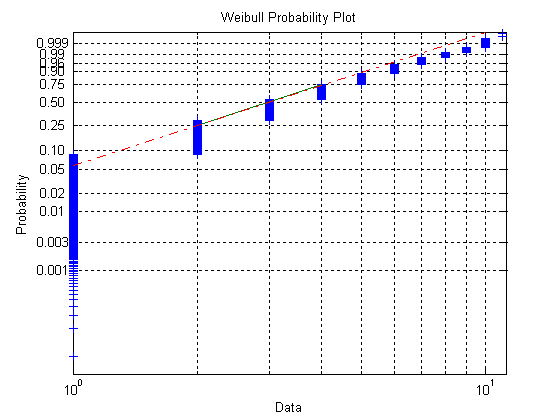

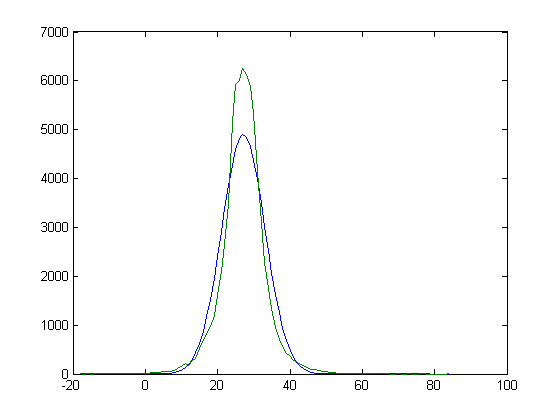

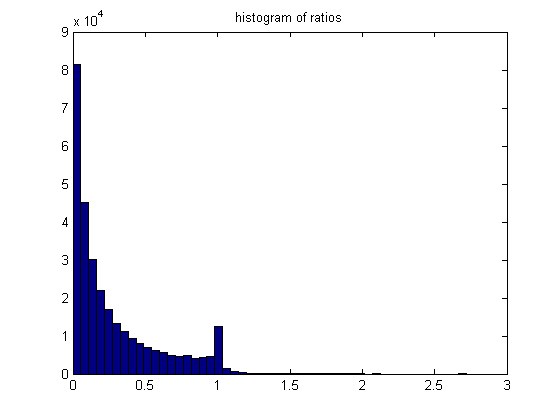

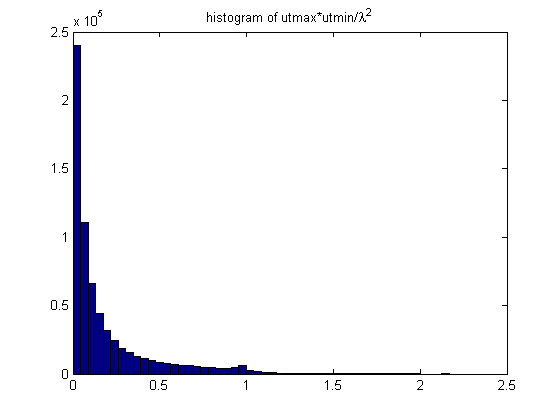

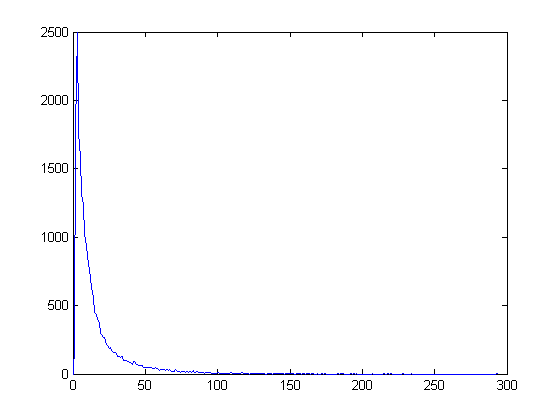

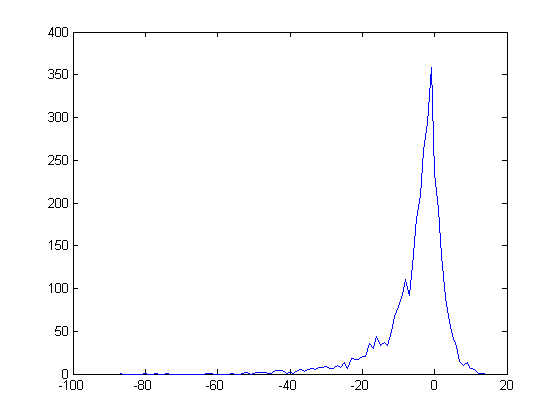

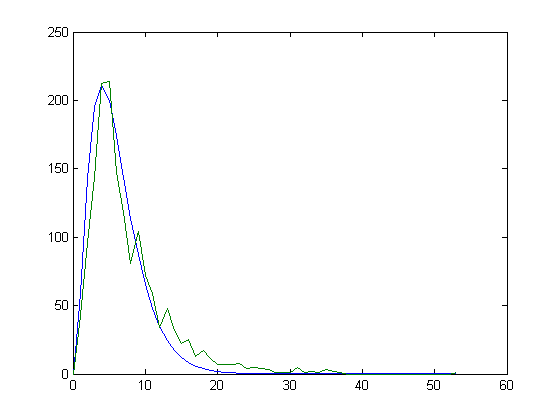

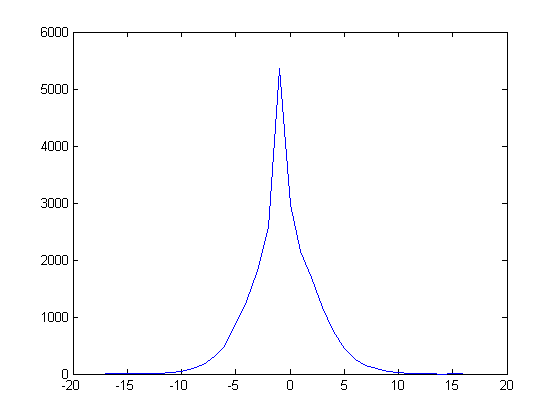

A histogram of the utmaxutmin2 values for the cycles where c≤199999 is;

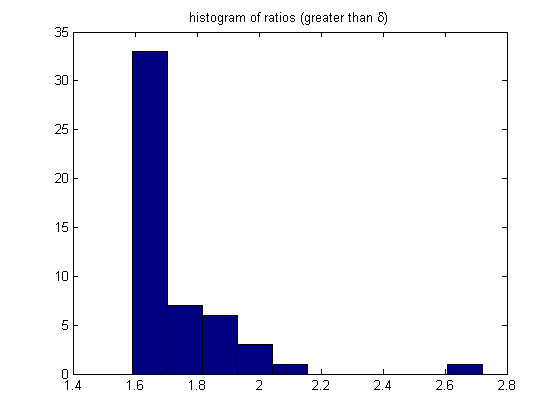

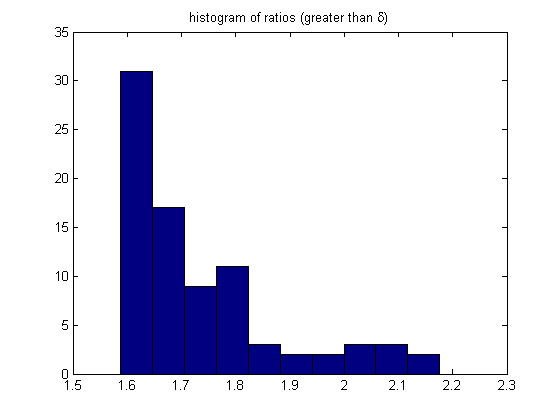

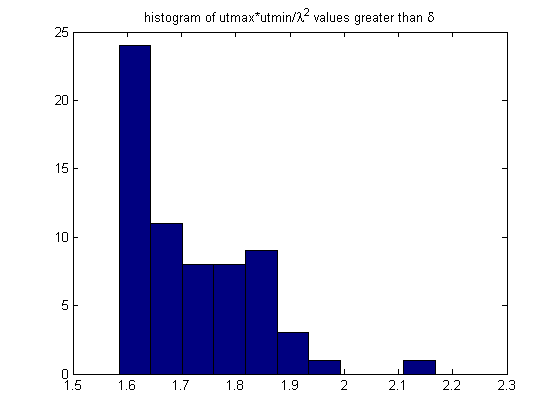

Fifty bins are used.  A histogram of the 65 values greater than δ is;

Ten bins are used.  The maximum value is 2.1673 (less than δ2).  The a values of these cycles are small (less than or equal to 28) and the |L-K| values are relatively small.  In fourteen of these cycles, L=K.  Also, 2KL if L>K and 2L>K if L<K.  The rationale for including the absolute values of the proxies in the average is that they appear to have the same exponential curve as the |u| values.  Of course, |u| values are local minima and their average is related to the minimum in a cycle.

Belaga10 proved that if 2l-3k>0 where l is the length of and k is the number of odd elements in a 3x+d cycle (x>0), then 1 ≤ n < d/(2l/k-3) where n is the smallest odd element in the cycle.  Let  umax denote the largest |u| value in a cycle and umin the smallest |u| value.  Let tmax denote the largest |t| value in a cycle and tmin the smallest |t| value.  Empirical results (based on the cycles where c≤199999) are;

(20)  If L<K, 2c/utmin>|2(K+L)/K-3|.  If LK, c/utmin>|2(K+L)/K-3|.  If L<K, 3c/umin>|2(K+L)/K-3|.  If L≥K, c/umin>|2(K+L)/K-3|.

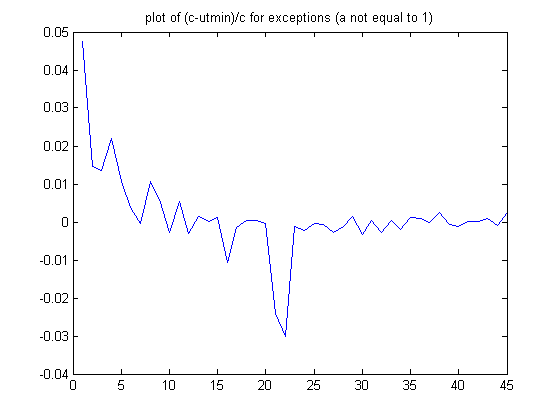

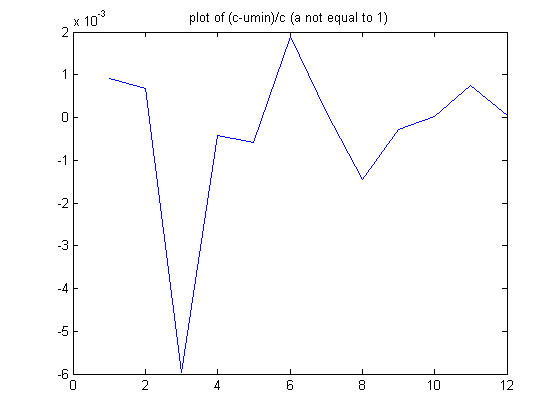

(21)  |1-c/utmin|, |1-c/umin|, and |1-c/tmin| are usually greater than |2(K+L)/K-3|.

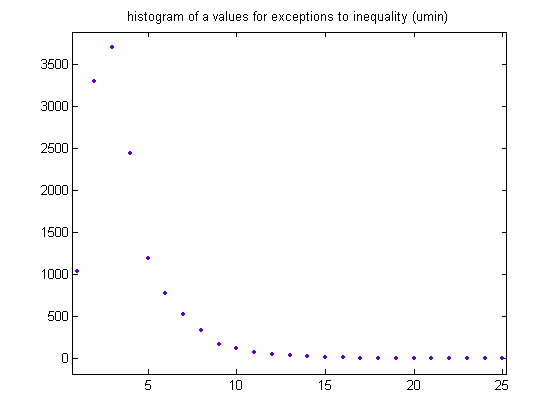

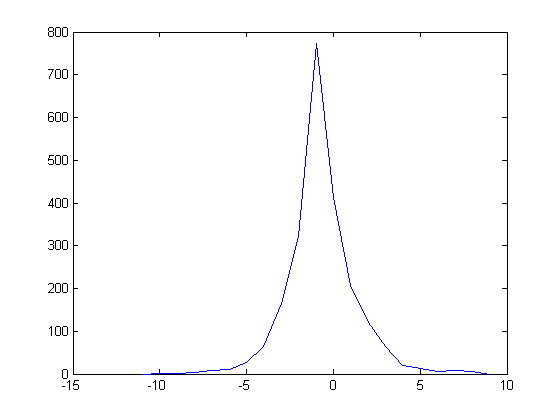

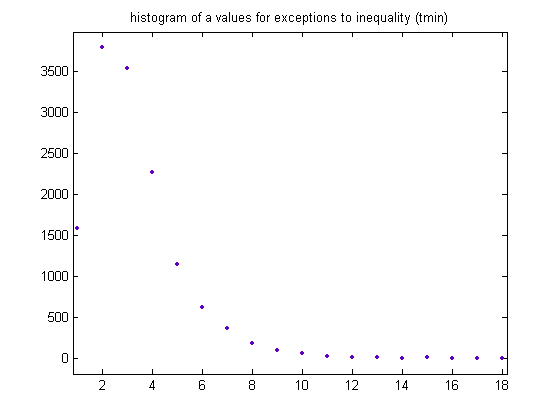

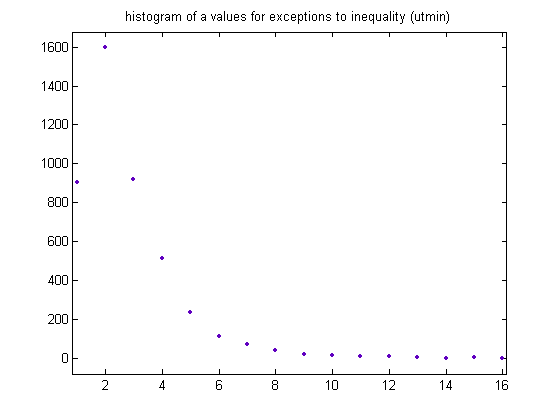

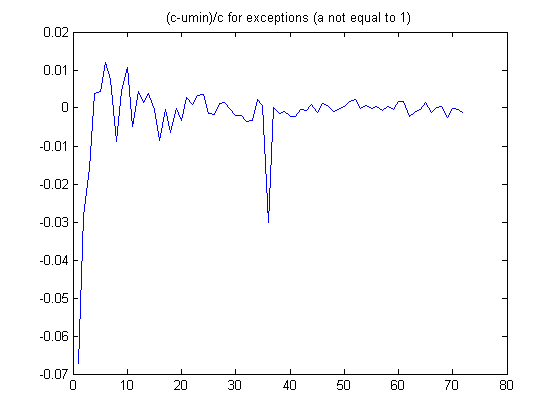

A histogram of the a values for the 4458 exceptions for utmin is;

The largest
a value is 15.  A histogram of the a values for the 13811 exceptions for umin
is;

The largest
a value is 30.  A histogram of the a values for the 13698 exceptions for tmin
is;

The largest
a value is 17.  The respective percentages of exceptions for utmin
, umin, and tmin are 0.67%, 2.08%, and 2.06%.  The expressions "1+c/X0" and "|1-c/X0|" where X0 is a lower bound of the minimum in an m-cycle  are relevant to Simons and de Weger's work.  An empirical result (based on the 27041 cycles having the (K+L, K) value of an M-cycle generated from the parity vector p for c less than or equal to 199999) is;

(22)
  If the (K+L, K) value of a cycle equals that of an M-cycle generated from the parity vector p, |1-c/utmin| and |1-c/tmin| are almost always greater than |2(K+L)/K-3|.  If the (K+L, K) value of a cycle equals that of an M-cycle generated from the parity vector p, |1-c/umin| is greater than |2(K+L)/K-3|.

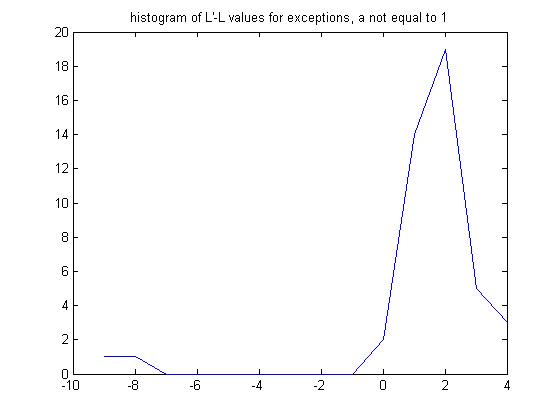

The (c, L, K, a) values for the exceptions (for utmin and tmin) are (1631, 5, 8, 2), (36791, 15, 25, 3), (36791, 15, 25, 4), and (186793, 9, 15, 2).   Empirical results (based on the cycles having the (K+L, K) value of an M-cycle generated from the parity vector p for c less than or equal to 199999) are;

(23)  If the (K+L, K) value of a cycle equals that of an M-cycle generated from the parity vector p, utmax is greater than cNK+L,K/|2K+L-3K|/6 and utmin is less than cMK+L,K/|2K+L-3K|.

(24)  If the (K+L, K) value of a cycle equals that of an M-cycle generated from the parity vector p, δ2a+14>utmax/utmin.

(The latter proposition may fail for very large upper bounds of c values.)

Let i denote the smallest power of δ such that δi>utmax/utmin.  A histogram of the i-2a values of the cycles having (K+L, K) values equal to those of M-cycles generated from the parity vector p for c less than or equal to 997 is;

This distribution has a mean, standard deviation, and sample size of -1.1163, 2.3629, and 301 respectively.  A histogram of the i-2a values of the cycles having (K+L, K) values equal to those of M-cycles generated from the parity vector p for c=7153 is;

This distribution has a mean, standard deviation, and sample size of -0.6905, 1.3898, and 2843 respectively.  A histogram of the i-2a values of the cycles having (K+L, K) values equal to those of M-cycles generated from the parity vector p for c less than or equal to 49999 is;

This distribution has a mean, standard deviation, and sample size of -1.3532, 2.4842, and 9332 respectively.  A histogram of the i-2a values of the cycles having (K+L, K) values equal to those of M-cycles generated from the parity vector p for c less than or equal to 99997 is;

This distribution has a mean, standard deviation, and sample size of -1.4960, 2.6018, and 14663 respectively.  For c upper bounds of 19999, 39997, 59999, 79999, 99997, 119999, 139999, 159997, 179999, and 199999, the distributions have respective means of -1.1470, -1.3009, -1.3818, -1.4450, -1.4960, -1.5158, -1.4805, -1.5319, -1.6246, and -1.4388, respective standard deviations of 2.3157, 2.4634, 2.5125, 2.5437, 2.6018, 2.6466, 2.6293, 2.6861, 2.7751, and 2.5766, and respective sample sizes of 5811, 7604, 9629, 14365, 14663, 14704, 15672, 15919, 16443, and 27041.  The standard deviation generally increases as the c upper bound increases, but in an irregular fashion.  When c=185357, the distribution has a mean, standard deviation, and sample size of -1.4773, 2.3212, and 6321 respectively.  When c=186793, the distribution has a mean, standard deviation, and sample size of -0.5107, 1.5784, and 4161 respectively.  For a c value having a large sample size, the standard deviation of the distribution is generally smaller than that of the composite distribution.

Let i denote the smallest power of δ such that δi>utmax/utmin.  A table of the number of i values for given a values of the 3n+c cycles for c less than or equal to 99997 is;
      a=1    2	  3    4    5	 6    7    8	9   10	11  12	13  14	15  16	17  18	19  20	21  22	23  24
i=1  3423  253	  5    0    0	 0    0    0	0    0	 0   0	 0   0	 0   0	 0   0	 0   0	 0   0	 0   0
  2  1845 1858	182   29    8	 0    0    0	0    0	 0   0	 0   0	 0   0	 0   0	 0   0	 0   0	 0   0
  3  1003 4035 1254  254   45	 8    2    1	0    0	 0   0	 0   0	 0   0	 0   0	 0   0	 0   0	 0   0
  4   428 3412 2103  791  213	59   28    4	0    1	 0   0	 0   0	 0   0	 0   0	 0   0	 0   0	 0   0
  5   267 2542 3113 1688  689  256  101   29   13    6	 0   1	 0   0	 0   0	 0   0	 0   0	 0   0	 0   0
  6   145 1829 3082 2322 1389  707  332  153   74   44	22  10	 5   2	 1   0	 0   0	 0   0	 0   0	 0   0
  7   103 1245 2546 2579 1919 1242  726  452  294  161	86  70	37  13	10   5	 6   4	 1   0	 0   0	 0   0
  8    66  886 2149 2488 2066 1539 1183  851  592  363 306 166 125  76	47  39	24  14	13   8	 7   3	 4   2
  9    45  602 1590 2012 1968 1770 1461 1089  913  703 516 410 252 212 161 132	99  80	49  35	34  18	12  13
 10    25  397 1161 1592 1662 1625 1526 1335 1051  914 775 590 482 389 332 257 210 173 146 118	81  88	80  61
 11    31  297	726 1116 1340 1345 1310 1250 1206 1048 893 735 641 543 485 393 331 311 267 217 215 156 134 121
 12    13  193	483  782  943 1081 1140 1117 1041  923 932 755 704 634 551 518 494 423 411 283 308 294 257 220
 13    11  139	326  505  661  750  869  856  866  815 802 727 696 609 603 534 552 521 442 455 379 381 321 287
 14	8   96	193  324  448  596  616  700  697  696 664 626 609 602 552 547 523 494 501 397 402 423 355 363
 15	6   49	135  222  318  368  462  501  506  503 519 474 473 491 489 524 485 479 413 412 435 409 334 369
 16	7   43	 78  127  197  261  320  343  363  372 419 397 410 411 388 417 417 386 400 362 370 355 349 305
 17	4   18	 67   95  123  151  205  229  232  283 260 264 276 322 309 313 318 316 312 290 315 309 298 255
 18	3   10	 34   58   66  117  136  164  178  185 200 216 214 217 216 227 264 257 260 261 229 234 234 259
 19	1    6	 17   36   59	62   82   90  124  141 131 134 153 138 155 158 169 172 178 208 193 185 185 167
 20	2    8	 15   23   34	54   54   92   65   64	88  93 103 115 129 134 138 138 152 160 127 146 131 129
 21	1    1	 10   22   26	29   38   43   63   49	65  98	76  74 106  96	92 110 111 114 101 110 105 115
 22	2    4	  5    5   10	26   25   34   42   44	44  58	55  65	64  62	70  65	74  72	75  68	75  70
 23	0    2	  1    7   14	 6   17   19   18   21	33  32	36  29	40  42	41  53	48  56	57  55	51  65
 24	0    0	  1    5    4	 6    8    9   12   18	16  24	21  28	21  30	25  40	26  42	36  38	22  37
 25	1    0	  0    2    2	 3    5    9	8   13	13  17	15  19	20  21	28  25	24  30	20  27	20  25
 26	0    0	  0    1    1	 4    5    2	4    8	11   9	 7  11	 8  15	12  11	17  21	17  21	22  18
 27	0    0	  3    0    2	 2    4    5	7    6	 8   3	 9  10	 4   9	15  11	18  10	14  15	 8   7
 28	0    0	  0    0    1	 0    2    4	4    3	 0   3	 7   4	 5   9	 9   7	 8   7	 4   6	 9  16
 29	0    0	  0    1    2	 2    0    1	0    1	 1   4	 2   5	 4   5	 5   7	 8   6	 5   7	 2   8
 30	0    0	  0    0    0	 0    1    1	1    2	 1   3	 1   2	 3   3	 2   2	 3   2	 1   3	 2   5
 31	0    0	  0    0    0	 0    0    0	1    1	 0   1	 1   1	 0   1	 3   4	 2   0	 0   0	 3   0
 32	0    0	  0    0    0	 0    0    0	0    0	 0   2	 1   0	 0   1	 0   0	 2   3	 1   1	 0   3
 33	0    0	  0    0    0	 0    0    0	0    0	 0   0	 0   1	 0   0	 0   1	 0   2	 0   0	 2   3
 34	0    0	  0    0    0	 0    0    0	0    0	 0   0	 1   0	 1   1	 0   1	 1   0	 1   0	 0   0
 35	0    0	  0    0    0	 0    0    0	0    0	 0   0	 0   0	 0   0	 1   0	 0   0	 1   0	 0   1
 36	0    0	  0    0    0	 0    0    0	0    0	 0   0	 0   0	 0   1	 1   0	 0   0	 0   1	 0   2
 37	0    0	  0    0    0	 0    0    0	0    0	 0   0	 0   0	 0   1	 0   0	 0   1	 0   0	 1   0
 38	0    0	  0    0    0	 0    0    0	0    0	 0   0	 0   0	 0   0	 0   0	 0   0	 0   0	 0   0
 39	0    0	  0    0    0	 0    0    0	0    0	 0   0	 0   0	 0   0	 0   0	 0   0	 0   0	 0   0

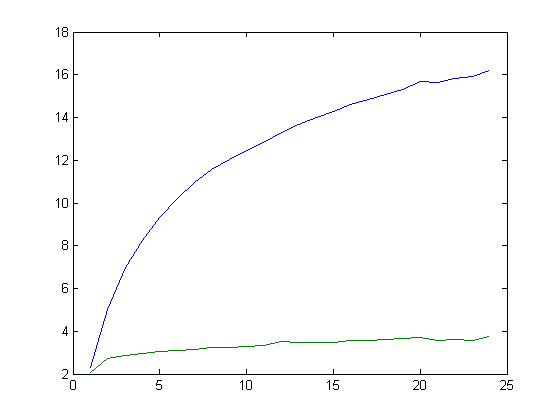

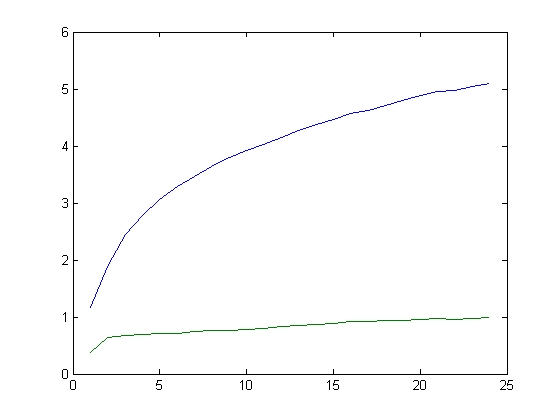

For a=1, 2, 3, ..., 24, the means of these distributions are 2.3075, 5.0025, 6.9688, 8.2655, 9.3172, 10.2088, 10.9385, 11.5711, 12.0145, 12.4725, 12.8472, 13.3144, 13.6613, 14.0181, 14.2853, 14.6265, 14.8641, 15.0889, 15.3236, 15.6876, 15.6275, 15.8181, 15.9344, and 16.2146 respectively, the standard deviations are 2.0704, 2.7025, 2.8688, 2.9650, 3.0535, 3.1151, 3.1678, 3.2250, 3.2571, 3.3044, 3.3179, 3.5003, 3.4540, 3.4775, 3.4843, 3.5874, 3.5740, 3.6121, 3.6397, 3.6950, 3.5507, 3.5912, 3.5758, and 3.7751 respectively, and the sample sizes are 7440, 17925, 19279, 17086, 14210, 12069, 10658, 9383, 8375, 7388, 6805, 5922, 5412, 5023, 4704, 4495, 4334, 4105, 3887, 3572, 3428, 3353, 3016, and 2926 respectively.  A plot of the means and standard deviations is;

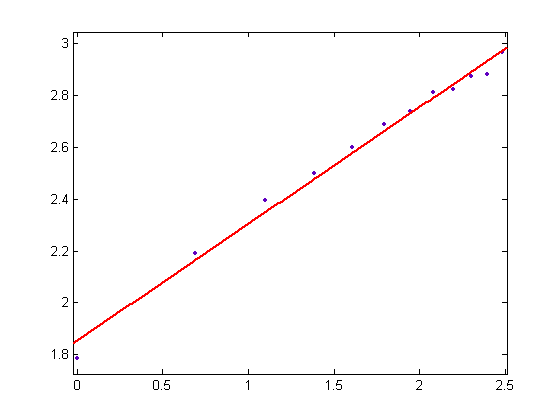

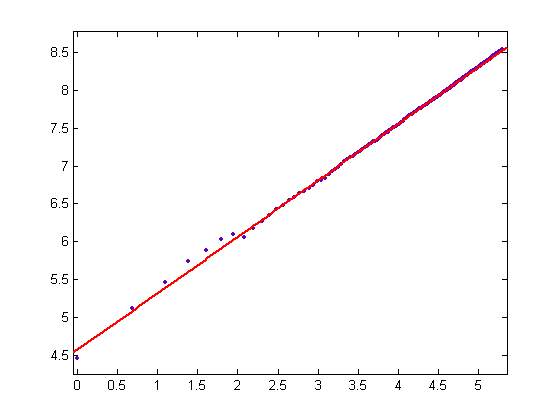

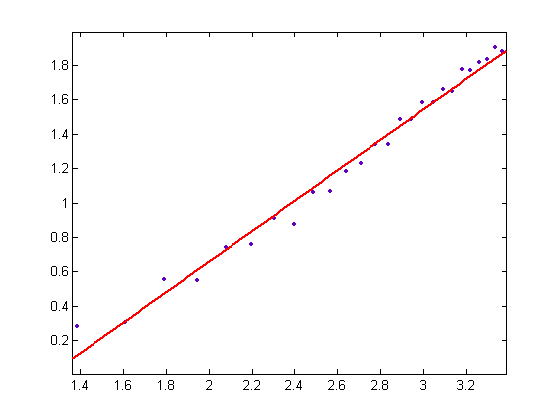

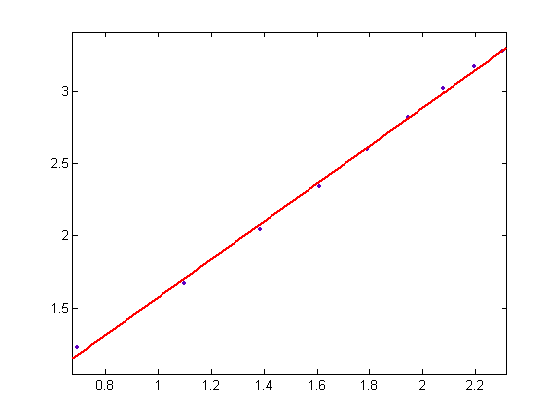

A linear least-squares fit of the means plotted against log(a) is;

For c less than or equal to 199999 and a=1, 2, 3, ..., 24, the means of the distributions are 2.3960, 5.0181, 6.9037, 8.2448, 9.3514, 10.2428, 10.9874, 11.5606, 12.0565, 12.4427, 12.8846, 13.3813, 13.7249, 14.0554, 14.2985, 14.5896, 14.8762, 15.0961, 15.3512, 15.6148, 15.6866, 15.8611, 15.9868, and 16.2639 respectively, the standard deviations are 2.1291, 2.7093, 2.8870, 2.9846, 3.0753, 3.1413, 3.1873, 3.2188, 3.2653, 3.3025, 3.3770, 3.5027, 3.4663, 3.5132, 3.4893, 3.5289, 3.5896, 3.5850, 3.6588, 3.7029, 3.6014, 3.6314, 3.6232, and 3.7260 respectively, and the sample sizes are 10995, 31363, 38306, 33299, 27300, 23335, 20718, 18800, 16910, 15307, 13815, 12411, 11597, 10821, 10147, 9817, 9199, 8784, 8420, 8048, 7673, 7422, 6682, and 6371 respectively.  The means and standard deviations of the distributions do not change much for different upper bounds of c values.

An empirical result (based on the 663743 cycles with attachment points for c less than or equal to 199999) is;

(25)  δa+1>utmax/λ.

Let i denote the smallest power of δ such that δi>utmax/λ.  A table of the number of i values for given a values of the 3n+c cycles for c less than or equal to 99997 is;
        a=1     2    3	 4    5    6	7    8	  9   10   11	12   13   14   15   16	 17   18   19	20   21   22   23   24
 i=1   6226  4689  984  224   43   11	2    0	  0    0    0	 0    0    0	0    0	  0    0    0	 0    0    0	0    0
  2   1214 10462 9699 5654 2684 1338  697  332	154   92   49	21   10   12	1    2	  1    0    0	 0    0    0	0    0
  3	 0  2774 7635 9026 8045 6440 5074 3883 2929 2135 1716 1270  913  701  571  466	366  316  224  169  142  115  101   73
  4	 0     0  961 2121 3161 3788 4081 4052 3908 3562 3303 2779 2494 2237 2015 1784 1730 1471 1353 1132 1067 1001  822  782
  5	 0     0    0	61  277  487  774 1043 1249 1428 1495 1530 1583 1572 1555 1555 1487 1517 1457 1373 1265 1278 1161 1135
  6	 0     0    0	 0    0    5   30   73	134  169  235  298  383  462  499  607	644  664  704  727  742  762  710  686
  7	 0     0    0	 0    0    0	0    0	  1    2    7	24   29   38   62   79	102  129  139  157  198  187  205  227
  8	 0     0    0	 0    0    0	0    0	  0    0    0	 0    0    1	1    2	  4    8   10	14   14   10   16   21
  9	 0     0    0	 0    0    0	0    0	  0    0    0	 0    0    0	0    0	  0    0    0	 0    0    0	1    2
The means and standard deviations of these distributions for a=1, 2, 3, ..., and 24 are 1.1632, 1.8932, 2.4447, 2.7741, 3.0665, 3.2831, 3.4708, 3.6421, 3.7950, 3.9260, 4.0253, 4.1496, 4.2777, 4.3761, 4.4613, 5.5660, 4.6297, 4.7181, 4.7970, 4.8917, 4.9501, 4.9806, 5.0491, and 5.0967 respectively and 0.3695, 0.6364, 0.6699, 0.6861, 0.7050, 0.7165, 0.7371, 0.7547, 0.7717, 0.7878, 0.8047, 0.8381, 0.8502, 0.8718, 0.8869, 0.9147, 0.9237, 0.9445, 0.9407, 0.9536, 0.9793, 0.9554, 0.9822, and 0.9891 respectively.  A plot of these values is;

The means and standard deviations of these distributions (and the distributions themselves) do not change much for different upper bounds of c values.  A linear least-squares fit of the means plotted against log(a) is;

For c less than or equal to 199999 and a=1, 2, 3, ..., 24, the means of the distributions are 1.1843, 1.9007, 2.4258, 2.7702, 3.0672, 3.2924, 3.4819, 3.6423, 3.8029, 3.9201, 4.0369, 4.1636, 4.2806, 4.3784, 4.4652, 4.5543, 4.6415, 4.7115, 4.7964, 4.8831, 4.9571, 4.9980, 5.0503, and 5.1163 respectively and the standard deviations are 0.3877, 0.6345, 0.6626, 0.6896, 0.7049, 0.7218, 0.7356, 0.7564, 0.7710, 0.7909, 0.8143, 0.8350, 0.8608, 0.8690, 0.8859, 0.9013, 0.9226, 0.9423, 0.9380, 0.9441, 0.9708, 0.9649, 0.9948, and 0.9876 respectively.

The Chain Equation

The chain equation for an m-cycle is given by 3k(i)ai-1=2k(i+1)+l(i)ai+1-2l(i), i=0, 1, 2, ..., m-1, where k(i) is the number of successive odd numbers leading up to a local maximum (due to typographical difficulties, k(i) is used to denote ki), l(i) is the number of successive even numbers going down to the next local minimum (due to typographical difficulties, l(i) is used to denote li), and ai are natural numbers (see Simons and de Weger's article).  The chain equation is the starting point of m-cycle theory and is used to derive Simons and de Weger's Lemma 4;

        0 < Λ < ∑1/xi

where xi is a local minimum, the summation is from i=1 to m, and Λ denotes (K+L) log(2)-K log(3).  The above characterization of a 3n+c cycle is related to this lemma.  For most 3n+c cycles, c times the sum of the reciprocals of |u| and |t| is greater than the absolute value of Λ.  When (K+L, K) is equal to (or approximately equal to) a generalized continued-fraction convergent of log(3)/log(2), c times the sum of reciprocals is sometimes smaller than the absolute value of Λ.  An empirical result (based on the cycles with attachment points for c≤199999) is;

(26)  10c∑(1/|ui| + 1/|ti|) where the summation is from i=1 to a is greater than |Λ|.  16c∑1/|ui| where the summation is from i=1 to a is greater than |Λ|.  128c∑1/|ti| where the summation is from i=1 to a is greater than |Λ|.

Simons and de Weger's Corollary 5 (of Lemma 4) is;

        0 < Λ < m/xminm/X0

where xmin is the global minimum of an m-cycle and X0 is an empirically derived lower bound for xmin.  (As will be shown, the chain equation is not entirely applicable to the above characterization of a 3n+c cycle, so even if Proposition (26) is accepted, a proposition analogous to Corollary 5 can't be derived without some knowledge of the relative sizes of the |u| and |t| values.)  Simons and de Weger show that Λ is exponentially small in terms of its coefficients and use a result from transcendence theory due to Rhin11 to derive Lemma 12;

        Λ > e-13.3(0.46057+log K).

Using Corollary 5 gives Simons and de Weger's Corollary 13 (where the global minimum of an m-cycle is estimated in terms of K);

        xmin < me13.3(0.46057+log K)

Brox12 proved that for any m there are only finitely many m-cycles.

The Number of M-Cycles

A histogram of  the [3·log(c)]-a values for the 27014 cycles for c less than or equal to 199999 having (K+L, K) values equal to those of M-cycles generated by the parity vector p is;

This distribution has a mean of 29.2260 and a standard deviation of 4.3270.  The only negative value (-1) occurs for the c=1 cycle.  Also, small values only occur for small c values.  Denote the (L, K) value of a cycle generated from the parity vector p by (L', K').  If the (L, K) value of a cycle doesn't equal that of an M-cycle generated from the parity vector p, but K=K' for some K', set d to |L-L'|, otherwise set d to zero.  If KK' for any K' then K+1=K' for some K', and if K≠1, K-1=K' for some K'.  In this case, set d to the absolute value of L minus the average of the corresponding L' values.  If K=1, set d to |L-L'| where K+1=K'.  An empirical result (based on the 663743 cycles with attachment points for c less than or equal to 199999) is;

(27)  [3·log(c)+d/δ] is almost always greater than a.

This proposition is true for 99.9235% of the cycles.  (Current m-cycle theory lacks such a relationship between (L, K) and m.)  A histogram of the [3·log(c)+d/δ]-a values for the 23132 cycles with attachment points for c less than or equal to 9997 superimposed on a normal probability distribution having the same mean and standard deviation is;

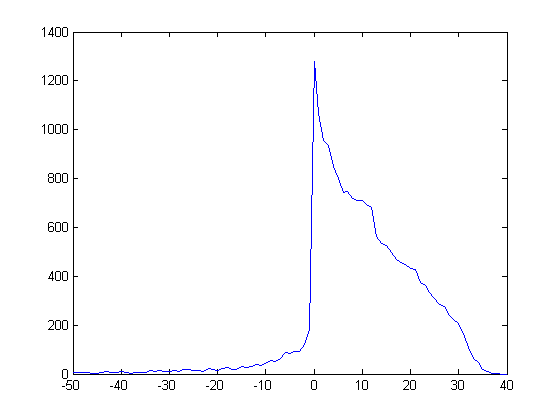

When c=32389, the difference is -14 for a cycle where (L, K)=(876, 984) and a=234.  When c=33989, the difference is -13 for a cycle where (L, K)=(1116, 1224) and a=296.   When c=22429, the difference is -13 for a cycle where (L, K)=(553, 689) and a=137.  When c=45679, the difference is -12 for a cycle where (L, K)=(527, 646) and a=138.  When c=43925, the difference is -10 for a cycle where (L, K)=(680, 800) and a=175.  When c=45613, the difference is -10 for a cycle where (L, K)=(1181, 1345) and a=290.  When c=21809, the difference is -9 for a cycle where (L, K)=(480, 576) and a=129.  When c=6515, the difference is -8 for a cycle where (L, K)=(436, 506) and a=122.  When c=11707, the difference is -7 for a cycle where (L, K)=(624, 713) and a=165.  When c=43739, the difference is -7 for a cycle where (L, K)=(969, 1083) and a=250.  When c=46823, the difference is -7 for a cycle where (L, K)=(1105, 1192) and a=296.  When c=5827, the difference is -6 for a cycle where (L, K)=(426, 504) and a=114.  When c=27547, the difference is -5 for a cycle where (L, K)=(588, 696) and a=149.  When c=39605, the difference is -5 for a cycle where (L, K)=(912, 1016) and a=237.  When c=28771, the difference is -5 for a cycle where (L, K)=(738, 843) and a=190.  When c=42641, the difference is -5 for a cycle where (L, K)=(1555, 1722) and a=382.  When c=46841, the difference is -5 for a cycle where (L, K)=(585, 690) and a=151.  When c=48091, the difference is -5 for a cycle where (L, K)=(596, 720) and a=147.  When c=35191, the difference is -4 for a cycle where (L, K)=(522, 672) and a=135.  When c=8243, the difference is -4 for a cycle where (L, K)=(805, 929) and a=196.  When c=16001, the difference is -4 for a cycle where (L, K)=(613, 726) and a=151.  When c=14957, the difference is -3 for a cycle where (L, K)=(500, 591) and a=129.  When c=16487, the difference is -3 for a cycle where (L, K)=(529, 625) and a=134.  When c=17315, the difference is -3 for a cycle where (L, K)=(696, 750) and a=194.  When c=26213, the difference is -3 for a cycle where (L, K)=(428, 514) and a=113.  When c=46801, the difference is -3 for a cycle where (L, K)=(564, 664) and a=145.  When c=17449, the difference is -2 for a cycle where (L, K)=(336, 454) and a=94.  When c=38689, the difference is -2 for a cycle where (L, K)=(633, 726) and a=164.  When c=20807, the difference is -2 for a cycle where (L, K)=(484, 590) and a=119.  When c=22343, the difference is -2 for a cycle where (L, K)=(1185, 1282) and a=306.  When c=41893, the difference is -2 for a cycle where (L, K)=(471, 549) and a=128.  (There is only one cycle each for c equal to 6515, 14957, 17315, 28771, 32389, 33989, 39605, 42641, and 48091.  There are only two cycles each for c equal to 5827, 8243, 11707, 16001, 17449, 20807, 21809, 22429, 27547, 35191, 41893, 43925, 45613, and 45679.  The largest number of cycles occurs for c=46841; there are ten cycles having four distinct (L, K) values.  Except for c=22343, the (L, K) values of all the cycles for the above c values are large.  When c=22343, there are four cycles having (L, K) values of (1185, 1282), (1080, 1027), (7, 17), and (7, 17).)   Also, the difference is -1 for 9 cycles when c is less than or equal to 49999.  Similar results apply for c greater than 50000.  Let cmax denote the upper bound of the c values.  Other than being discrete-valued, the distribution of differences resembles a normal probability distribution where the mean is approximately equal to the variance for relatively small cmax values (the mean of the above distribution is 24.579 and the standard deviation is 5.061).  Assuming the d/δ-a values cancel each other out, the expected mean is (1/n)∑(3·log(c)) where n is the number of c values less than or equal to cmax.  The expected mean of the above distribution is 24.631.  A normal probability plot of the differences for the 102 cycles for the c values less than or equal to 97 is;

The mean of this distribution is 9.716 with a 95% confidence interval of (9.066, 10.365) and the standard deviation is 3.308 with a 95% confidence interval of (2.907, 3.836).  The expected mean is 10.785.  When cmax=997, the mean of the distribution of differences is 16.949 and the standard deviation is 3.918 (there are 1556 cycles with attachment points for this cmax value).  A plot of the distribution of differences superimposed on a normal probability distribution having the same parameters is;

For larger cmax values, a normal probability distribution doesn't fit the data very well.  When cmax=19999, the mean of the distribution of differences is 26.879 and the standard deviation is 5.957 (there are 48449 cycles with attachment points for this cmax value).  A plot of the distribution of differences superimposed on a normal probability distribution having the same parameters is;

When cmax=29999, the mean of the distribution of differences is 28.332 and the standard deviation is 6.612.  A plot of the distribution of differences superimposed on a normal probability distribution having the same parameters is;

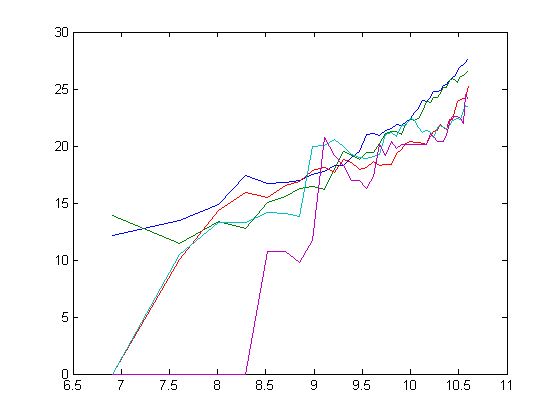

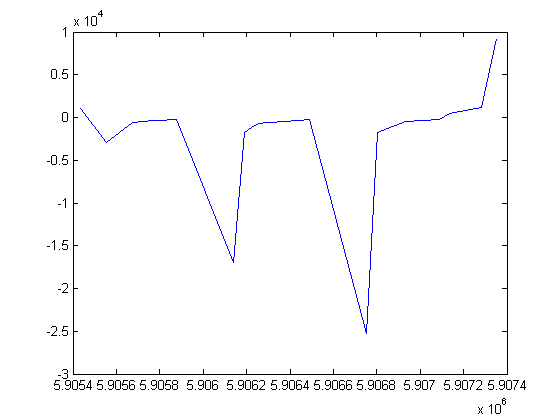

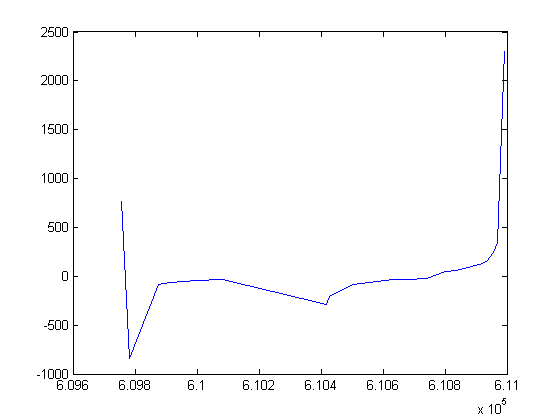

A detailed plot showing the left-hand tails of the above distributions is;

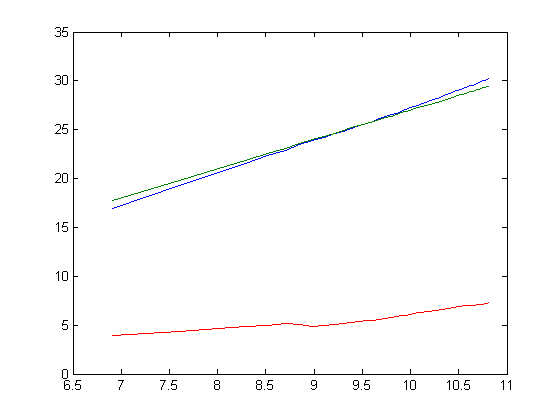

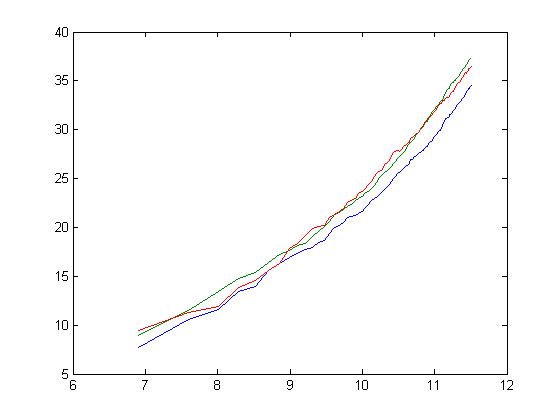

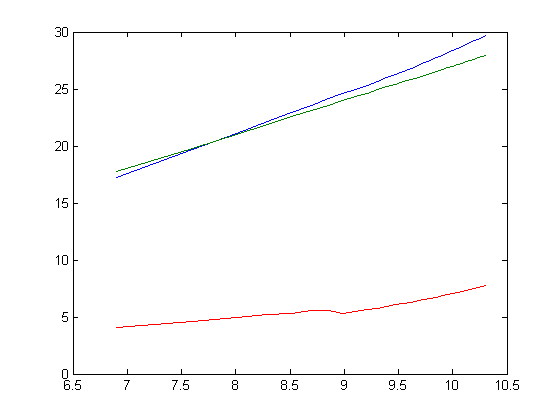

A plot of the means, standard deviations, and expected means of the distributions of differences versus log(cmax) for cmax values of 997, 1999, 2999, 3997, 4999, 5999, 6997, ..., 49999 is;

(The curves for the means and expected means intersect.)  Although the mean starts out being smaller than the expected mean and eventually becomes larger than the expected mean, the curve of means still appears to be mostly linear (when plotted against log(cmax)).  A quadratic  (f(x)=p1x2+p2x+p3) least-squares fit of the means plotted against log(cmax) for cmax=997, 1999, 2999, ..., 199999 is;

p1=0.1109 with a 95% confidence interval of (0.1067, 0.1151), p2=1.346 with a 95% confidence interval of (1.258, 1.434), and p3=2.688 with a 95% confidence interval of (2.23, 3.147).  SSE=0.3537, R-square=0.9999, adjusted R-square=0.9999, and RMSE=0.04237.

The non-linearity of the standard deviation curve is due to a large number of cycles with attachment points (2849) for c=7153.  A cubic (f(x)=p1x3+p2x2+p3x+p4) least-squares fit of the standard deviations plotted against log(cmax) for cmax=997, 1999, 2999, ..., 199999 is;

p
1=0.02579 with a 95% confidence interval of (0.0208, 0.03079), p2=-0.5298 with a 95% confidence interval of (-0.6803, -0.3792), p3=4.046 with a 95% confidence interval of (2.55, 5.542), and p4=-7.176 with a 95% confidence interval of (-12.07, -2.28).  SSE=1.053, R-square=0.9976, adjusted R-square=0.9976, and RMSE=0.07328.  When c=40741, there are 1429 cycles with attachment points.  The total number of cycles is large enough for cmax=40999 that there is only a minor drop in the standard deviation due to these cycles.  There are also 3782 cycles with attachment points for c=71515, 1238 cycles with attachment points for c=72023, and 1658 cycles with attachment points for c=84095 (and larger numbers of cycles for larger c values).

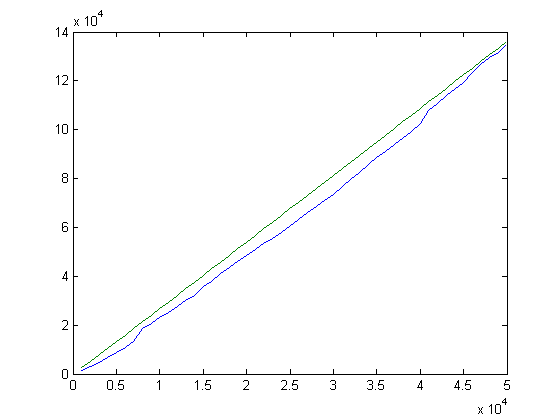

The expected number of cycles is cmax/log(cmax) times the expected mean.  A plot of the expected number of cycles and the number of cycles having attachment points for cmax values of 997, 1999, 2999, ..., 49999 is ;


For these cmax values, the expected number of cycles is larger than the actual number of cycles.  The expected number of cycles becomes smaller than the actual number of cycles for larger cmax values.

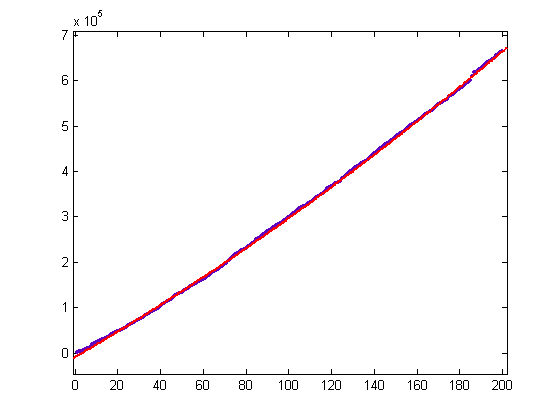

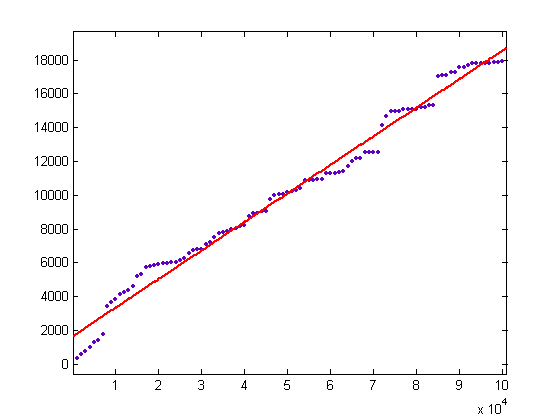

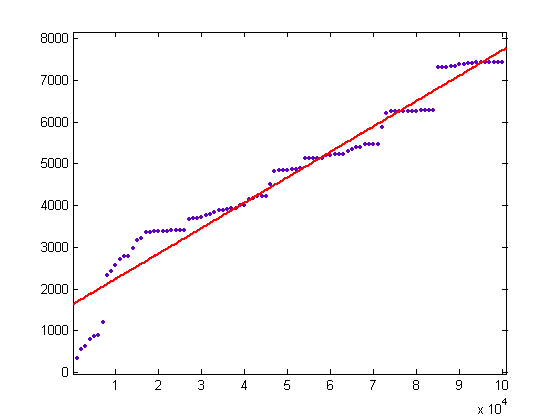

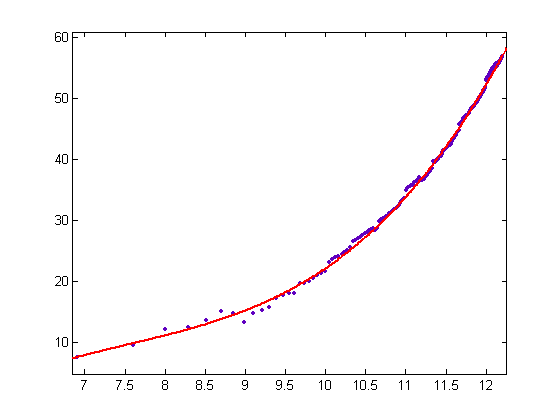

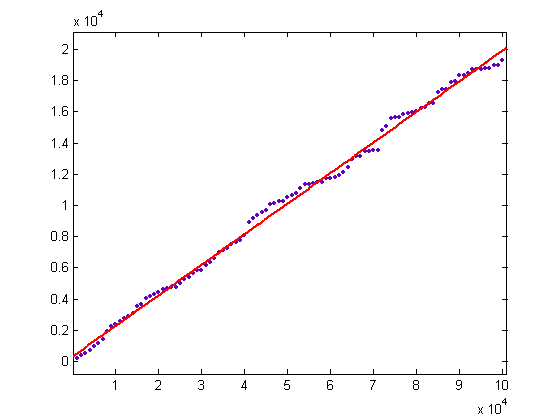

A quadratic least-squares fit of the number of cycles plotted against (cmax+1)/1000 or (cmax+3)/1000 (when 1000 does not divide cmax+1) for cmax=997, 1999, 2999, ..., 199999 is;

(The coefficients are poorly conditioned when the number of cycles is plotted against cmax.)  p1=3.081 with a 95% confidence interval of (2.951, 3.211), p2=2750 with a 95% confidence interval of (2723, 2777), and p3=-8472 with a 95% confidence interval of (-9645, -7299).  SSE=1.517e+09, R-square=0.9998, adjusted R-square=0.9998, and RMSE=2775.

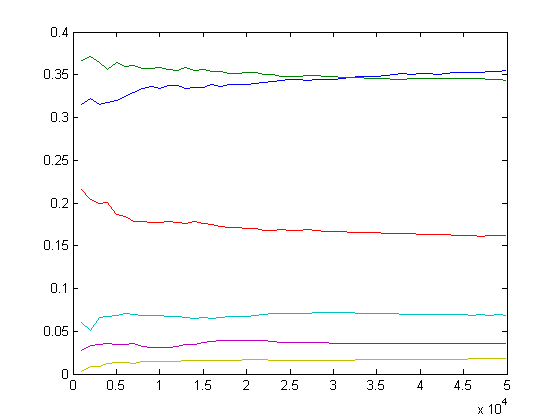

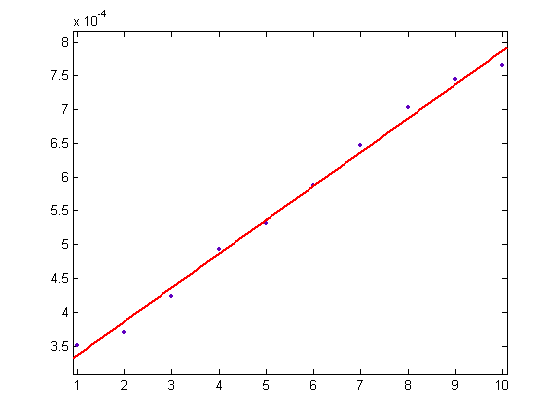

A linear least-squares fit of the proportions of cycles in the left-hand tail of the distribution of differences (up to and including cycles for which the difference is 0) plotted against (cmax+1)/1000 or (cmax+3)/1000 for cmax=19999, 39997, 59999, ..., 199999 is;

p1=5.014e-5 with a 95% confidence interval of (4.652e-5, 5.376e-5) and p2=0.000286 with a 95% confidence interval of (0.0002635, 0.0003084).  SSE=1.627e-9, R-square=0.9922, adjusted R-square=0.9912, and RMSE=1.426e-5.  Why these proportions appear to be increasing linearly is unknown.

Modifying the scaling factor (1/δ) slightly has a significant effect on the distribution of differences.  A plot of [3·log(c)+d/1.5]-a superimposed on a normal probability distribution having the same parameters for cmax=29999 is;

Even this small of a change in the scaling factor (from 1/1.584962501 to 1/1.5) skews the distribution significantly (there are fewer negative differences and more large positive differences).  When c=6515, (L, K)=(436, 506), and a=122, the difference is -3 for a cycle.  When c=21809, (L, K)=(480, 576), and a=129, the difference is -4 for a cycle.  When c=22429, (L, K)=(553, 689), and a=137, the difference is -7 for a cycle.  Also, the difference is -1 for two cycles when cmax=39997.  A plot of the means, standard deviations, and expected means of the distributions of differences versus log(cmax) for cmax values of 997, 1999, 2999, ..., 29999 is;

The mean of the distribution of differences still appears to increase linearly (mostly) with log(cmax).  A linear least-squares fit of the means plotted against log(cmax) for cmax=997, 1999, 2999, ..., 29999 is;

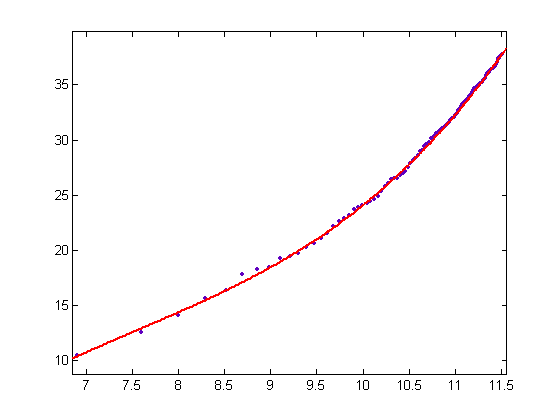

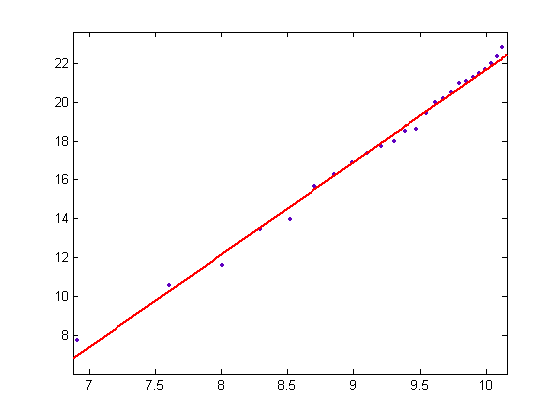

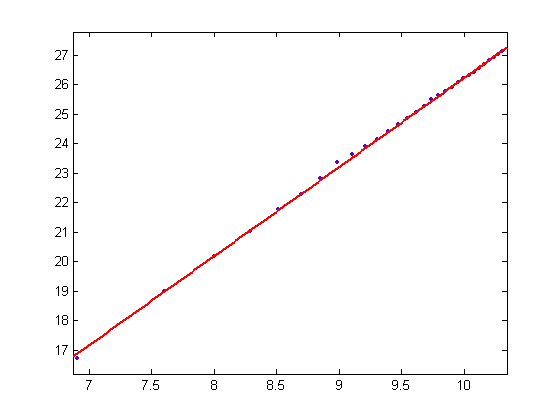

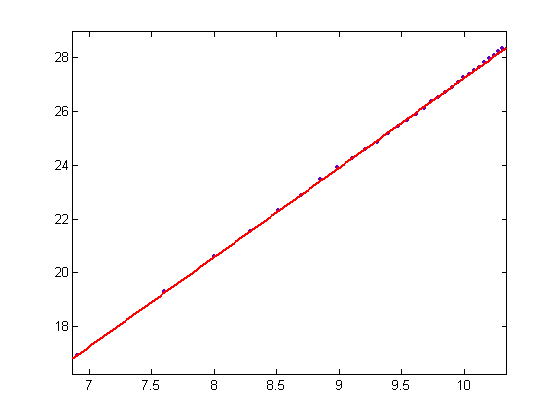

A linear least-squares fit of the means plotted against log(cmax) for cmax=997, 1999, 2999, ..., 29999 when the scaling factor of 1/δ is used is;

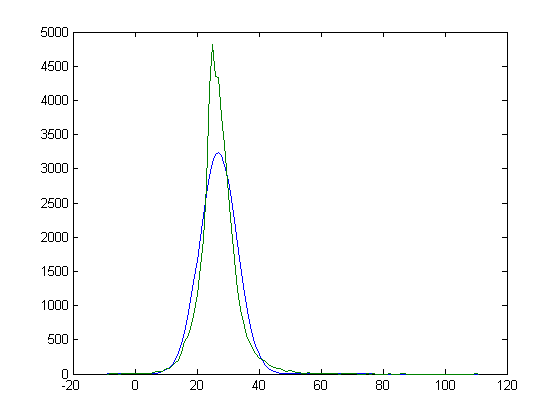

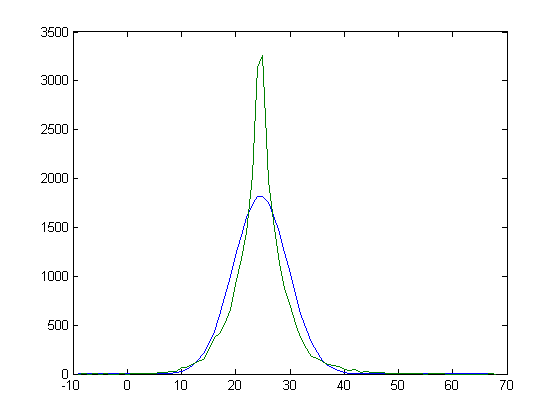

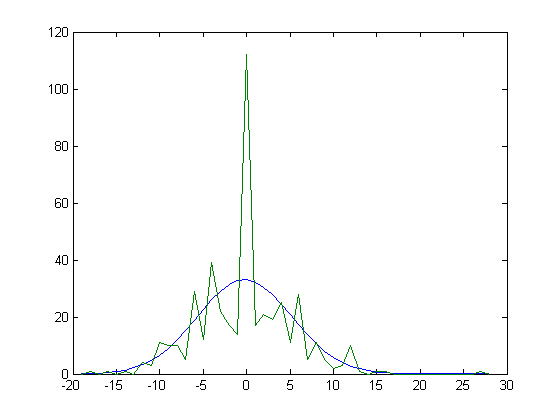

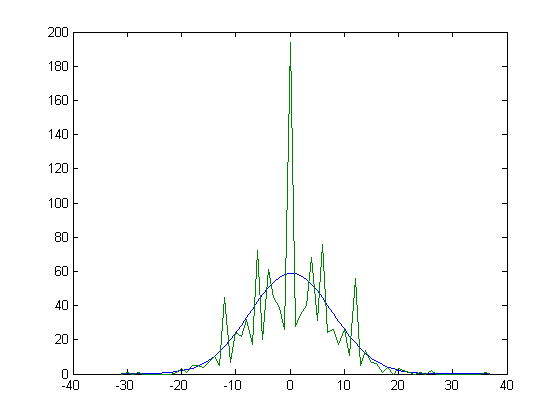

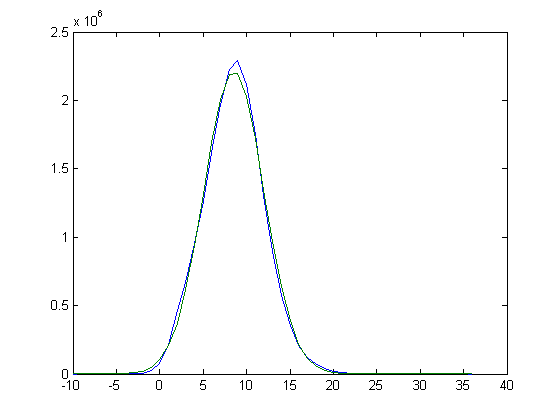

A plot of [3·log(c)+d/1.67]-a superimposed on a normal probability distribution having the same parameters for cmax=29999 is;

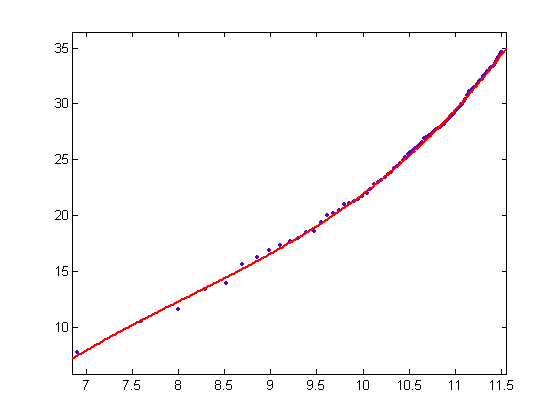

A linear least-square fit of the means plotted against log(cmax) for cmax=997, 1999, 2999, ..., 29999 is;

The slight deviation in the linearity of the means when plotted against log(cmax) is due to the large number of cycles for c=7153.

A plot of [3·log(c)+d/1.75]-a superimposed on a normal probability distribution having the same parameters for cmax=9997 is;

For this scaling factor, the distribution is skewed to the left.  The "best" scaling factor is then somewhere between 1/1.75 and 1/1.5.  The best least-squares fit of the means plotted against log(cmax) appears to occur for the scaling factor of 1/δ.

The [3·log(cmax)]-[3·log(c)]+a values have a probability distribution resembling that of a chi-square distribution with 6 degrees of freedom.  A histogram of the [3·log(cmax)]-[3·log(c)]+a values and a plot of the expected numbers of values for a chi-square distribution for cmax=997 is;

For larger cmax values, a chi-square probability distribution doesn't fit the data very well.  A cubic (f(x)=p1x3+p2x2+p3x+p4) least-squares fit of the means of the [3·log(cmax)]-[3·log(c)]+a distributions plotted against log(cmax) for cmax=997, 1999, 2999, ..., and 199999 is;

p1=0.3299 with a 95% confidence interval of (0.2874, 0.3584), p2=-7.309 with a 95% confidence interval of (-8.379, -6.239), p3=58.28 with a 95% confidence interval of (47.64, 68.91), and p4=-152.6 with a 95% confidence interval of (-187.4, -117.8).  SSE=53.2, R-square=0.9982, adjusted R-square=0.9982, and RMSE=0.521.  Much of the non-linearity of the curve is due to the large number of cycles with attachment points for c=7153 (and for a few other c values).  A quadratic (f(x)=p1x2+p2x+p3)  least-squares fit of the corresponding variances of the distributions plotted against (cmax+1)/1000 or (cmax+3)/1000 (when cmax+1 is not divisible by 1000) is;

(The coefficients are poorly conditioned when the variances are plotted against cmax.)  p1=0.02988 with a 95% confidence interval of (0.02814, 0.03163), p2=39.04 with a 95% confidence interval of (38.68, 39.41), and p3=-44.09 with a 95% confidence interval of (-59.83, -28.36).  SSE=2.732e+05, R-square=0.9998, adjusted R-square=0.9998, and RMSE=37.24.

For a fixed c value, the [3·log(c)]-a values may be distributed over several (L, K) values.  For a cycle having the (K+L, K) value of an M-cycle generated from the parity vector p, 3·log(c)+1≥a.  For every c value, there should be only finitely many cycles having these (K+L, K) values.

More on the Characterization of 3n+c Cycles

Let λu denote the average of the |u| values for a cycle and λt the average of the |t| values.  A plot of the |u| values versus their domain for a cycle for c=85 is;

(The x values have been scaled up by a factor of 103 and all but one data point is shown.  No shape-preserving interpolation of the data points is done.  λu equals 368.0.)  A plot of the |t| values versus their domain for the same cycle is;

(The x values have been scaled up by a factor of 103 and all but one data point is shown.  No shape-preserving interpolation of the data points is done.  λt equals 324.0.)  An empirical result (based on the 663743 cycles for c less than or equal to 199999) is;

(28)  umaxuminu2 is almost always less than δ and tmaxtmint2 is almost always less than δ.

A histogram of the 83 exceptions for u is;

Ten bins are used.  The maximum value is 2.1759 (less than δ2).  The a values of these cycles are small (less than or equal to 77) and the |L-K| values are relatively small.  A histogram of the L-K values is;

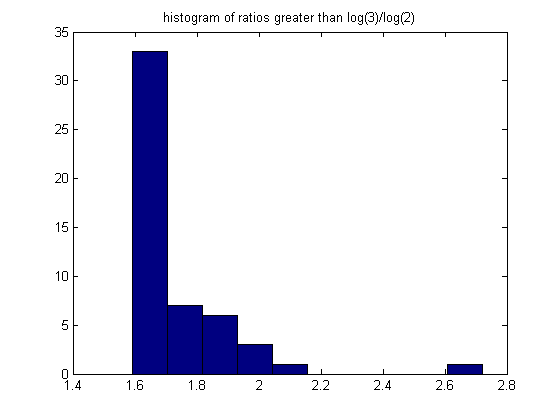

The |L-K|/L values are less than 3/8.  A histogram of the 51 exceptions for t is;

Ten bins are used.  The maximum value is 2.7221 (greater than δ2).  The a values of these cycles are  small (less than or equal to 59) and the |L-K| values are relatively small.  A histogram of the L-K values is;

An empirical result (based on the cycles for c≤199999) is;

(29)  δ (a+2)/2>umaxu and δ(a+2)/2>tmaxt.

Let i denote the smallest power of δ such that δi>umaxu.  A table of i values versus a values for the cycles for c less than or equal to 9997 is;

              a
=2           3           4           5           6          7         8         9       10
   i
=1      2979       912       284       101        31         7         6         2         0
      2        870     1315     1048       671      445     302     167     104        93

3           0       139        362       468      439     413     337     304      296

4           0           0            0         35      100     157     161     176      172
      5           0           0            0           0          0         2       16       19        46

The means and standard deviations of these distributions for a=2, 3, 4, ..., and 10 are 1.2260, 1.6733, 2.0460, 2.3427, 2.5990, 2.8241, 3.0204, 3.1752, and 3.2817 respectively and 0.4183, 0.5810, 0.6160, 0.6625, 0.7063, 0.7290, 0.7785, 0.7562, and 0.8133 respectively.  A plot of these values is;

A least-squares fit of the means plotted against log(a) is;

Let i denote the smallest power of δ such that δi>tmaxt.  A table of i values versus a values for the cycles for c less than or equal to 9997 is;

              a
=2           3           4           5           6          7         8         9       10
   i
=1      2857       803       261        75        31        19         4         4         1
      2        992     1331       962       613      376     240     151       83        78

3           0       232        471       535      495     462     354     309      294

4           0           0            0         52      113     160     164     190      196
      5           0           0            0           0          0         0       14       19        38

The means and standard deviations of these distributions for a=2, 3, 4, ..., and 10 are 1.2578, 1.7587, 2.1240, 2.4424, 2.6798, 2.8661, 3.0480, 3.2264, and 3.3163 respectively and 0.4374, 0.6159, 0.6457, 0.6680, 0.7085, 0.7232, 0.7496, 0.7436, and 0.7806 respectively.  A plot of these values is;

A least-squares fit of the means plotted against log(a) is;

An advantage to working with the average of the |u| and |t| values (that is, λ) is that the |u| and |t| values are more evenly distributed along the exponential curve (also, there are distinct maximum and minimum |u| or |t| values when a=1).  Let λ1 denote the average of the |u| and |t| values less than or equal to λ.  If λ1utmin, let λ2 denote the average of the |u| and |t| values less than or equal to λ1, if λ2utmin, let λ3 denote the average of the |u| and |t| values less than or equal to λ2, etc.  An empirical result is;

(30)  δa+1 is usually greater than λ/λ1, λ12 (when λ2 is defined), λ23 (when λ2 and λ3 are defined), etc.

When c is less than or equal to 9997, the proportions of λ/λ1, λ12, λ23, ..., λ56 values greater than δa+1 are 0.02892 (669/23132), 0.02224 (453/20369), 0.01443 (241/16700), 0.00528 (67/12678), 0.00065 (6/9164), and 0.00000 (0/6051) respectively.  When c is less than or equal to 19999, the proportions of λ/λ1, λ12, λ23, ..., λ56 values greater than δa+1 are 0.02334 (1131/48449), 0.01827 (818/44776), 0.01219 (475/38967), 0.00423 (133/ 31452), 0.00063 (15/23967), and 0.00006 (1/16878) respectively.  When c is less than or equal to 29999, the proportions of λ/λ1, λ12, λ23, ..., λ56 values greater than δa+1 are 0.01920 (1411/73486), 0.01616 (1122/69438), 0.01105 (691/62531), 0.00391 (204/ 52145), 0.00066 (27/40996), and 0.00007 (2/29809) respectively.  When a≥3, λ2 and λ3 are usually defined.  This is the basis of the following empirical result;

(31)  δ4a+4 is usually greater than utmax/utmin.  If a>3, δ4a+5>utmax/utmin.

Of the 23132 cycles for c less than or equal to 9997, a=1 for 2562 cycles and δ4a+4<utmax/utmin for 46 cycles (about 1.80% of the cycles), a=2 for 3849 cycles and δ4a+4<utmax/utmin for 56 cycles (about 1.45% of the cycles), a=3 for 2366 cycles and δ4a+4<utmax/utmin for 20 cycles, and a≥4 for 14355 cycles and δ4a+4<utmax/utmin for 4 cycles (in every instance, a=4).  If a=1, δ20>utmax/utmin.  If a=2, δ20>utmax/utmin.  If a=3, δ22>utmax/utmin.  For very large cmax values, larger multiples of a+1 would be required for Proposition (31) to still be valid.

Let i denote the smallest power of δ such that δi>λ/λ1.  For c≤99997 and a=1, 2, 3, ..., 12 , the means of the distributions of numbers of i values are 1.7859, 2.1929, 2.3974, 2.5008, 2.6018, 2.6874, 2.7393, 2.8119, 2.8246, 2.8736, 2.8835, and 2.9667 respectively, the standard deviations are 1.7134, 1.2101, 0.9375, 0.8372, 0.8025, 0.7870, 0.7788, 0.8094, 0.7969, 0.8103, 0.8091, and 0.8625 respectively, and the sample sizes are 7440, 17925, 19279, 17086, 14210, 12069, 10658, 9383, 8375, 7388, 6805, and 5922 respectively.  A linear least-squares fit of the means plotted against log(a) is;

p1=0.4509 with at 95% confidence interval of (0.4186, 0.4832) and p2=1.854 with a 95% confidence interval of (1.796, 1.913).  SSE=0.01321, R-square=0.9898, adjusted R-square=0.9887, and RMSE=0.03634.  For c≤199999 and a=1, 2, 3, ..., 12, the means of the distributions are 1.8542, 2.2050, 2.3763, 2.4966, 2.6051, 2.6894, 2.7532, 2.8125, 2.8349, 2.8644, 2.9013, and 2.9741 respectively, the standard deviations are 1.7636, 1.2116, 0.9308, 0.8453, 0.8076, 0.7930, 0.7929, 0.8023, 0.7961, 0.8096, 0.8341, and 0.8607 respectively, and the sample sizes are 10995, 31363, 38306, 33299, 27300, 23335, 20718, 18800, 16910, 15307, 13815, and 12411 respectively.  The means and standard deviations of the distributions do not change much for different c upper bounds.

For the 48449 cycles for c less than or equal to 19999, there are 3374, 5899, 4419, 3297, 2567, and 2073 cycles where a equals 1, 2, 3, 4, 5, and 6 respectively.  A plot of the distribution of the minimum power of δ greater than utmax/utmin for the cycles where a=1 superimposed on the corresponding chi-square probability distribution with 2 degrees of freedom is;

A plot of the distribution of the minimum power of δ greater than utmax/utmin for the cycles where a=2 superimposed on the corresponding chi-square distribution with 3 degrees of freedom is;

A plot of the distribution of the minimum power of δ greater than utmax/utmin for the cycles where a=3 superimposed on the corresponding chi-square distribution with 4 degrees of freedom is;

A plot of the distribution of the minimum power of δ greater than utmax/utmin for the cycles where a=4 superimposed on the corresponding chi-square distribution with 5 degrees of freedom is;

A plot of the distribution of the minimum power of δ greater than utmax/utmin for the cycles where a=5 superimposed on the corresponding chi-square distribution with 6 degrees of freedom is;

A plot of the distribution of the minimum power of δ greater than utmax/utmin for the cycles where a=6 superimposed on the corresponding chi-square distribution with 7 degrees of freedom is;

For a given a value, the distribution of the minimum power of δ greater than utmax/utmin doesn't depend on the upper bound of c very muchPlots of the means of the distributions for a=1, 2, 3, ..., 10 and cmax=1999, 3997, 5999, ..., 29999 are;


From bottom to top, the curves are for a equal 1 to 10.  Plots of the standard deviations of the distributions for a=1, 2, 3, 4, and 5 and cmax=1999, 3997, 5999, ..., 29999 are;


From bottom to top, the curves are for a equal 1 to 5.  Plots of the standard deviations of the distributions for a=6, 7, 8, 9, and 10 for cmax=1999, 3997, 5999, ..., 29999 are;


Plots of the sample sizes of the distributions for a=1, 2, 3, ..., 10 and cmax=997, 1999, 2999, ..., 99997 are;


The aberrant curve is for a=1.  From top to bottom, the other curves are for a equal 2 to 10 (the curves for a=2 and a=3 cross).  The number of cycles having a given a value appears to increase linearly with cmax (although the curve eventually begins to resemble a step function).

The sample sizes for a=1, 2, 3, ..., 24 plotted against (cmax+1)/1000 or (cmax+3)/1000 for cmax=9997, 19999, 29999, ..., 199999 are;

A linear least-squares fit of the curve for a=1 and cmax=997, 1999, 2999, ..., 99997 is;

p1=0.06089 with a 95% confidence interval of (0.05805, 0.06373) and p2=1640 with a 95% confidence interval of (1474, 1805).  SSE=1.676e+007, R-square=0.9485, adjusted R-square=0.948, and RMSE=413.6.  A linear least-squares fit of the curve for a=2 and cmax=997, 1999, 2999, ..., 99997 is;


p
1=0.1691 with a 95% confidence interval of (0.1647, 0.1734) and p2=1670 with a 95% confidence interval of (1418, 1922).  SSE=3.89e+007, R-square=0.9839, adjusted R-square=0.9838, and RMSE=630.  A linear least-squares fit of the curve for a=3 and cmax=997, 1999, 2999, ..., 99997 is;


p
1=0.1959 with a 95% confidence interval of (0.1935, 0.1983) and p2=336.9 with a 95% confidence interval of (196.5, 477.2).  SSE=1.208e+007, R-square=0.9962, adjusted R-square=0.9962, and RMSE=351.

Although a chi-square probability distribution doesn't model the distribution very well for larger a values, the number of values in the right-hand tails of the distributions is still about the same.  For the 194664 cycles for c less than or equal to 69997, there are 5463, 12533, 13505, 12072, 9941, 8240, 7103, 6118, 5521, and 4913 cycles where a equals 1, 2, 3, ..., and 10 respectively.  A plot of the distribution of the minimum power of δ greater than utmax/utmin for the cycles where a=7 superimposed on the corresponding chi-square probability distribution with 8 degrees of freedom is;

A plot of the distribution of the minimum power of δ greater than utmax/utmin for the cycles where a=8 superimposed on the corresponding chi-square probability distribution with 9 degrees of freedom is;

When the curve for the actual distribution rises more steeply than the curve for the chi-square distribution (when a>7), there are fewer values in the right-hand tail of the distribution than for the chi-square distribution.  A plot of the distribution of the minimum power of δ greater than utmax/utmin for the cycles where a=9 superimposed on the corresponding chi-square probability distribution with 10 degrees of freedom is;

A plot of the distribution of the minimum power of δ greater than utmax/utmin for the cycles where a=10 superimposed on the corresponding chi-square probability distribution with 11 degrees of freedom is;

Given the number of cycles for an a value, the number of values of the smallest power of δ greater than utmax/utmin in the right-hand tail of the distribution can be estimated using the chi-square distribution.  Proposition (27) then gives a relationship between the L-K value of a cycle and an upper bound of utmax/utmin.

The Minimum |L-K| Value of the 3n+c Cycles for a Given c Value

(c, L, K) values of cycles with no attachment points where there are also no interrelated cycles with attachment points for c less than or equal to 99997 are (1, 0, 1), (1, 1, 1), (1, 1, 2), (11, 1, 3), (49, 1, 4), (179, 1, 5), (601, 1, 6), (1931, 1, 7), (6049, 1, 8), (18659, 1, 9), (57001, 1, 10), (791, 2, 8), (85, 4, 8), (145, 4, 8), (57001, 1, 10), (2167, 4, 12), (66469, 3, 13), (8497, 4, 15), (29267, 4, 16), (53095, 4, 16), (16133, 12, 24), and (78313, 5, 19).  These values are included in the following.  For the c values less than or equal to 19999, there is only 1 cycle (counting only one of interrelated cycles) for 2260 c values and the mean and standard deviation of the L-K values are 1.013 and 21.245 respectively.  A histogram of the L-K values superimposed on a normal probability distribution having this mean and standard deviation is;

(There is a tendency for the L-K values to be a multiple of 6.)  For the c values less than or equal to 19999, there are exactly 2 cycles (counting only one of interrelated cycles) for 2351 c values and the mean and standard deviation of the L-K values of the smaller |L-K| values are 0.185 and 11.385 respectively.  A histogram of the L-K values superimposed on the corresponding normal probability distribution is;

For the c values less than or equal to 19999, there are exactly 3 cycles (counting only one of interrelated cycles) for 1132 c values and the mean and standard deviation of the L-K values of the smallest |L-K| values are 0.281 and 7.669 respectively.  A histogram of the L-K values superimposed on the corresponding normal probability distribution is;

For the c values less than or equal to 19999, there are exactly 4 cycles (counting only one of interrelated cycles) for 452 c values and the mean and standard deviation of the L-K values of the smallest |L-K| values are -0.215 and 5.457 respectively.  A histogram of the L-K values superimposed on the corresponding normal probability distribution is;

The corresponding standard deviations when there are 5, 6, 7, and 8 cycles (counting only one of interrelated cycles) are 4.195, 3.277, 3.109, and 2.515 respectively (when there are j cycles, the standard deviation is about 1/j times the standard deviation when there is 1 cycle).  Plots of j times the standard deviation for j=1, 2, and 3 versus log(cmax) for cmax values of 997, 1999, 2999, ..., 99997 are;

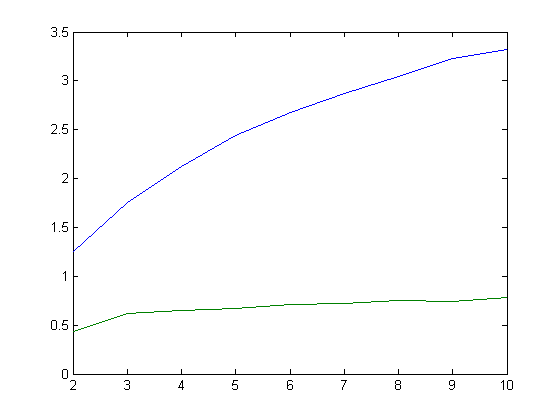

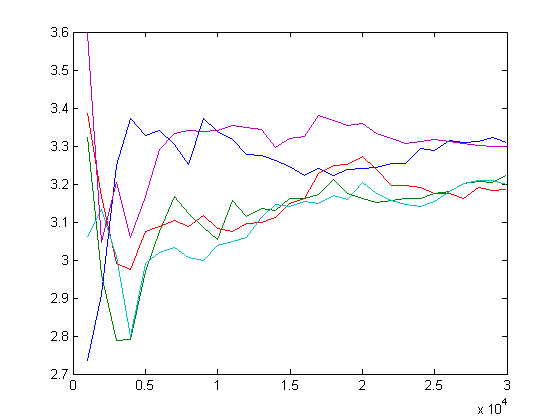

Plots of j times the standard deviation for j=4, 5, 6, 7, and 8 versus log(cmax) for cmax values of 997, 1999, 2999, ..., 39997 are;

Plots of the proportions of c values having 1, 2, 3, 4, 5, and 6 cycles (counting only one of interrelated cycles) versus cmax for cmax values of 997, 1999, 2999, ..., 49999 are;


For cmax=49999, an upper bound of the proportion of c values having only one cycle is about 0.354 (the upper bound of the proportion may increase further as cmax increases, but appears to be leveling off).  For relatively small cmax values, an upper bound of |L-K| can be computed beforehand using the slope (about 4.74) and intercept (about -25.67) of the line giving the standard deviation of the distribution of L-K values versus log(cmax).  A linear least-squares fit for cmax values up to 24997 when there is only one cycle is;

For example, the standard deviation for cmax=19999 should be 21.272 (compared to the actual standard deviation of 21.245).  There are 6667 c values less than or equal to 19999, so there should be less than 2360 (6667·0.354) c values with only one cycle (counting only one of interrelated cycles).  For a normal probability distribution with a mean of 0, a standard deviation of 21.272, and a sample size of 2360,  the expected number of L-K values becomes less than 1/2 for |L-K|>62.  In the actual distribution, the L-K values range from -112 to 108.  Out of the 2260 L-K values, 14 values are less than -62 and 13 values are greater than 62.  About 99% of the L-K values are then in the expected range.

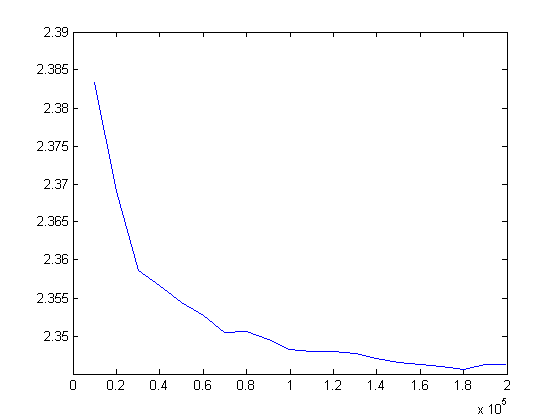

The standard deviation of the L-K values of the smallest |L-K| values doesn't increase linearly with log(cmax)A  cubic least-squares fit for cmax values up to 99997 when there is only one cycle (counting only one of interrelated cycles) is;

p1=0.1906 with a 95% confidence interval of (0.1675, 0.2136), p2=-4.622 with a 95% confidence interval of (-5.28, -3.963), p3=41.51 with a 95% confidence interval of (35.29, 47.73), and p4=-121.5 with a 95% confidence interval of (-140.9, -102.2) .   SSE=3.046,  R-square=.9992, adjusted R-square=.9992, and RMSE=0.1782. ( The adjusted R-square value for a quadratic least-squares fit is .9968.)  A quadratic least-squares fit of the standard deviation of the L-K values  when there is only one cycle (counting only one of interrelated cycles) plotted against log(cmax) for cmax=9997, 19999, 29999, ..., 199999 is;

p1=1.57 with a 95% confidence interval of (1.476, 1.665), p2=-25.25 with a 95% confidence interval of (-27.32, -23.19), and p3=117.2 with a 95% confidence interval of (106.1, 128.4).  SSE=0.3439, R-square=0.9997, adjusted R-square=0.9996, and RMSE=0.1422.

Let (L1, K1), (L2, K2), (L3, K3), ..., (Ln, Kn) denote the (L, K) values of the cycles for a given c value sorted by increasing L values.  For the c values less than or equal to 39997, the standard deviations of the L-K values of the smallest |L-K| values when (L1, K1), (L2, K2), (L3, K3), ..., (Li, Ki), i=1, 2, 3, ..., 7, are not included and there are 2, 3, 4, ..., 8 cycles are as follows;

         # cycles        2            3            4            5            6            7            8
             i=1      28.617   14.938     9.807      7.066     5.640     4.343     3.372
                2         n/a       26.498   14.273      8.897     7.540     5.456     3.876
                3         n/a         n/a        25.309   14.022    10.020     6.825     5.020
                4         n/a         n/a          n/a        24.508   14.577      9.484    7.686
                5         n/a         n/a          n/a           n/a       23.872   14.445     9.315
                6         n/a         n/a          n/a           n/a          n/a       24.387   13.634
                7         n/a         n/a          n/a           n/a          n/a           n/a      18.637

When none of the (L, K) values are excluded, the standard deviations of the L-K values of the smallest |L-K| values for 1, 2, 3, ..., and 8 cycles are 26.214, 13.923, 9.465, 6.918, 5.316, 4.213, 3.336, and 3.007 respectively.  For the c values less than or equal to 99997, the standard deviations of the L-K values of the smallest |L-K| values when (L1, K1), (L2, K2), (L3, K3), ..., (Li, Ki), i=1, 2, 3, ..., 7, are not included and there are 2, 3, 4, ..., 8 cycles are as follows;

         # cycles        2            3            4            5            6            7            8
             i=1      37.735   18.932   12.238      8.602     6.502     5.382     4.545
                2         n/a       34.344   18.520    11.294     8.939     6.320     5.110
                3         n/a         n/a        31.834   16.662    12.025    8.160      6.014
                4         n/a         n/a          n/a        30.582   17.415   11.584     7.892
                5         n/a         n/a          n/a           n/a       29.094   16.554   11.606
                6         n/a         n/a          n/a           n/a          n/a       32.073   18.093
                7         n/a         n/a          n/a           n/a          n/a           n/a      32.363

When none of the (L, K) values are excluded, the standard deviations of the L-K values of the smallest |L-K| values for 1, 2, 3, ..., and 8 cycles are 34.620, 18.719, 12.196, 8.565, 6.482, 5.307, 4.256, and 3.966 respectively.  For the c values less than or equal to 199999, the standard deviations of the L-K values of the smallest |L-K| values when (L1, K1), (L2, K2), (L3, K3), ..., (Li, Ki), i=1, 2, 3, ..., 7, are not included and there are 2, 3, 4, ..., 8 cycles are as follows;

         # cycles        2            3            4            5            6            7            8
             i=1      46.682   23.462   14.347    10.278     7.922     6.452     4.885
                2         n/a       41.609   21.938    13.610   10.057     7.595     5.576
                3         n/a         n/a        38.775   20.521    13.873     9.730     6.622
                4         n/a         n/a          n/a        35.499   20.758   13.006      8.901
                5         n/a         n/a          n/a           n/a       35.544   18.489   12.346
                6         n/a         n/a          n/a           n/a          n/a       34.944   18.806
                7         n/a         n/a          n/a           n/a          n/a           n/a      34.597

When none of the (L, K) values are excluded, the standard deviations of the L-K values of the smallest |L-K| values for 1, 2, 3, ..., and 8 cycles are 43.014, 23.079, 15.069, 10.349, 7.923, 6.528, 5.402, and 4.150 respectively.  Not including the sorted (L, K) values does not change the standard deviations much.  A cubic least-squares fit of the standard deviations of the L-K values when there are exactly two cycles and (L1, K1) is excluded for cmax values up to 99997 is;

p
1=0.1765 with a 95% confidence interval of (0.1543, 0.1987), p2=-4.005 with a 95% confidence interval of (-4.64, -3.37), p3=33.87 with a 95% confidence interval of (27.88, 39.87), and p4=-90.65 with a 95% confidence interval of (-109.3, -71.98).  SSE=2.833, R-square=0.993, adjusted R-square=0.993, and RMSE=0.1718.

(L, K) Trees

Cycles for a given c value with (L, K) values that are in arithmetic progression with an increment of (L1, K1) (and aren't multiples of (L1, K1)) are said to be associated with each other.  For the 3333 c values less than or equal to 9997, the numbers of c values having 1, 2, 3, ..., and 12 cycles (counting only one of interrelated or associated cycles) are 1115, 1319, 595, 186, 76, 31, 6, 2, 1, 0, 1, and 1 respectively.  This distribution has a mean of 1.0816.  For a Poisson probability distribution having this parameter, the expected numbers of c values having 1, 2, 3, ..., and 12 cycles are 1130, 1222, 611, 238, 64, 14, 3, 0, 0, 0, 0, and 0 respectively.  For the 6667 c values less than or equal to 19999, the numbers of c values having 1, 2, 3, ..., and 12 cycles (counting only one of interrelated or associated cycles) are 2260, 2618, 1152, 393, 161, 53, 17, 9, 2, 0, 1, and 1 respectively.  This distribution has a mean of 1.0817.  For a Poisson probability distribution having this parameter, the expected numbers of c values having 1, 2, 3, ..., and 12 cycles are 2260, 2445, 1322, 477, 129, 28, 5, 1, 0, 0, 0, and 0 respectively.  For the 10000 c values less than or equal to 29999, the numbers of c values having 1, 2, 3, ..., and 12 cycles (counting only one of interrelated or associated cycles) are 3450, 3896, 1707, 597, 232, 72, 28, 11, 4, 0, 2, and 1 respectively.  This distribution has a mean of 1.0697.  For a Poisson probability distribution having this parameter, the expected numbers of c values having 1, 2, 3, ..., and 12 cycles are 3431, 3670, 1963, 700, 187, 40, 7, 1, 0, 0, 0, and 0 respectively.  There are too many cycles for the larger x values for the Poisson probability distribution to model the actual distribution very well.  (The number of c values having only 1 cycle is modeled fairly well though.  For c less than or equal to 39997, there is only 1 cycle for 4681 c values, the distribution has a mean of 1.0601, and the expected number of c values having only 1 cycle is 4619.  For c less than or equal to 49999, there is only 1 cycle for 5909 cycles, the distribution has a mean of 1.0538, and the expected number of c values having only 1 cycle is 5811.)  (L, K) trees (generalized associated cycles) model the number of cycles better and are defined in the Journal of Integer Sequences article (cycles with (L, K) values that are in arithmetic progression with an increment of (L2, K2) are also said to be associated with each other, etc.) .  For the c values less than or equal to 9997, the numbers of c values having 1, 2, 3, ..., and 8 cycles (counting only one of interrelated cycles or one of cycles in (L, K) trees) are 1115, 1338, 636, 178, 58, 6, 2, and 0 respectively.  This distribution has a mean of 1.0255.  For a Poisson probability distribution having this parameter, the expected numbers of c values having 1, 2, 3, ..., and 8 cycles are 1195, 1226, 629, 215, 55, 11, and 2 respectively.  For the c values less than or equal to 1999, the numbers of c values having 1, 2, 3, ..., and 8 cycles (counting only one of interrelated cycles or one of cycles in (L, K) trees) are 2260, 2664, 1228, 381, 117, 14, 3, and 0 respectively.  This distribution has a mean of 1.0228.  For a Poisson probability distribution having this parameter, the expected numbers of c values having 1, 2, 3, ..., and 8 cycles are 2397, 2454, 1254, 428, 109, 22, 4, and 1 respectively.  For the c values less than or equal to 29999, the numbers of c values having 1, 2, 3, ..., and 8 cycles (counting only one of interrelated cycles or one of cycles in (L, K) trees) are 3450, 3980, 1805, 582, 158, 22, 3, and 0 respectively.  This distribution has a mean of 1.0096.  For a Poisson probability distribution having this parameter, the expected numbers of c values having 1, 2, 3, ..., and 8 cycles are 3644, 3679, 1857, 625, 158, 32, 5, and 1 respectively.  For the c values less than or equal to 39997, the numbers of c values having 1, 2, 3, ..., and 8 cycles (counting only one of interrelated cycles or one of cycles in (L, K) trees) are 4681, 5273, 2369, 773, 205, 27, 5, and 0 respectively.  This distribution has a mean of 0.9987.  For a Poisson probability distribution having this parameter, the expected numbers of c values having 1, 2, 3, ..., and 8 cycles are 4912, 4905, 2449, 815, 204, 41, 7, and 1 respectively.  For the c values less than or equal to 49999, the numbers of c values having 1, 2, 3, ..., and 8 cycles (counting only one of interrelated cycles or one of cycles in (L, K) trees) are 5909, 6579, 2907, 970, 262, 35, 5, and 0 respectively.  This distribution has a mean of 0.9933.  For a Poisson probability distribution having this parameter, the expected numbers of c values having 1, 2, 3, ..., and 8 cycles are 6172, 6131, 3045, 1008, 250, 50, 8, and 1 respectively.  A plot of the distributions for c less than or equal to 49999 is;

In this case, there are too few cycles for the larger x values but the Poisson probability distribution still models the distribution fairly well.  For the c values less than or equal to 199999, the numbers of c values having 1, 2, 3, ..., and 10 cycles (counting only one of interrelated cycles or one of cycles in (L, K) trees) are 25074, 26248, 10797, 3486, 893, 137, 28, 2, 2, and 0 respectively.  This distribution has a mean of 0.9413.  For a Poisson probability distribution having this parameter, the expected numbers of c values having 1, 2, 3, ..., and 10 cycles are 26008, 24482, 11522, 3615, 851, 160, 25, 3, 0, and 0 respectively.  The Poisson probability distribution still models the distribution fairly well.  The means of the distributions plotted against (cmax+1)/1000 or (cmax+3)/1000 for cmax=9997, 19999, 29999, ..., 199999 are;

Another way to model the number of cycles is to count only one of interrelated cycles, only one of associated cycles, and only one of cycles where the (L, K) values are a multiple of another common (L, K) value.  Counting the number of cycles this way, the numbers of c values for c less than or equal to 9997 having 1, 2, 3, ..., and 7 cycles are 1721, 1221, 318, 61, 11, 1, and 0 respectively.  This distribution has a mean of 0.6268.  For a Poisson probability distribution having this parameter, the expected numbers of cycles having 1, 2, 3, ..., and 7 cycles are 1781, 1116, 350, 73, 11, 1, and 0 respectively.  Counting the number of cycles this way, the numbers of c values for c less than or equal to 19999 having 1, 2, 3, ..., and 7 cycles are 3501, 2408, 624, 108, 22, 3, and 1 respectively.  This distribution has a mean of 0.6133.  For a Poisson probability distribution having this parameter, the expected numbers of cycles having 1, 2, 3, ..., and 7 cycles are 3611, 2214, 679, 139, 21, 3, and 0 respectively.  Counting the number of cycles this way, the numbers of c values for c less than or equal to 29999 having 1, 2, 3, ..., and 7 cycles are 5294, 3581, 937, 155, 28, 3, and 2 respectively.  This distribution has a mean of 0.6059.  For a Poisson probability distribution having this parameter, the expected numbers of cycles having 1, 2, 3, ..., and 7 cycles are 5456, 3306, 1001, 202, 31, 4, and 0 respectively.  Counting the number of cycles this way, the numbers of c values for c less than or equal to 39997 having 1, 2, 3, ..., and 7 cycles are 7124, 4765, 1196, 201, 40, 5, and 2 respectively.  This distribution has a mean of 0.5968.  For a Poisson probability distribution having this parameter, the expected numbers of cycles having 1, 2, 3, ..., and 7 cycles are 7341, 4381, 1307, 260, 39, 5, and 0 respectively.  Counting the number of cycles this way, the numbers of c values for c less than or equal to 49999 having 1, 2, 3, ..., and 7 cycles are 8925, 5963, 1461, 259, 49, 8, and 2 respectively.  This distribution has a mean of 0.5946.  For a Poisson probability distribution having this parameter, the expected numbers of cycles having 1, 2, 3, ..., and 7 cycles are 9197, 5468, 1626, 322, 48, 6, and 1 respectively.  (The numbers of cycles for the larger x values are modeled better.)  A plot of the distributions for c less than or equal to 49999 is;

For large upper bounds of c values (such as 199999), this approach doesn't model the number of cycles very well; there are too few cycles for the larger x values.  For cmax=199999, the numbers of cycles are 36517, 23653, 5268, 958, 193, 51, 17, 3, 2, and 0 respectively and the expected numbers of cycles are 37568, 21544, 6178, 1181, 169, 19, 2, 0, 0, and 0 respectively.

The Number of Prime Factors of 2K+L-3K

The number of prime factors of a natural number n where the prime factors are not necessarily distinct is denoted by Ω(n).  For 1≤L, K≤29, the numbers of values of 2K+L-3K where Ω(|2K+L-3K|) equals 1, 2, 3, 4, 5, 6, 7, and 8 are 117, 267, 229, 119, 63, 30, 8, and 6 respectively (there are no prime factors of 2K+L-3K in two instances, so the number of samples is 839 [292-2]).  A Poisson probability distribution where λ=1.8760 can be used to model this data.  A plot of the data superimposed on a Poisson probability distribution having the same mean (where the numbers of values are counted as being 0, 1, 2, 3, 4, 5, 6, and 7) is;

Corresponding data for smaller L, K upper bounds is;

   # prime factors=             1      2      3      4      5      6      7      8
L, K upper bound=2         2
                              3         7
                              4       11      2      1
                              5       17      5      1
                              6       19    11      4
                              7       26    16      5
                              8       29    21    11     1
                              9       36    27    15     1
                             10      37    36    22     3
                             11      46    46    23     4
                             12      48    54    28     8     3      1
                             13      54    65    36     8     3      1
                             14      56    75    41   17     4      1
                             15      58    90    48   21     5      1
                             16      61  100    54   28     7      4
                             17      67  113    66   29     8      4
                             18      67  121    76   36   14      8
                             19      75  133    87   40   15      9
                             20      76  144    97   47   22    11     0      1

21      83  157  108   55   24    11     0      1

22      83  166  124   68   27    13     0      1
                             23      90  185  133   75   30    13     0      1
                             24      91  192  148   79   38    18     3      5
                             25      98  209  164   84   42    18     3      5
                             26     101 219  179   95   50    22     3      5
                             27     107 229  201 104   55    22     4      5
                             28     113 240  210 113   62    30     8      6

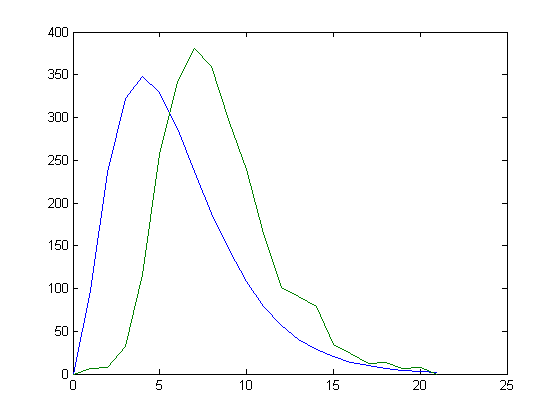

A plot of the means of these distributions is;

Corresponding Poisson probability distributions model the number of prime factors fairly well.  A linear least-squares fit of the means plotted against the logarithm of the maximum L, K value is;

p1=0.8852 with a 95% confidence interval of (0.838, 0.9324) and p2=-1.111 with a 95% confidence interval of (-1.24, -0.9823).  SSE=0.09954, R-square=0.9842, adjusted R-square=0.9836, and RMSE=0.0644.  The number of prime factors of 2K+L-3K affects the number of c values covered by the parity vectors corresponding to (K+L, K).

More on the Domain of 3n+c Cycles

In the following, all cycles are assumed to have been found for c values up to certain limits.  For the c values less than 1000, at least one primitive cycle where a>1 occurs for every c value except 1, 7, and 37.  The largest domain of the absolute values of the u values and the absolute values of their proxies occurs for a cycle for c=5; the domain is (-2.027326e-001, 3.465736e-001).  The domains of the cycles for most c values are one, two, or three orders of magnitude smaller.  For the c values less than 1000, the smallest domain occurs for a cycle for c=467; the domain is (-1.051072e-007, 1.944498e-007).  Small domains also occur for cycles for c=311 and c=343 (and other c values).  The smallest domains for cycles for larger c values appear to become increasingly smaller.  For example, for c=4501, nine primitive cycles where a>1 occur and the domains are as large as (-3.956808e-004, 1.654824e-003) and as small as (-7.278549e-008, 2.117179e-007).

When the domain of the absolute values of the u values and the absolute values of their proxies is small, the (K+L, K) value of the cycle is likely to be a generalized continued-fraction convergent of log(3)/log(2).  (Even for the c=1 cycle, the (K+L, K) value [(11, 7)] is a generalized continued-fraction convergent of log(3)/log(2).)  For example, when c=467, the (K+L, K) value is (84, 53), a continued-fraction convergent of log(3)/log(2).  When c=311, the (K+L, K) value is (19, 12), a continued-fraction convergent of log(3)/log(2).  When c=343, the (K+L, K) value is (149, 94), a generalized continued-fraction convergent of log(3)/log(2).  When the domain is small, (K+L, K) values that are small multiples (usually 2) of generalized continued-fraction convergents of log(3)/log(2) occur.  For example, when c=4501, the (K+L, K) value is (92, 58), twice a generalized continued-fraction convergent of log(3)/log(2).  When the domain is small, (K+L, K) values that are approximately equal to generalized continued-fraction convergents of log(3)/log(2) occur.  For example, for a cycle for c=407, the (K+L, K) value is (44, 28), almost equal to a generalized continued-fraction convergent ((46, 29)) of log(3)/log(2).  However, cycles occur for some c values where the domain appears to be small but there is no apparent relationship between the (K+L, K) values and the generalized continued-fraction convergents of log(3)/log(2).  This occurs for a cycle for c=1813 where the domain is (-7.915834e-007, 3.418000e-006) and the (K+L, K) value is (228, 132) and for a cycle for c=2009 where the domain is (-4.947314e-006, 1.590942e-005) and the (K+L, K) value is (175, 98).  The (K+L, K) values are fairly large multiples of approximations of generalized continued-fraction convergents of log(3)/log(2).  The domains are no longer "small" for all of the cycles of these large c values.

Extended Sequences of 3n+c Cycles

In this section, the element after an odd element i is defined to be 3i+c.  The shortest possible jump from an odd element in the 3n+c sequence to another odd element will be referred to as a "hop" (when the element after an odd element i is defined to be 3i+c, there are two even elements between the initial odd element and the destination of the jump).  An example of a "multiple-jump" attachment point (for c=11) is -21→-13→-7→-1, 8.  The attachment point is several jumps away from the odd integer divisible by 3, that is, -21 jumps to -13, -13 jumps to -7, -7 jumps to -1, and 8 immediately follows -1.  The jumps in multiple-jump attachment points usually consist of a jump followed by one or more hops or one or more hops followed by a jump.  On average, there are 1.2 jumps and 2.0 hops in a multiple-jump (based on the 3767 multiple-jump attachment points for the c values less than or equal to 1999).  One-jump attachment points (such as -21→-23, -68 [for c=1]) have some special properties.

An example of a "jumped-over" attachment point (for c=13) is 51→358.  The destination of the jump is not the attachment point associated with the odd integer divisible by 3; the attachment point (262 in this case) has been "jumped over".  Empirical results are;

(32)  The destination of a jumped-over attachment point is another attachment point if the destination is even.

(33)  The sign in an extended sequence can change only once.

If the sign in the extended sequence of a jumped-over attachment point changes, it usually does so at the attachment point.  For example, -63→74 for a cycle for c=95 where the attachment point 26 is jumped over.  The extended sequence up to 26 is {-63, -94, -47, -46, -23, 26}.  Sometimes there are several jumps before the attachment point is jumped over.  For example, -249→-287→-173→-89→118 for a cycle for c=169 where the attachment point 22 is jumped over.  The sequence up to 22 (starting with -89) is {-89, -98, -49, 22}.  Jumped-over attachment points become rare when the domain of the absolute values of the u values and the absolute values of their proxies becomes small.  As will be shown (by way of empirical evidence), the largest possible li value (in the chain equation) in a 3n+1 cycle (n>0) without a jumped-over attachment point is 5.  (Of course, determining whether jumped-over attachment points cease to exist for a sufficiently small domain would be difficult.)

An example of a "no-jump" attachment point (for c=11) is -3, 2.  The odd integer divisible by 3 is immediately before the attachment point.  Empirical results are;

(34)  In a cycle having an attachment point, there is at least one no-jump or one-jump attachment point.

(35)  In primary, secondary, tertiary, etc., attachment points, the types of attachment points that can occur have a specific order; a no-jump attachment point (not necessarily the primary attachment point) is followed by a jumped-over attachment point, the jumped-over attachment point is followed by a multiple-jump (or one-jump) attachment point, the multiple-jump (or one-jump) attachment point is followed by a no-jump attachment point, etc.

(36)  Except when the last attachment point in primary, secondary, tertiary, etc., attachment points is a jumped-over attachment point, the destination of a jumped-over attachment point is the next attachment point.

(37)  A jumped-over attachment point cannot be a primary attachment point.

In the chain equation, the element after an odd element i in the 3n+1 sequence (n>0)  is defined to be (3i+1)/2.  Counting the even element before a primary attachment point and the even elements up to the tertiary attachment point gives 6 even elements.  If there are primary, secondary, and tertiary attachment points in a cycle, one of them must be a jumped-over attachment point (by Proposition (35)).

Solving for a one-jump attachment point followed by a no-jump attachment point (in primary, secondary, tertiary, etc., attachment points) gives the Diophantine equation (3/2)h=(8t2+3c)/(t1+c) where 2h is the largest power of 2 that divides t1+c.  Solving for a no-jump attachment point followed by a jumped-over attachment point gives (3/2)i=(3/8)(t2+3c)/(t3+c) (usually, 2i is not the largest power of 2 that divides t3+c).  Solving for a jumped-over attachment point followed by a one-jump attachment point gives (3/2)i-j=3(t4+c)/(t3+c), etc.

Hardy and Littlewood13 proved that the sequence {frac(xn)} where frac(x) is the fractional part of x is equidistributed for almost all real numbers x>1 (the exceptional set has Lesbeque measure zero).  (A sequence of real numbers {xn} is equidistributed on an interval [a, b] if the probability of finding xn in any subinterval is proportional to the subinterval length.  The points of an equidistributed sequence form a dense set on the interval [a, b].)  The properties of {frac(3/2)n} have been extensively studied.  Since {frac(3/2)n} appears to be equidistributed (and thus dense), the equation (3/2)h=(8t2+3c)/(t1+c) (or one of the other equations) is likely to have many solutions (as can be easily verified).

The exponents of 3/2 in the above equations are small.  For example, for c=41, the attachment points for primary, secondary, tertiary, and quatenary attachment points for a cycle are 3→29, 128 (a one-jump attachment point), -3, 32 (a no-jump attachment point), -21→2 (an attachment point where 8 is jumped over [the sequence up to 8 is {-21, -22, -11, 8}]), and -87→-55→-31→-13, 2 (a multiple-jump attachment point).  The last attachment point is not a one-jump attachment point, but -31 can be substituted for t4 in the equation above.  t1=3, t2=-3, and t3=-21 and the values of h, i, and j are 2, 2, and 1 respectively.  For c=137, there are primary, secondary, tertiary, and quatenary attachment points for a cycle (starting with a one-jump attachment point) and the successive exponents of 3/2 are 4, 2, and 1.  For c=107, there are primary, secondary, tertiary, etc., attachment points for a cycle (starting with a no-jump attachment point) and the successive exponents of 3/2 are 2, 1, 1, and 3.  For c=4159, there are primary, secondary, tertiary, etc., attachment points for a cycle (starting with a one-jump attachment point) and the successive exponents of 3/2 are 1, 3, 2, 2, 2, and 1.  For c=4519, there are primary, secondary, tertiary, etc. attachment points for a cycle (starting with a one-jump attachment point) and the successive exponents of 3/2 are 2, 2, 1, 1, 2, and 1.  When there are more than three attachment points in primary, secondary, tertiary, etc., attachments points, the attachment points are frequently powers of 2 (for c≤151, the only exception occurs for the above cycle for c=137).  Another empirical result is;

(38)  The last attachment point in the group of primary, secondary, tertiary, etc., attachment points preceding a primary multiple-jump attachment point is a no-jump or jumped-over attachment point.

A Diophantine equation (similar in form to those derived for primary, secondary, tertiary, etc., attachment points) involving the t value of a multiple-jump attachment point (or at least the odd element at the beginning of the last jump of the multiple-jump) and the t value of the preceding no-jump or jumped-over attachment point can be derived.

The Simplified Structure of a 3n+c Cycle Having Attachment Points

Another empirical result is;

(39)  A primary attachment point is a multiple-jump attachment point only if the attachment point is one jump away from the first odd cycle element after the preceding primary attachment point.

A consequence of the above proposition (and Proposition (37)) is that a u value jumps (in one jump) to the next primary attachment point, or if its proxy isn't the odd integer immediately before the next primary attachment point, the proxy jumps (in one jump) to the odd integer immediately before the next primary attachment point, etc.  This is the aforementioned simplified structure of a cycle.

The Largest Power of 2 That Divides the Difference Between a u Value and Its Proxy

 Let 2j be the largest power of 2 that divides the difference between a u value and its proxy.  Empirical results are;

(40)  For a one-jump attachment point that is a primary attachment point, the expected value of j+1 is the number of odd elements in the jump (counting the destination of the jump).

(41)  For a multiple-jump attachment point that is a primary attachment point, j is small (the numbers of j values equal to 1, 2, 3, 4, 5, and 6 for the c values less than or equal to 997 are 555, 447, 82, 9, 1, and 1 respectively).

There is usually a one-jump attachment point in a cycle where j or j+1 equals the number of odd elements in the jump.  (For the c=1 cycle, -21≡-17(mod 22) and there are 3 odd elements in the jump.)  For example, when c=3013, there are 93 primitive cycles (with a total of 338 attachment points) having an (K+L, K) value of (38, 24) (a generalized continued-fraction convergent of log(3)/log(2)).  For 72 of the 202 primary one-jump attachment points, j+1 equals the number of odd elements in the jump and for 48 of the primary one-jump attachment points, j equals the number of odd elements in the jump.  A histogram of the differences between the number of odd elements in the jump and j is;

More on the Chain Equation

Note that the modulo operations (ut(mod 2j)) introduce variables corresponding to the ai values in the chain equation (in the chain equation, xi≡-1(mod 2k(i)) where xi is a local minimum).  Similarly, the odd integers before the attachment points in no-jump attachments points correspond to ai values so that there are the same number of variables as in the chain equation.  From this perspective, the c=1 cycle is a 1-cycle.  [The variables of the chain equation are k0=4, l0=1, a0=-1, k1=3, l1=3, and a1=-5.])  However, these equations don't have the same form as the chain equation (except for multiple-jump attachment points where the usual "path" is taken) since, for a one-jump attachment point, the attachment point equals 3i+c where i is the destination of the jump.  Similarly, these equations don't have the same form as the chain equation for no-jump attachment points.  Simons and de Weger show that all xi are about the same size by "chaining" them.  Their Lemma 6 is;

        For all i
= 0,1,..., m-1 we have xi+1 < bδxiδ

where b = (1 + X0-1)/21/δ and X0 is a lower bound of xmin.  For a one-jump attachment point, the next u value equals {[(3/2)f+1(t+c)-(c/2)]/2}/2g where 2f is the largest power of 2 that divides t+c.  This expression is less than (1/2)(3/2)f+1(t+c)=(1/2)(2f+1)δ-1(t+c).  If u and t are positive, t=2ja+u where a≥1, so the next u value is less than (1/2)[2f+1-j(2ja+u+c)]δ-1(t+c)=(2f+1-j)δ-1(1/2)(t+c)δ.  So if u and t are positive and f+1 (the number of odd elements in the jump [counting the destination of the jump]) is less than or equal to j, a result analogous to Lemma 6 can be derived (where b=(1+cX0-1)/21/δ and X0 is a lower bound for tmin).  For a no-jump attachment point, the next u value equals [(3/2)(t+c)-c]/2g.  This expression is less than (1/2)(3/2)(t+c), so if u and t are positive, a result analogous to Lemma 6 can be derived.  For a multiple-jump attachment point consisting of a jump followed by a hop, the odd element immediately before the attachment point is [(3/2)f+1(t+c)-(c/2)]/22.  The next u value then equals {[(3/2)f+2(t+c)+(5/4)c]/22}/2g.  This expression is not necessarily less than (1/2)(3/2)f+2(t+c).  For a multiple-jump attachment point consisting of a jump followed by two hops, the next u value equals {[(3/2)f+3(t+c)+(47/8)c]/23}/2g.

Simons and de Weger's Lemma 7 (derived from Lemma 6 and Corollary 5) is;


0 < Λ < mcm2-((δ -1)/ζ)K

where cm= 2(m/δ)(δ -1)/ζbδ/(δ-1)-m and ζ denotes δm-1.  (The symbol ζ is used due to typographical difficulties.)  Simons and de Weger's Lemma 14 (their main result) is;

   Let x=K1(m) be the largest solution of e-13.3(0.46057+log x)=mcm2-((δ -1)/ζ)x.  Then K<K1(m).

Complementary Variables

The expected number of odd elements in the jump (or jumps in the case of a multiple-jump attachment point) from t to the odd integer before a primary attachment point (including the destination of the jump or t in the case of a no-jump attachment point) is the number of even elements after the even element immediately before the primary attachment point (including the even element) plus the number of jumps (none for a no-jump attachment point, 1 for a one-jump attachment point, and at least 2 for a multiple-jump attachment point) minus the number of hops between u and the primary attachment point.  For example, for the c=1 cycle, there are 3 odds elements in the jump from -21 to -23, the even elements are -136, -68, and -34, and the hop between -17 and -68 is {-55, -164, -82, -41} (3=3+1-1).  A histogram of the number of odd elements in the jump (or jumps) from t to the odd integer before the primary attachment point minus the number of jumps plus the number of hops between u and the primary attachment point minus the number of even elements after the even element before the primary attachment point for the 22851 primary attachment points for the c values less than or equal to 1999 superimposed on a normal probability distribution having the same parameters is;

The mean of the distribution is -0.004901 and the standard deviation is 2.3789.  Other than being discrete-valued, the distribution resembles a normal probability distribution for small cmax values.  For c values less than or equal to 49, the mean is 0.5319 with a 95% confidence interval of (0.1571, 0.9067) and the standard deviation is 1.8299 with a 95% confidence interval of (1.6005, 2.1367).  A normal probability plot of the data is;



For c values less than or equal to 199, the mean is 0.3458 with a 95% confidence interval of (0.1694, 0.5221) and the standard deviation is 2.4152 with a 95% confidence interval of (2.2968, 2.5466).  A normal probability plot of the data is;

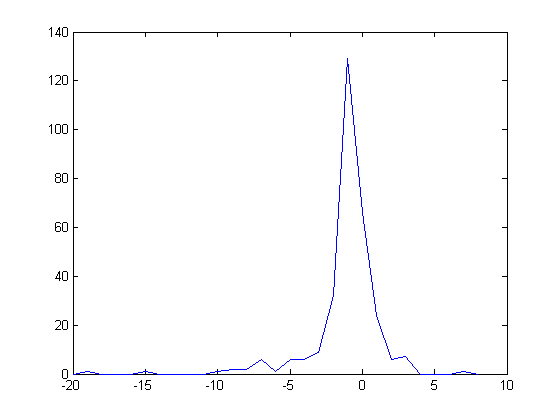

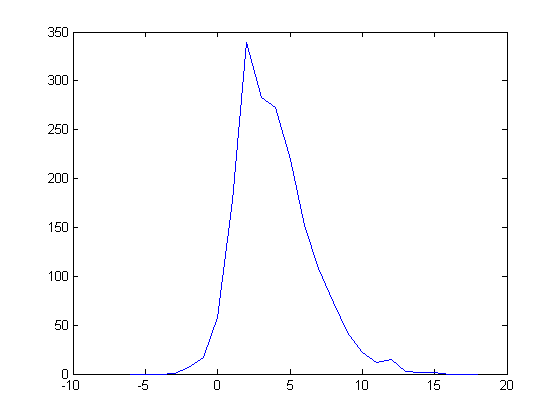

A histogram of the number of odd elements in the jump (or jumps) from t to the odd integer before the primary attachment point minus the number of jumps plus the number of hops between u and the primary attachment point minus the number of even elements after the even element before the primary attachment point for the 36112285 primary attachment points for the c values less than or equal to 199999 superimposed on a normal probability distribution having the same parameters is;

This distribution has a mean of -0.1381 and a standard deviation of 2.3462.  A plot of the standard deviations of the distributions versus cmax for cmax=9997, 1999, 2999, ..., 199999 is;

The distributions appear to be tending towards a fixed probability distribution.

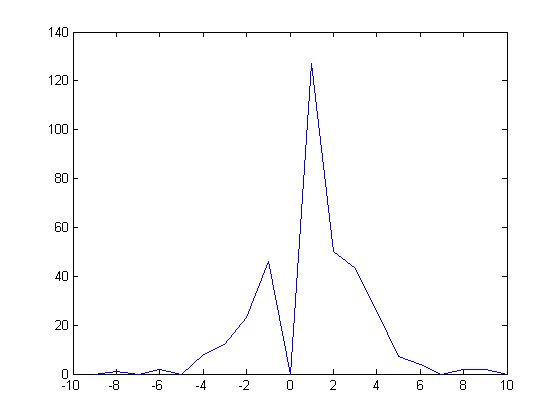

A histogram of the sum of the number of odd elements in the jumps from t values to the odd elements before the primary attachment points minus the sum of the number of jumps plus the number of hops in the cycle minus the sum of the number of even elements after the even element before the primary attachment points for the 3213 cycles less than or equal to 1999 is;

The above distribution has a mean of -0.03486 and a standard deviation of 6.1492.  The number of odd elements in the jumps from t to the odd element before a primary attachment point and the number of even elements after the even element before the primary attachment point are "complementary" variables.  A histogram of the sum of the number of odd elements in the jumps from the t values to odd elements before the primary attachment points minus the sum of the number of even elements after even elements before the primary attachment points for the 3213 cycles less than or equal to 1999 is;

The above distribution has a mean of -0.4591 and a standard deviation of 6.6471.  A quadratic least-squares fit of the standard deviations of these distributions plotted against log(cmax) for cmax=9997, 19999, 29999, ..., 199999 is;

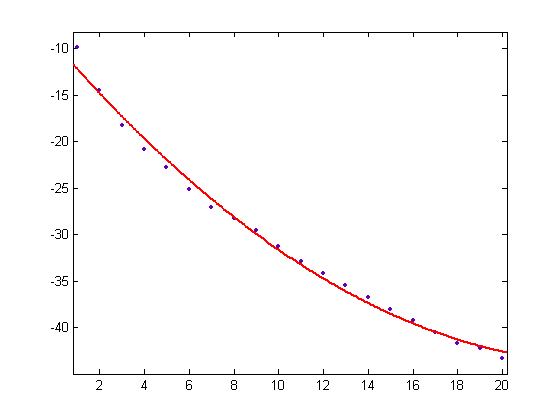

p1=0.8128 with a 95% confidence interval of (0.6758, 0.9497), p2=-12.93 with a 95% confidence interval of (-15.92, -9.95), and p3=59.63 with a 95% confidence interval of (43.45, 75.8).  SSE=0.7203, R-square-0.9975, adjusted R-square=0.9972, and RMSE=0.2058.  A quadratic least-squares fit of the means of these distributions plotted against log(cmax) for cmax=9997, 19999, 29999, ..., 199999 is;

p1=0.01189 with a 95% confidence interval of (0.008548, 0.1524), p2=-0.5579 with a 95% confidence interval of (-0.6302, -0.4855), and p3=-1.275 with a 95% confidence interval of (-1.605, -0.9451).  SSE=0.7506, R-square=0.9887, adjusted R-square=0.9874, and RMSE=0.2101.

The number of jumps from t to the odd element before a primary attachment point and the number of hops between the corresponding u value and the primary attachment point are complementary variables.  A histogram of the number of hops in the cycle minus the sum of the number of jumps from t values to the odd elements before the primary attachment points for the 3213 cycles less than or equal to 1999 is;

The above distribution has a mean of 0.4242 and a standard deviation of 5.2375.  A quadratic least-squares fit of the standard deviations of the distributions plotted against log(cmax) for cmax =9997, 19999, 29999, ..., 199999 is;

p1=0.2415 with a 95% confidence interval of (0.2038, 0.2793), p2=-2.73 with a 95% confidence interval of (-3.552, -1.908), and p3=11.83 with a 95% confidence interval of (7.368, 16.28).  SSE=0.0547, R-square=0.9993, adjusted R-square=0.9992, and RMSE=0.05672.  The means of the distributions are approximately equal to 0.

Chaining u Values Together and Chaining t Values Together

Let n denote the number of jumps in the multiple-jump of a primary multiple-jump attachment point.  Also, let n equal 1 for a primary one-jump attachment point and let n equal 0 for a primary no-jump attachment point.  Let h denote the number of hops between u and the primary attachment point, let f denote the number of odd elements in the jump (or jumps) from t to the odd element immediately before the attachment point (let f equal 0 for a no-jump attachment point), and let g denote the number of even elements after the even element before the primary attachment point.  As previously shown, {[(3/2)f+1(t+c)]/2n}/2g is less than the next u value for no-jump and one-jump attachment points and greater than the next u value for multiple-jump attachment points.  Assuming these deficiencies and excesses cancel out, ∏{[(3/2)f(i)+1(ti+c)]/2n(i)}/2g(i) is approximately equal to ∏ui where the product is from i=1 to a.  [2∑(f(i)+1)-∑j(i)]δ-1/2g(i) is usually less than 1, so if the u and t values are positive, ∏(ti+c )δ/2n(i) should be greater than ∏ui.  (Of the 3212 cycles for the c values less than or equal to 1999, [2∑(f(i)+1)-∑j(i)]δ-1/2g(i) is greater than 1 in only 37 instances and its largest value is 17.31905.)  In proving Lemma 6, Simons and de Weger show that (1/2)(xi+1)δ>xi+1.  Similarly, if the u values are positive, (1/2)(ui+c)δ is greater than the next local minimum (possibly the destination of a hop).  An empirical result is;

(42)  The u values can be chained together, that is, |ui+c|δ is almost always greater than |ui+1|.  The corresponding  t values can be chained together, that is, 2n(i)|ti+c|δ is almost always greater than |ti-1|.  Also, 2n(i)|ti+c|δ is almost always greater than |ui+1|.  (The u and t values are indexed circularly.)

Note that there are no restrictions on the signs of the u and t values in the above proposition.  Of the 22843 primary attachment points of the c values less than or equal to 1999, the chain of u values is broken only 23 times (in every instance, the next primary attachment point doesn't have an associated secondary attachment point).  Of the 22843 primary attachment points of the c values less than or equal to 1999, the chain of proxies is broken only 47 times.  The t value of a primary multiple-jump attachment point where the multiple-jump consists of two jumps, two hops, or a jump and a hop can be chained (without scaling by a factor of 22) with the t value of the preceding attachment point (not necessarily primary).  (If |t+c|=2h, then the absolute value of the preceding t value equals 3h [an empirical result] so that |t+c|δ equals the absolute value of the preceding t value.)  Chaining one of these t values to the t value of the preceding primary attachment point is then apt to fail (even after scaling by a factor of 22) when the preceding primary attachment point has associated secondary, tertiary, quatenary, etc. attachment points.  This accounts for 38 out of the 47 instances where the chain of proxies is broken.  In 3 other instances, the t value of a primary one-jump attachment point can't be chained to the t value of the preceding primary attachment point.  This occurs when the preceding primary attachment point has associated secondary and tertiary (and quatenary) attachment points.  Of the 22843 primary attachment points of the c values less than or equal to 1999, 2n(i)|ti+c|δ is less than |ui+1| in 99 instances and 96 of these instances occur when the multiple jump of a primary multiple-jump attachment point consists of two jumps, two hops, or a jump and a hop.  The corresponding definition of b in Lemma 6 is b=|1+cX0-1| where X0 is multiple-valued, that is, if u or t is positive, then u or t is greater than X0, or if u or t is negative, then u or t is less than -X0.  (Note that b=1+cX0-1 or |1-cX0-1|.)  m-cycles then become a-cycles.  ca is then defined so that |1+cX0-1|ab(δ/(δ-1))(ζ/(δ-1)-a)=caζ/(δ-1), that is, ca=bδ/(δ-1)-a/ζ where ζ denotes δa-1.  ∑(1/|ui|+1/|ti|) where the summation is from i=1 to a is less than a/umin+a/tmin, so the corresponding version of Lemma 7 (empirically derived) is;

(43)  |Λ|<5caca2-((δ-1)/ζ)K

X0 can be defined to be the smallest |u| or |t| value in the cycle or an empirically derived lower bound of the minimum.  For the c=121 cycle, L=42, K=46, a=10, the largest negative proxy value is -9, the smallest positive proxy value is 21, and the smallest u value is 19.  Λ equals 10.46078661.  Assuming this is the only c=121 10-cycle in existence, X0 can be set to 9.  b then equals 14.44444444 or 12.44444444.  ca then equals 1059.577577 or 718.2799973.  5caca2-((δ-1)/ζ)K then equals 5310117 or 359969.  This test (where X0 is set to the smallest |u| or |t| value in the cycle) fails for 489 of the 663743 cycles with attachment points for the c values less than or equal to 199999.  In almost every case, the (K+L, K) value of the cycle is approximately equal to the (K+L, K) value of an M-cycle generated from the parity vector p and a is small.  In every case, L<K and a≤10.  Usually (in all but 45 cases), the cycle is a 1-cycle where the inequality simplifies to |Λ|<5cb2-K.  Setting the X0 value to 17 for the c=1 cycle gives 5cb2-K equals 0.04136029 or 0.03676471 (Λ=-0.06566703).  Denote the (L, K) value of a cycle generated from the parity vector p by (L', K').  If the (L, K) value of a cycle doesn't equal that of an M-cycle generated from the parity vector p, but K=K' for some K', set d to L'-L, otherwise set d to zero.  If KK' for any K' then set d to L'-L where L' corresponds to the first K' >K.  A histogram of the d values for the cycles where a≠1 is;

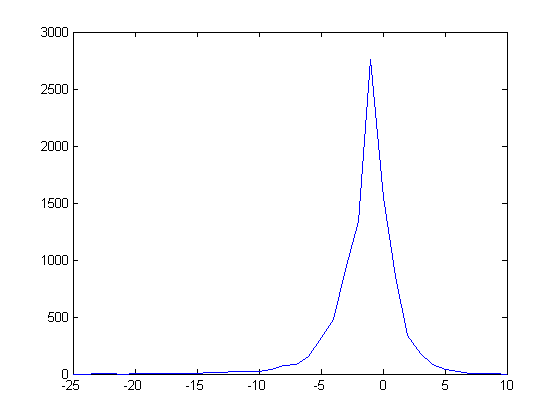

In two instances, the d value is negative.  A histogram of the d values for the cycles where a=1 is;

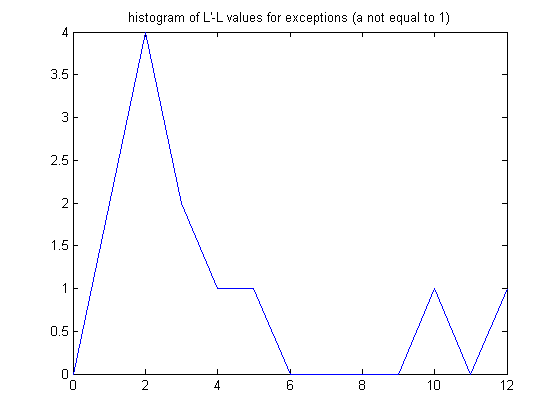

The (c, L, K, a, utmin) values for the exceptions when a≠1 are (295, 12, 18, 2, 281), (679, 24, 36, 5, 669), (2381, 20, 30, 5, 2349), (2647, 23, 32, 4, 2589), (3221, 14, 21, 2, 3187), (3623, 15, 23, 3, 3609), (4741, 13, 19, 2, 4743), (6511, 15, 22, 2, 6441), (6661, 23, 33, 5, 6621), (9145, 20, 30, 3, 9171), (12769, 21, 28, 3, 12699), (13085, 12, 18, 3, 13123), (16105, 14, 21, 4, 16083), (17753, 16, 24, 4, 17751), (22885, 24, 38, 6, 22859), (24817, 15, 21, 2, 25083), (27713, 38, 62, 10, 27753), (31727, 14, 23, 4, 31713), (33313, 9, 12, 3, 33303), (37465, 12, 18, 2, 37479), (42665, 16, 40, 3, 43689), (50857, 9, 30, 2, 52393), (58045, 12, 16, 3, 58117), (71873, 16, 14, 2, 72041), (71873, 16, 24, 3, 71899), (72023, 14, 20, 4, 72073), (73811, 20, 30, 6, 74013), (73811, 20, 30, 5, 73901), (82955, 12, 16, 2, 82827), (86233, 24, 36, 4, 86515), (103427, 8, 12, 2, 103395), (104551, 39, 60, 9, 104845), (108521, 22, 34, 4, 108487), (116449, 20, 28, 5, 1166871), (127735, 16, 24, 5, 127593), (130955, 20, 30, 4, 130827), (130955, 20, 30, 5, 130969), (138503, 14, 21, 2, 138173), (138503, 14, 21, 3, 138609), (145201, 23, 38, 5, 145359), (154403, 12, 18, 2, 154365), (154403, 12, 18, 4, 154395), (159523, 24, 36, 5, 159387), (172555, 14, 21, 3, 172713), and (192685, 16, 24, 192191).   In every instance, the test passes when b is set to 1+cX0-1 and fails when b is set to |1-cX0-1| (the respective values of 5caca2-((δ-1)/ζ)K in the latter case are 0.3691, 0.3922, 1.4575, 2.7252, 0.2127, 0.1860, 0.0061, 0.3373, 0.6257, 0.1063, 0.6044, 0.8059, 0.1618, 0.0011, 0.0397, 1.6251, 0.0417, 0.0299, 0.0977, 0.0529, 4.6475, 1.2214, 1.1050, 0.2577, 0.0566, 0.2069, 1.1974, 0.2520, 1.4361, 1.5065, 0.5626, 0.9057, 0.0226, 1.2505, 0.4705, 0.3435, 0.0024, 1.1474, 0.5873, 0.2706, 0.1224, 0.0032, 0.1931, 0.9929, and 0.7907 and the respective values of |Λ| are 1.0194, 2.0388, 1.6990, 2.9675, 1.1893, 1.0715, 1.3071, 1.4770, 2.5620, 1.6990, 3.2031, 1.0194, 1.1893, 1.3592, 1.2279, 1.8824, 1.2008, 0.3784, 1.3727, 1.0194, 5.1282, 5.9256, 1.8303, 1.3592, 1.3592, 1.5948, 1.6990, 1.6990, 1.8303, 2.0388, 0.6796, 2.7048, 1.4634, 2.5099, 1.3592, 1.6990, 1.6990, 1.1893, 1.1893, 0.5347, 1.0194, 1.0194, 2.0388, 1.1893, and 1.3592).  In every instance, the smallest |u| or |t| value in the cycle is approximately equal to c.  A plot of c versus utmin is;

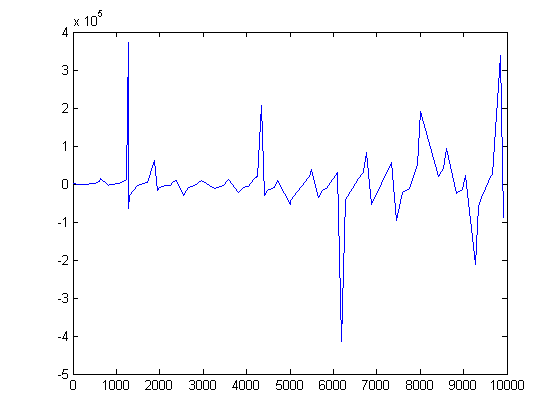

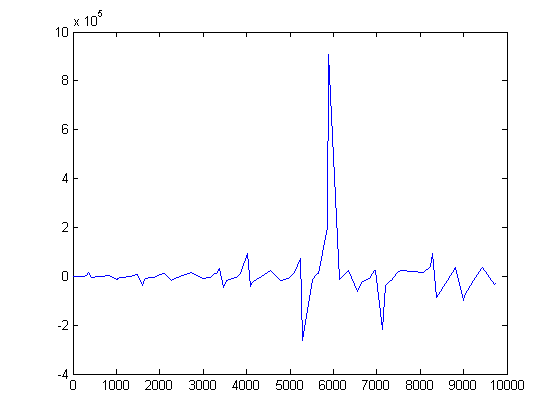

A plot of the relative errors is;

The two large negative spikes in the middle of the graph correspond to the two negative d values in a previous graph.  A similar relationship between c and utmin is not valid for exceptions when a=1.

When only umin is considered (and a factor of 16.0 is used instead of 5.0), the inequality  fails for 359 of the cycles for c≤199999.  In all but 72 instances, the cycle is a 1-cycle.  In every instance, L<K and a≤13.  A histogram of the d values for a≠1 is;

Only one value is negative.  A histogram of the d values when a=1 is;

A plot of c versus umin is;

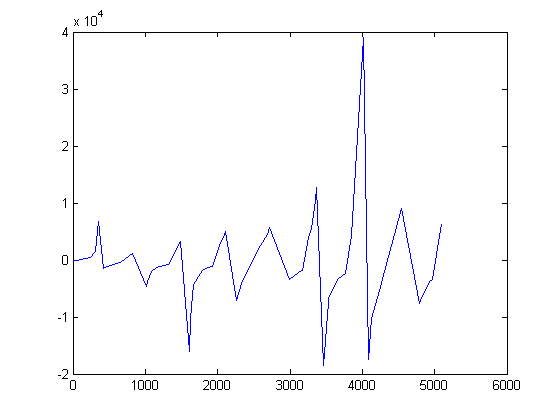

A plot of the relative errors is;

The large negative spike in the middle of the graph corresponds to the negative d value in a previous graph.

When only tmin is considered (and a factor or 128.0 is used), the inequality fails for 140 of the cycles where c≤199999.  In all but 12 cycles, the cycle is a 1-cycle.  In every instance L≤K and a≤13.  A histogram of the d values for a≠1 is;

A histogram of the d values for a=1 is;

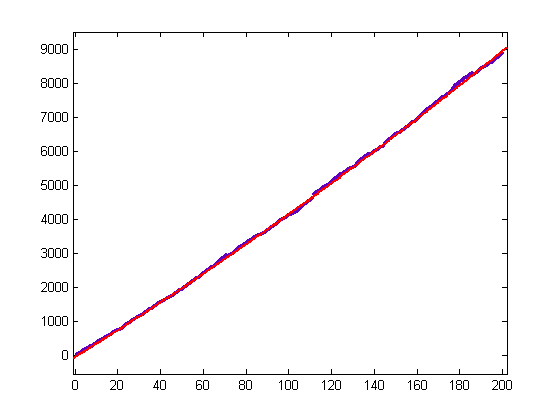

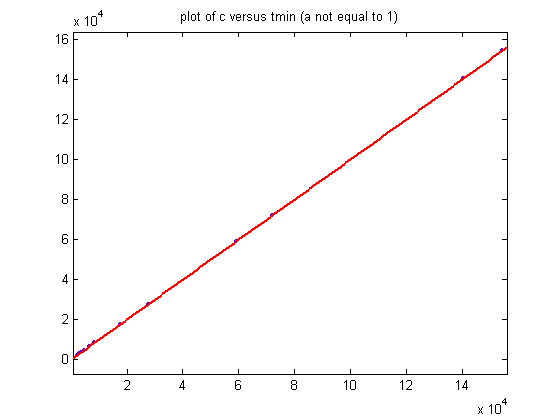

A plot of c versus tmin is;

For a linear least-squares fit of the curve, the slope is 0.9996 with a 95% confidence interval of (0.9993, 1), the intercept is 10.85 with a 95% confidence interval of (-14.19, 35.9), and R-squared=1.  A plot of the relative errors is;

Local Maximum and Minimum Odd Elements in a 3n+c Cycle

Let locmin denote the odd element between two successive primary attachment points having the smallest absolute value.  Usually, for a one-jump attachment point, locmin equals u or is a few successive hops away from u.  For the 4234 primary one-jump attachment points for the c values less than or equal to 997, the numbers of attachment points where 0, 1, 2, 3, 4, 5, and 6 hops are required to reach locmin are 3677, 358, 102, 19, 5, 1, and 0 respectively.  For 72 of the attachment points, locmin can't be reached by successive hops away from u.  These proportions don't change much for different c upper bounds; a table of proportions where i denotes the number of hops and n denotes the number of primary one-jump attachment points is;
   cmax=   49999 	         99997	       149999	      199999

 i=0   9.087466e-001  9.103450e-001  9.108970e-001  9.111167e-001
  1   6.377740e-002  6.288359e-002  6.253354e-002  6.238482e-002
  2   1.576506e-002  1.560997e-002  1.560444e-002  1.560868e-002
  3   4.056629e-003  3.968739e-003  3.938980e-003  3.916318e-003
  4   9.995667e-004  9.866914e-004  9.902790e-004  9.858214e-004
  5   2.581761e-004  2.566830e-004  2.553726e-004  2.519073e-004
  6   6.479131e-005  6.738539e-005  6.547580e-005  6.579589e-005
  7   1.088098e-005  1.285856e-005  1.365493e-005  1.372299e-005
  8   0.000000e+000  9.765999e-007  2.544396e-006  2.819064e-006
  9   4.945902e-007  4.882999e-007  5.936925e-007  6.382787e-007
 10   0.000000e+000  0.000000e+000  8.481321e-008  5.318989e-008
  -   6.320368e-003  5.867575e-003  5.698006e-003  5.652702e-003

 n=	 2021876	6143765        11790616       18800566
Let locmax denote the odd element between two successive primary attachment points having the largest absolute value.  Let i denote the last odd element before the second primary attachment point.  If locmax≠i, the attachment point (that is, the second primary attachment point) is usually a no-jump attachment point, but can occasionally be a one-jump attachment point (but not a jumped-over or multiple-jump attachment point).  For the c values less than or equal to 997, there are 1622 primary attachment points where locmax≠i and 1489 of these are no-jump attachment points and 133 are one-jump attachment points.

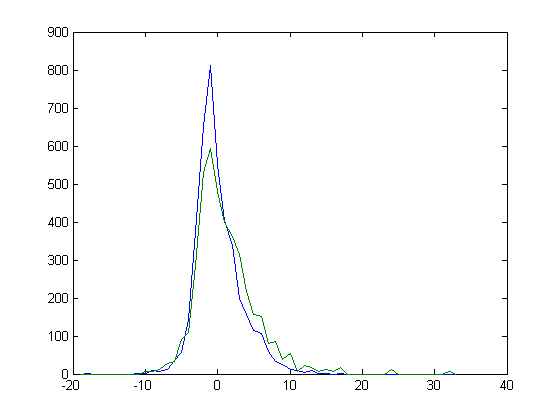

A histogram of the differences between the number of odd elements in primary one-jump attachment points and the j values for the c=467 cycles where the (K+L, K) values are (84, 53) is;

A histogram of the differences between the number of odd elements in primary one-jump attachments points and the j values for the c=311 cycles where the (K+L, K) values are (19, 12) is;

As expected, the shoulders on the peak for the c=311 cycles are broader than those on the peak for the c=467 cycles (taking into account the different numbers of primary one-jump attachment points).  When j is greater than the number of odd elements in the jump, locmin is usually not equal to u.  An empirical result is;

(44)  When j equals the number of odd elements in a primary one-jump attachment point, locmin equals u.

When locmin doesn't equal u, the difference between the number of odd elements in the jump and the j value ranges from -11 to 10 for the c values less than or equal to 997.  The corresponding numbers of attachment points are 1, 0, 0, 1, 2, 8, 15, 7, 30, 69, 113, 0, 25, 118, 89, 45, 18, 8, 2, 2, 3, and 1.  The corresponding numbers of attachment points where locmin can't be reached by successive hops away from u are 0, 0, 0, 0, 0, 1, 0, 0, 4, 5, 6, 0, 25, 12, 11, 5, 2, 0, 0, 0, 1, and 0.  Note that these attachment points account for all of the attachment points where j+1 equals the number of odd elements in the jump and that most of these attachment points occur when j is less than the number of odd elements in the jump.  A histogram of the number of odd elements in the jump minus the j value for the primary one-jump attachment points where locmin doesn't equal u and locmin can't be reached by successive hops away from u for the c values less than or equal to 3997 is;

This distribution has a mean of 1.056657 and a standard deviation of 2.295541.  A histogram of the number of odd elements in the jump minus the j value for the primary one-jump attachment points where locmin doesn't equal u but locmin can be reached by successive hops away from u for the c values less than or equal to 3997 is;

This distribution has a mean of .6050493 and a standard deviation of 2.969974.  When j is greater than the number of odd elements in the jump, locmax is usually not equal to the last odd element before the attachment point.  An empirical result is;

(45)  When j equals the number of odd elements in a primary one-jump attachment point, locmax equals the last odd element before the attachment point.

When locmax doesn't equal the last odd element before the attachment point, the difference between the number of odd elements in the jump and the j value ranges from -6 to 2  for the c values less than or equal to 997.  The corresponding numbers of attachment points are 1, 5, 0, 5, 10, 24, 0, 87, and 1.  For the c=467 cycles where (K+L, K) equals (84, 53), the difference between the number of odd elements in the jump (1) and the j value ranges from -4 to 0.  The corresponding numbers of attachment points are 1, 4, 7, 6, and 14.

For primary multiple-jump attachment points, locmin equals u and locmax equals the last odd element before the attachment point.  For the c values less than or equal to 997, the numbers of primary multiple-jump attachments points where j equals 1, 2, 3, ..., 7 are 556, 447, 82, 9, 1, 1, and 0 respectively (there are 1096 primary multiple-jump attachment points).  The proportions don't change much for different c upper bounds; a table of proportions where n denotes the number of primary multiple-jump attachment points is;
 cmax=	49999	      99997	     149999	    199999

 j=1  5.018008e-001  5.008240e-001  5.004788e-001  5.004156e-001
  2  4.099361e-001  4.108239e-001  4.110778e-001  4.110728e-001
  3  7.693787e-002  7.689667e-002  7.703393e-002  7.706442e-002
  4  9.129327e-003  9.315844e-003  9.303581e-003  9.330295e-003
  5  1.855497e-003  1.810723e-003  1.794086e-003  1.802707e-003
  6  2.786773e-004  2.807546e-004  2.665826e-004  2.699150e-004
  7  5.467719e-005  4.341567e-005  3.855657e-005  3.664347e-005
  8  7.055122e-006  3.473253e-006  5.723242e-006  6.233167e-006
  9  0.000000e+000  1.157751e-006  9.036697e-007  1.133303e-006
 10  0.000000e+000  0.000000e+000  0.000000e+000  1.888838e-007
 11  0.000000e+000  0.000000e+000  0.000000e+000  0.000000e+000

n=     566964	      1727487	      3319797	     5294259
For a primary no-jump attachment point, the probability that j equals 1 is about 1/2, the probability that j equals 2 is about 1/4, the probability that j equals 3 is about 1/8, etc.  For the c values less than or equal to 997, the numbers of primary no-jump attachment points where j equals 1, 2, 3, ..., 12 are 1265, 627, 302, 152, 83, 37, 18, 18, 3, 1, 2, and 0 respectively.  For the c values less than or equal to 199999, the numbers of primary no-jump attachment points where j equals 1, 2, 3, ..., 21 are 6008288, 2998990, 1505485, 750484, 377569, 188532, 94326, 46823, 23613, 11593, 5914, 3000, 1368, 729, 423, 230, 68, 21, 2, 2, and 0 respectively (there are 12017460 primary no-jump attachment points).

The Largest Power of 2 That Divides the Difference Between a u Value and Its Proxy and the Generalized Continued-Fraction Convergents of log(3)/log(2)

A histogram of j minus the number of jumps from t to the odd integer before the primary attachment point plus the number of hops between u and the primary attachment point minus the number of even elements after the even element before the primary attachment point for the 22851 primary attachment points for the c values less than or equal to 1999 is;

j and the number of even elements after the even element before a primary attachment point are complementary variables.  A histogram of j minus the number of even elements after the even element before the primary attachment point for the 22851 primary attachments points for the c values less than or equal to 1999 is;

A histogram of j minus the number of even elements after the even element before the primary attachment point for the 36112285 primary attachment points for the c values less than or equal to 199999 is;

This distribution has a mean of -0.7955 and a standard deviation of 2.0347.  For cmax=9997, 1999, 2999, ..., 199999, the standard deviations of the distributions are 2.0402, 2.0386, 2.0378, 2.0377, 2.0359, 2.0356, 2.0346, 2.0348, 2.0349, 2.0346, 2.0348, 2.0347, 2.0346, 2.0346, 2.0347, 2.0345, 2.0346, 2.0345, 2.0346, and 2.0347 respectively.  The means of the distributions are approximately equal to -0.8.  The distribution doesn't change much for different c upper bounds.

For c values less than or equal to 499, this distribution has a mean of -0.5522 and a standard deviation of 2.0706 (there are 3200 primary attachment points).  For c=467 (and (K+L, K)=(84, 53)), the distribution has a mean of 0.1892 and a standard deviation of 2.1805 (there are 111 primary attachment points).  Since there are no jumped-over attachment points, the differences between the j values and the numbers of even elements after the even element before the primary attachment point are skewed to the positive side.  (The differences range from -3 to 9 and the histogram values are 1, 15, 39, 21, 15, 8, 4, 1, 3, 1, 0, 2, and 1 respectively.)  Apparently, there is a limit to how skewed the distribution can be for a given c value.  For c=107, there is apparently only one cycle and the (K+L, K) value is (106, 53).  Since the number of even and odd elements in the cycle are the same, the differences between the j values and the numbers of even elements after the even element before the primary attachment point are skewed to the negative side.  The distribution has a mean of -1.4 and a standard deviation of 3.0984 (there are 10 primary attachment points).  (The differences range from -9 to 2 and the histogram values are 1, 0, 0, 0, 0, 0, 1, 2, 2, 1, 2, and 1 respectively.)  In cycles having the same number of even and odd elements and where the number of odd elements equals the denominator of a generalized continued-fraction convergent of log(3)/log(2), j minus the number of even elements after the even element before the primary attachment point is no more negative (approximately) than the difference for cycles having the (K+L, K) value of a generalized continued-fraction convergent of log(3)/log(2) is positive (an empirical result).

A histogram of the sum of the j values minus the sum of the number of even elements after the even element before the primary attachment point for the 3213 cycles with attachment points for the c values less than or equal to 1999 is;

This distribution has a mean of -5.2770 and a standard deviation of 8.9742.  The difference between the sum of the j values and the sum of the numbers of even elements after the even element before the primary attachment point is likely to be the most negative in cycles having more even elements than odd elements.  The largest difference appears to very slowly increase as c increases.  A quadratic least-squares fit of the means of the distributions plotted against (cmax+1)/1000 or (cmax+3)/1000 for cmax=9997, 19999, 29999, ..., 199999 is;

(The coefficients are poorly conditioned when the means are plotted against cmax.)  p1=0.0561 with a 95% confidence interval of (0.04223, 0.06996), p2=-2.778 with a 95% confidence interval of (-3.078, -2.478), and p3=-9.464 with a 95% confidence interval of (-10.83, -8.097).  SSE=12.89, R-square=0.9927, adjusted R-square=0.9919, and RMSE=0.8709.

A histogram of j minus the number of even elements after the even element before the primary attachment point where the (K+L, K) value of the cycle equals a generalized continued-fraction convergent of log(3)/log(2) for the c values less than or equal to 9997 is;

This distribution has a mean of 0.03171 and a standard deviation of 2.0258 (there are 9462 samples).  A histogram of the sum of the j values minus the sum of the numbers of even elements after the even element before the primary attachment point where the (K+L, K) value of the cycle equals a generalized continued-fraction convergent of log(3)/log(2) for the c values less than or equal to 9997 is;

This distribution has a mean of 0.07266 and a standard deviation of 3.0704 (there are 4129 samples).

A histogram of j minus the number of even elements after the even element before the primary attachment point where the number of even and odd elements in the cycle are the same and the K value equals the denominator of a generalized continued-fraction convergent of log(3)/log(2) for the c values less than or equal to 9997 is;

This distribution has a mean of -0.6945 and a standard deviation of 1.9292 (there are 2236 samples).  A histogram of the sum of the j values minus the sum of the numbers of even elements after the even element before the primary attachment point where the number of even and odd elements in the cycle are the same and the K value equals the denominator of a generalized continued-fraction convergent of log(3)/log(2) for the c values less than or equal to 9997 is;

This distribution has a mean of -4.0262 and a standard deviation of 4.8975 (there are 764 samples).

A histogram of the sum of the j values plus d/δ minus the sum of the numbers of even elements after the even element before the primary attachment point where the number of even and odd elements in the cycle are the same and the K value equals the denominator of a generalized continued-fraction convergent of log(3)/log(2) for the c values less than or equal to 9997 is;

This distribution has a mean of 1.0524 and a standard deviation of 4.1845 (there are 764 samples).  This distribution resembles the corresponding distribution where the (K+L, K) values equal those of a generalized continued-fraction convergent of log(3)/log(2).  A histogram of these values scaled by 4129/764 (the ratio of the sample sizes) superimposed on the corresponding distribution where the (K+L, K) values equal those of a generalized continued-fraction convergent of log(3)/log(2) is;

For c≤19999, there are 5288 cycles having the (K+L, K) value of a generalized continued-fraction convergent of log(3)/log(2) and there are 1903 cycles having an equal number of even and odd elements and a K value equal to the denominator of a generalized continued-fraction convergent of log(3)/log(2).  The corresponding histograms are;

In general, adding d/δ "normalizes" values so that they can be compared to those of cycles having the (K+L, K) values generated by the parity vector p.

The Distribution of [3·log(c)]-a Values

A histogram of [3·log(cmax)]-[3∙log(c)]+a for the 4897 cycles for cmax=2999 superimposed on a chi-square distribution with 6 degrees of freedom is;

This distribution has a mean of 12.1873 and a standard deviation of 10.0945.  [3·log(cmax)]=24, so about 91% of the [3·log(c)]-a values are non-negative.  A histogram of [3·log(cmax)]-[3·log(c)]+a for the 23132 cycles for cmax=9997 is;

This distribution has a mean of 15.2292 and a standard deviation of 19.0883.  [3·log(cmax)]=27, so about 85% of the [3·log(c)]-a values are non-negative.  For cmax equal to 997, 1999, 2999, ..., and 19999, the means of these distributions are 7.6247, 9.5976, 12.1873, 12.4800, 13.6209, 15.1857, 14.8543, 13.2578, 14.7518, 15.2292, 15.8069, 17.2515, 17.6940, 18.1386, 18.1259, 19.6618, 19.7332, 20.1047, 20.4672, and 20.9466 respectively and the standard deviations are 5.6051, 8.5752, 10.0945, 12.1485, 13.3792, 14.7405, 15.9844, 16.5977, 18.0075, 19.0883, 20.1579, 21.1702, 21.8124, 22.9374, 23.5984, 24.4908, 25.1141, 25.8074, 26.3705, and 27.1986 respectively.  (The values of [3·log(cmax)] minus the means are 12.3753, 12.4024, 11.8127, 11.5200, 11.3791, 10.8143, 11.1457, 12.7422, 12.2482, 11.7708, 11.1931, 10.7485, 10.3060, 9.8614, 9.8741, 9.3382, 9.2667, 8.8953, 8.5328, and 8.0534 respectively.)  The distributions resemble a chi-square probability distribution (or an exponential probability distribution), but since the means and standard deviations increase, the probability that [3·log(c)]-a takes on a specific value is not fixed.  For example, proportions of some [3·log(c)]-a values (denoted by i) for the different distributions are;

   cmax=  997    1999    2999    3997    4999    5999    6997    7999    8999    9997
    i=0   .0045   .0056   .0078   .0081   .0082   .0086   .0080   .0070   .0072   .0072
       1   .0071   .0084   .0102   .0113   .0102   .0101   .0096   .0082   .0083   .0083
       2   .0109   .0115   .0127   .0127   .0120   .0113   .0106   .0085   .0083   .0081
       3   .0084   .0100   .0098   .0102   .0113   .0118   .0108   .0089   .0089   .0091
       4   .0161   .0153   .0159   .0143   .0133   .0131   .0122   .0101   .0098   .0095
       5   .0141   .0140   .0153   .0146   .0147   .0144   .0135   .0112   .0114   .0114
       6   .0206   .0174   .0169   .0169   .0158   .0151   .0140   .0117   .0117   .0117
       7   .0308   .0240   .0216   .0184   .0168   .0168   .0151   .0127   .0122   .0124
       8   .0219   .0215   .0196   .0177   .0186   .0179   .0166   .0133   .0129   .0131
       9   .0379   .0321   .0296   .0265   .0239   .0232   .0204   .0166   .0165   .0162
     10   .0463   .0352   .0333   .0290   .0259   .0243   .0219   .0177   .0171   .0171
     11   .0668   .0464   .0392   .0335   .0312   .0282   .0258   .0209   .0198   .0188
     12   .0521   .0445   .0392   .0327   .0304   .0279   .0251   .0201   .0197   .0195
     13   .0758   .0542   .0506   .0437   .0396   .0373   .0329   .0262   .0248   .0243

As expected, the proportions for the larger [3·log(c)]-a values decrease more rapidly than those for the smaller values.  The large number of cycles (2849) for c=7153 doesn't appear to affect the proportions for cmax=7999 substantially.  The cmaxδmax/log(cmax) values for cmax equal to 997, 1999, 2999, ..., 9997 are 890.3, 2255.4, 3781.3, 5855.0, 7852.8, 10164.9, 12633.0, 14772.9, 17798.1, and 20719.3 respectively and the numbers of cycles are 1556, 3213, 4897, 6796, 8870, 10807, 13477, 18448, 20820, and 22132 respectively (δmax denotes the standard deviation of the distribution for cmax).

This composite curve indicates that the a values of the cycles for a given c value should have a distribution resembling that of an exponential probability distribution.  (Also, the exponential distribution applies to the first success in a Poisson process and the "waiting time" between successes and would explain the relationship to Poisson probability distributions.)  For example, for  K+L=16 and K=10, there are 504 parity vectors that are distinct under rotation.  216-310=6487=13·499 and there are 456 primitive cycles for c=6487 having a (K+L, K) value of (16, 10) (438 of which have attachment points), 41 primitive cycles for c=499 having a (K+L, K) value of (16, 10) (39 of which have attachment points), and 7 primitive cycles for c=13 having a (K+L, K) value of (8, 5).  Note that 504=456+41+7 (since 16 and 10 are not relatively prime, there are 7 parity vectors consisting of duplicated sub-vectors).  For the 438 c=6487 cycles with attachment points and a (K+L, K) value of (16, 10), there are 11 [3·log(c)]-a values equal to 23, 191 [3·log(c)]-a values equal to 24, and 236 [3·log(c)]-a values equal to 25.  These counts would more closely resemble an exponential probability distribution if there were other c=6487 cycles having different (K+L, K) values.  For c=6487, there are cycles having (K+L, K) values of (16, 10), (32, 20), (48, 30), (64, 40), (80, 50), and (96, 60).  There are 516 cycles and there are 1, 2, 3, 7, 19, 40, 207, and 237 [3·log(c)]-a values of 18, 19, 20, 21, 22, 23, 24, and 25 respectively.  These counts more closely resemble an exponential probability distribution.   The counts for the individual (L, K) values are;


(L, K)=(6, 10)   (12, 20)   (18, 30)   (24, 40)   (30, 50)   (36, 60)

[3·log(c)]-a=18           0             0             0              0             0              1
                              19           0             0             0              1             1              0
                              20           0             0             1              2             0              0
                              21           0             2             5              0             0              0
                              22           0           12             5              2             0              0
                              23          11          28             1              0             0              0
                              24        191          16             0              0             0              0
                              25        236            1             0              0             0              0

As discussed in the Journal of Integer Sequences article, there are frequently cycles for a given c value with (L, K) values that are multiples of other (L, K) values.  In this example, the function of the cycles with (L, K) values that are a multiple of (6, 10) is apparent; the modal class (or the average of the modal classes if the distribution is multimodal) of the distributions of [3·log(c)]-a values for the different (L, K) values (that is, the values in the columns of the above matrix) decreases linearly (roughly).  (In this example, the modal classes are 25, 23, 21.5, 21, 19, and 18 respectively.)

For c=7153 (equal to |219-312|), there are cycles having (L, K) values of (7, 12), (14, 24), (21, 36), (28, 48), (35, 60), (42, 72), (56, 96), (63, 108), (271, 221), (292, 257), (341, 341), and (362, 377).  There are 2849 cycles and there are 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2, 0, 1, 1, 0, 0, 2, 4, 4, 11, 25, 55, 125, 314, 1333, and 968 [3·log(c)]-a values of -60, -59, -58, ..., 25 respectively.  Including these cycles (say for cmax in the range from 6499 to 7499) doesn't change the smoothness of the composite curve substantially.

There are also frequently associated cycles (defined and discussed in the Journal of Integer Sequences article) for a given c value.  Let (L1, K1) denote the number of even and odd elements in the cycles with the smallest number of even elements.  In associated cycles, the (L, K) values of cycles are in arithmetic progression with an increment of (L1, K1) and aren't multiples of (L1, K1).  For example, for c=1843, the (L, K) values of the cycles (sorted by increasing L values) are (6, 11), (12, 22), (18, 9), (24, 20), (30, 31), (36, 42), (42, 53), (48, 64), (54, 51), and (90, 117) (the cycles with (L, K) values of (18, 9), (24, 20), (30, 31), (36, 42), (42, 53), and (48, 64) are the associated cycles).   There are 44 cycles and there are 1, 0, 0, 0, 0, 0, 1, 1, 0, 3, 1, 2, 0, 2, 2, 1, 2, 3, 11, and 14 [3·log(c)]-a values of 1, 2, 3, ..., 21 respectively.  The counts for the individual (L, K) values are;

                              (L, K)= (6, 11)   (12, 22)   (18, 9)    (24, 20)   (30, 31)   (36, 42)   (42, 53)  (48, 64)   (54, 51)   (90, 117)
          [3·log(c)]-a=  1             0             0             0             0             0             0             0             0             0             1
                                2             0             0             0             0             0             0             0             0             0             0
                                3             0             0             0             0             0             0             0             0             0             0
                                4             0             0             0             0             0             0             0             0             0             0
                                5             0             0             0             0             0             0             0             0             0             0
                                6             0             0             0             0             0             0             0             0             0             0
                                7             0             0             0             0             0             0             0             0             0             0
                                8             0             0             0             0             0             0             0             0             1             0
                                9             0             0             0             0             0             0             0             1             0             0
                              10             0             0             0             0             0             0             0             0             0             0
                              11             0             0             0             0             0             1             2             0             0             0
                              12             0             0             0             0             0             0             0             1             0             0
                              13             0             0             0             0             1             1             0             0             0             0
                              14             0             0             0             0             0             0             0             0             0             0
                              15             0             0             0             1             1             0             0             0             0             0
                              16             0             0             1             1             0             0             0             0             0             0
                              17             0             0             0             1             0             0             0             0             0             0
                              18             0             1             0             1             0             0             0             0             0             0
                              19             0             3             0             0             0             0             0             0             0             0
                              20             7             3             1             0             0             0             0             0             0             0
                              21           14             0             0             0             0             0             0             0             0             0

The associated cycles have the same function as the multiples of cycles; the modal classes of the distributions of [3·log(c)]-a values decrease linearly (roughly).  The modal classes in this example are 21, 19.5, 18, 16.5, 14, 12, 11, 10.5, 8, and 1.  Note that there is a big gap between the modal classes for the cycles having the last two (L, K) values (which aren't associated cycles).  When the (L, K) values are sorted by increasing L values, the modal classes almost always decrease.  As previously shown, a Poisson probability distribution models the number of cycles fairly well if only one of the interrelated cycles is counted, only one of the associated cycles is counted, and only one of cycles with (L, K) values that are a multiple of another (L, K) value is counted.

For c=2425, the (L, K) values of the cycles (sorted by increasing L values) are (6, 11), (12, 22), (18, 33), (24, 44), (36, 26), (42, 37), (48, 48), and (54, 59) (the cycles with (L, K) values of (36, 26), (42, 37), (48, 48), and (54, 59) are the associated cycles).   (Note that the L value of the first associated cycle is frequently a multiple of L1.)  There are 40 cycles and there are 1, 0, 0, 2, 1, 0, 3, 1, 0, 0, 0, 2, 1, 0, 19 and 10 [3·log(c)]-a values of 7, 8, 9, ..., 22 respectively.  The counts for the individual (L, K) values are;

                              (L, K)= (6, 11)   (12, 22)   (18, 33)   (24, 44)   (36, 26)  (42, 37)   (48, 48)   (54, 59)
          [3·log(c)]-a=  7             0             0             0             0             0             0             0             1
                                8             0             0             0             0             0             0             0             0
                                9             0             0             0             0             0             0             0             0
                              10             0             0             0             0             0             0             0             2
                              11             0             0             0             0             0             0             1             0
                              12             0             0             0             0             0             0             0             0
                              13             0             0             0             0             1             1             1             0
                              14             0             0             0             0             0             1             0             0
                              15             0             0             0             0             0             0             0             0
                              16             0             0             0             0             0             0             0             0
                              17             0             0             0             0             0             0             0             0
                              18             0             0             1             1             0             0             0             0
                              19             0             0             1             0             0             0             0             0
                              20             0             0             0             0             0             0             0             0
                              21           18             1             0             0             0             0             0             0
                              22           10             0             0             0             0             0             0             0

The modal classes are 21, 21, 18.5, 18, 13, 13.5, 12 and 10.

For c=3689, the (L, K) values of the cycles are (6, 12), (12, 24), (111, 102), (123, 126), and (147, 174) (there are no associated cycles, but the difference between (111, 102) and (123, 126) is (12, 24))There are 15 cycles and there are 1, 0, 0, 0, 0, 1, 1, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 3, and 7 [3·log(c)]-a values of  -11, -10, -9, ..., 23 respectively.  The counts for the individual (L, K) values are;

                              (L, K)= (6, 12)    (12, 24) (111, 102) (123, 126) (147, 174)
          [3·log(c)]-a=-11            0              0              0              0              1
                              -10            0              0              0              0              0
                               -9             0              0              0              0              0
                               -8             0              0              0              0              0
                               -7             0              0              0              0              0
                               -6             0              0              0              1              0
                               -5             0              0              1              0              0
                               -4             0              0              0              0              0
                               -3             0              0              0              0              0
                               -2             0              0              0              0              0
                               -1             0              0              1              0              0
                                0             0              0              0              0              0
                                1             0              0              0              0              0
                                2             0              0              0              0              0
                                3             0              0              0              0              0
                                4             0              0              0              0              0
                                5             0              0              0              0              0
                                6             0              0              0              0              0
                                7             0              0              0              0              0
                                8             0              0              0              0              0
                                9             0              0              0              0              0
                              10             0              0              0              0              0
                              11             0              0              0              0              0
                              12             0              0              0              0              0
                              13             0              0              0              0              0
                              14             0              0              0              0              0
                              15             0              0              0              0              0
                              16             0              0              0              0              0
                              17             0              0              0              0              0
                              18             0              0              0              0              0
                              19             0              0              0              0              0
                              20             0              0              0              0              0
                              21             0              1              0              0              0
                              22             3              0              0              0              0
                              23             7              0              0              0              0

In this case, there are two separate populations of (L, K) values, one where 2K+L-3K is negative and the other where it is positive (the same as for c=7153 and other values).

Another Way for 3n+c Cycles to be Interrelated

An empirical result is;

(46)  For a given c value, if there are two 3n+c cycles having (L, K) values of (L1, K1) and (L2, K2) where K1=K2 and L1L2, then either L1K1 and L2K2 or L1K1 and L2K2.  If there are several such pairs of cycles, say K1=K2, L1L2, K3=K4 (K3K1), L3L4, and K5=K6 (K5K1, K5K3), L5L6, then one of L1-L2, L3-L4, L5-L6 divides the other differences in L values.

Of the 23132 3n+c cycles for c less than or equal to 9997, there are 24 such pairs of cycles (not counting interrelated cycles).  Note that for a given c value and number of odd elements, there can be at most three cycles (not counting interrelated cycles) having different L values.  Belaga14 calls numbers of the form Bk,l = 2l - 3k > 0 "Collatz numbers" and gives a rephrasing of the Diophantine interpretation of the Collatz problem:  no non-trivial Collatz number can be a divisor of numbers from a certain finite set of natural numbers called the "Collatz (k, l)–corona".  A Collatz number such that 2l-1 - 3k < 0 is called "narrow".  When 2K+L-3K is positive and (K+L, K) is a generalized continued-fraction convergent of log(3)/log(2), the Collatz number is narrow.  In all of the above 24 pairs of cycles, neither of the corresponding Collatz numbers is narrow.  An empirical result is;

(47)  For a given c value, if there are two 3n+c cycles have (L, K) values of (L1, K1) and (L2, K2) where L1=L2 and K1K2, then either L1K1 and L2K2 or L1K1 and L2K2 (usually).  If there are several such pairs of cycles, then one of the differences in K values divides the other differences in K values (apparently always).

For the 3n+c cycles for c less than or equal to 9997, there are 107 such pairs of cycles (not counting interrelated cycles).  An exception occurs for a pair of cycles for c=145 having (L, K) values of (16, 18) and (16, 32) (16 is approximately equal to 18).  An exception occurs for a pair of cycles for c=1009 having (L, K) values of (56, 37) and (56, 46) (these are the only cycles for this c value, so conditions are less stringent).  A similar exception occurs for a pair of cycles for c=7063 having (L, K) values of (168, 192) and (168, 174).  A third type of exception occurs when there are many such pairs of cycles for a given c value.  For example, when c=6305, the (L, K) values that can be paired are [(24, 12), (24, 20), (24, 28), (24, 36)], [(48, 40), (48, 48), (48, 56)], and [(72, 60), (72, 68), (72, 84)].  Another empirical result is;

(48)  For a given c value, if there are two 3n+c cycles having (K+L, K) values of (K1+L1, K1) and (K2+L2, K2) where K1+L1=K2+L2, K1K2, then either L1K1 and L2K2 or L1K1 and L2K2.  If there are several such pairs of cycles, then one of the differences in K values divides the other differences in K values and one of the differences in L values divides the other differences in L values.

Note that for a given c value and length, there can be at most three cycles (not counting interrelated cycles) having different numbers of odd elements.  Of the 23132 3n+c cycles for c less than or equal to 9997, there are 11 such pairs (not counting interrelated cycles) and in every case, neither of the corresponding Collatz numbers is narrow.  Proposition (48) is usually valid (with the same kinds of exceptions as for Proposition (47)) for pairs of cycles where fK1+gL1=fK2+gL2 (this would account for there being few cycles that aren't interrelated).  For the 333 c values less than or equal to 997, the number of c values having 1, 2, 3, 4, 5, 6, 7, and 8 cycles (not counting interrelated cycles) are 109, 121, 70, 20, 8, 1, 4, and 0 respectively.  (As previously mentioned, the number of interrelated cycles having a given (K+L, K) value is determined by the number of parity vectors having this length and number of 1's that are distinct under rotation.)  For a given c value, pairs of cycles that satisfy the equation fK1+gL1=fK2+gL2 (or have equal L values and unequal K values or equal K values and unequal L values) can also be considered to be interrelated.  For example, when c=9215, the pairs of cycles having [(L1, K1) (L2, K2)] values of [(24, 20), (12, 22)], [(18, 9), (6, 11)], [(36, 42), (24, 44)], [(30, 31), (18, 33)], [(42, 29), (18, 33)], [(42, 29), (30, 31)], [(48, 40), (24, 44)], [(48, 40), (36, 42)], [(42, 53), (54, 51)], and [(48, 64), (60, 62)] can be considered to be interrelated.  For all combinations of relatively prime f and g values less than 13 (which usually accounts for most solutions), the adjusted number of c values having 1, 2, 3, 4, 5, 6, 7, and 8 cycles are 127, 125, 61, 12, 7, 1, 0, and 0 respectively.  This appears to be a Poisson probability distribution where λ is approximately equal to 1.  For the 667 c values less than or equal to 1999, the number of c values having 1, 2, 3, 4, 5, 6, 7, 8, 9, and 10 cycles (not counting interrelated cycles) are 220, 246, 134, 34, 21, 6, 5, 0, 0, and 1 respectively.  Accounting for the second type of interrelated cycles, the number of c values having 1, 2, 3, 4, 5, 6, 7, 8, 9, and 10 cycles are 247, 254, 121, 25, 15, 5, 0, 0, 0, and 0 respectively.  For the 1000 c values less than or equal to 2999, the number of c values having 1, 2, 3, 4, 5, 6, 7, 8, 9, and 10 cycles (not counting interrelated cycles) are 321, 361, 198, 66, 34, 9, 8, 1, 1, and 1 respectively.  Accounting for the second type of interrelated cycles, the number of c values having 1, 2, 3, 4, 5, 6, 7, 8, 9, and 10 cycles are 359, 368, 188, 54, 23, 6, 2, 0, 0, and 0 respectively.  The mean of this distribution (where x=0, 1, 2, ...) is 1.04.  A difficulty with this approach is determining an upper bound of f and g.  This approach hasn't been thoroughly investigated.


The Order of a 3n+c Cycle

The order of a cycle is defined to be the smallest natural number of the form 3∙2k greater than or equal to the absolute value of every element of the cycle.  In the following, if all the absolute values of the elements of an extended sequence of a cycle are less than the cycle order, then the extended sequence is further extended backwards until the cycle order has been exceeded (the elements of this portion of the extended sequence will be integers of the form 2it where t is the odd integer divisible by 3).  The extension order is then taken to be the cycle order.  If the cycle order has already been exceeded between the odd integer divisible by 3 and the attachment point, the order of the extension is defined to be the smallest natural number of the form 3∙2k greater than or equal to the absolute value of every element of the extended sequence.  The extended sequence is then further extended backwards until this order has been exceeded.  (For the remainder of this article, this will be referred to as being the extended sequence of an attachment point.)  For example, the extended sequence for the c=1 cycle is {-336, -168, -84, -42, -21, -62, -31, -92, -46, -23, -68, -34, -17, -50, -25, -74, -37, -110, -55, -164, -82, -41, -122, -61, -182, -91, -272, -136, -68} and the cycle order and extension order are 384.  An empirical result is;

(49)  For a one-jump attachment point, the cycle order equals the extension order.

Let P denote the primary attachment point having the largest absolute value.  In most 3n+c cycles, 4 times the absolute value of P determines the orders (all the same) of all the extended sequences of the cycle.  Many exceptions are associated with multiple-jump attachments points.  When there is a multiple-jump to P and there is a secondary attachment point, the order of the extended sequence of the primary attachment point may be different from the order of the extended sequence of the secondary attachment point.

Let m be the number of odd elements in an extended sequence up to the attachment point (where the element following an odd element i is temporarily defined to be (3i+c)/2) and e the number of even elements.  For a no-jump attachment point, e is greater than or equal to m.  For a one-jump attachment point where c≤151, e+1 is greater than or equal to m.  For a multiple-jump or jumped-over attachment point where c≤151 and the absolute value of the odd element immediately before the attachment point is greater than order/6, e+2 is greater than or equal to m.  Of the 649 attachment points of the c values less than or equal to 151, e is less than m for only 32 attachment points.  The only c values less than or equal to 151 where e is less than m for a one-jump attachment point are 19, 31, 97, 115, and 139.  In every case, the attachment point equals P and 4|P| determines the order of the extended sequence.  A histogram of the e-m values for the 1807 one-jump attachment points for c values less than or equal to 499 is;

As c increases, the upper bound of m-e appears to gradually increase.  For example, for c=259 and 271, m-e=2 for a one-jump attachment point.  In both cases, the attachment point equals P and 4|P| determines the order of the extended sequence.  A histogram of the e-m values for the 19223351 one-jump attachment points for cmax=199999 superimposed on a normal probability distribution having the same parameters (a mean of 8.5393 and a standard deviation of 3.4633) is;

A linear least-squares fit of the means of these distributions plotted against log((cmax+1)/1000) or log((cmax+3)/1000) for cmax=997, 1999, 2999, ..., 199999 is;

p1=0.7478 with a 95% confidence interval of (0.7447, 0.7509) and p2=4.567 with a 95% confidence interval of (4.553, 4.581).  SSE=0.08784, R-square=0.9991, adjusted R-square=0.9991, and RMSE=0.02106.  A cubic least-squares fit of the standard deviations of these distributions plotted against log((cmax+1)/1000) or log((cmax+3)/1000) for cmax=997, 1999, 2999, ..., 199999 is;

p1=0.006052 with a 95% confidence interval of (0.005319, 0.006784), p2=-0.07311 with a 95% confidence interval of (-0.08006, -0.06616), p3=0.3758 with a 95% confidence interval of (0.3558, 0.3958), and p4=2.628 with a 95% confidence interval of (2.61, 2.646).  SSE=0.02255, R-square=0.9901, adjusted R-square=0.99, and RMSE=0.01073.

For c=187, m-e=3 for a multiple-jump attachment point where the absolute value of the odd element immediately before the attachment point is greater than order/6.  In general, m-e is relatively large for multiple-jump or jumped-over attachment points when there are associated primary, secondary, tertiary, etc., attachment points.

Let max denote the odd integer in the cycle having the largest absolute value and let i denote the odd integer immediately before the primary attachment point following max ((3i+c)/4 equals the primary attachment point).  For example, for a cycle for c=5, max=3397 and the sequence between max and the primary attachment point is {3397, 10196, 5098, 2549, 7652, 3826, 1913, 5744, 2872, 1436} (i=1913 and 3397→2549→1913).  Empirical results are;

(50)  If i≠max and max jumps to i (either by one or multiple jumps), then the primary attachment point is a no-jump attachment point and the corresponding t value is less than max.

(51)  If i≠max and max jumps over i, then the primary attachment point is a one-jump attachment point and the corresponding t value is less than max.

If the primary attachment point is P (that is, i=max) and 4|P| determines the extension order, then the primary attachment point is usually a one-jump attachment point (but may be a multiple-jump attachment point or even a no-jump attachment point).

3n+c Cycles With Only One Attachment Point

In this paragraph, cycles containing only one attachment point are discussed.  Also, the order of the extended sequence is required to have been determined by 4|P|.  The sequence vector of such an extended sequence mostly has bilateral symmetry when the number of 2's in the sequence vector (not counting the last element of the sequence vector) is even (usually, it is necessary to disregard the first and last elements of the sequence vector when considering the symmetry, but sometimes it is also necessary to disregard the second or next-to-last elements of the sequence vector).  Since there is only one attachment point, the sequence vector in the interior of the cycle is a 1-2 sequence vector.  Then the sequence vector of the extended sequence is a 1-2 sequence vector except for the first and last elements of the sequence vector.  (The first element of the sequence vector does not indicate that there is an odd sequence element immediately before the extended sequence; it just counts the number of even sequence elements before the first odd sequence element.  A similar situation applies for the last element of the sequence vector.)  The sequence vectors of the extended sequences of the interrelated cycles for c=13 are (4, 1, 1, 1, 1, 2, 2), (3, 2, 1, 1, 1, 2, 1, 2), (4, 1, 2, 1, 1, 2, 1, 1, 2), (4, 1, 1, 2, 1, 2, 1, 1, 1, 2), and (5, 1, 1, 1, 2, 2, 1, 1, 1, 1, 2).  The sequence vectors of the extended sequences of the interrelated cycles for c=37 and a cycle length of 9 are (6, 2, 1, 2, 1, 2) and (5, 1, 2, 2, 1, 1, 2).  The sequence vectors of the extended sequences of the interrelated cycles for c=47 and a cycle length of 11 are (4, 1, 1, 1, 2, 2, ), (4, 2, 1, 1, 2, 1, 2), (6, 1, 2, 1, 2, 1, 1, 2), and (7, 1, 1, 2, 2, 1, 1, 1, 2).  The sequence vectors of the extended sequences of the interrelated cycles for c=101 and a cycle length of 10 are (6, 2, 1, 2, 2) and (5, 1, 2, 2, 2).  In all of these cases, it is possible to list the interrelated cycles so that the number of 1's between the pair of 2's (if there is a pair) decreases by one and the extension order remains the same or increases for each successive interrelated cycle.

Generalized Dead Limbs

Consider a 3n+1 sequence where the fourth-to-last element of the sequence (denoted by i) is odd, the third-to-last element of the sequence is divisible by 8, and the sequence has been extended backwards (without any restrictions on the path taken), until an odd integer divisible by 3 has been encountered.  The order of this sequence is defined to be the smallest natural number of the form 3∙2k greater than or equal to the element in the sequence with the largest absolute value.  The sequence is then further extended backwards until the order is exceeded.  Note that if the absolute value of i is greater than the order divided by 6, then the absolute value of the third-to-last element of the sequence (3i+1) is greater than the order divided by 2, that is, the third-to-last element of the sequence (along with other elements of the sequence) determines the order.  When the absolute value of i is greater than the order divided by 6, these sequences will be referred to as "generalized dead limbs" (ordinary dead limbs will be defined later).  In the following, the element after an odd element j is temporarily defined to be (3j+1)/2 (for the purpose of determining lengths).  Let e denote the number of even elements in a generalized dead limb, m the number of odd elements, and l the number of elements.  Also, generalized dead limbs containing duplicated cycles are excluded.  An empirical result is;

(52)  For a given number of odd elements in a generalized dead limb, the number of even elements is mostly fixed; the number of even elements can deviate by at most 1.

For example, for m=1, e can equal 4 or 3.  (The (e, m) value will be denoted by ((4, 3), 1).)  (e, m) values for generalized dead limbs are ((4, 3), 1), ((5, 4), 2), ((5, 4), 3), ((6, 5), 4), ((6, 5), 5), ((7, 6), 6), ((8, 7), 7), ((8, 7), 8), ((9, 8), 9), ((9, 8), 10), ((10, 9), 11), ((11, 10), 12), ((11, 10), 13), ((12, 11), 14), ((12, 11), 15), ((13, 12), 16), ((13, 12), 17), ((14, 13), 18), ((15, 14), 19), ((15, 14), 20), ((16, 15), 21), (16, 15), 22), ((17, 16), 23), ((18, 17), 24), ....  An empirical result is;

(53)  The adjusted (l, m) values (where l is decremented by 4 or 3) of generalized dead limbs include the generalized continued-fraction convergents of log(3)/log(2).

The (l, m) value of a 3n+1 cycle is a generalized continued-fraction convergent of log(3)/log(2) (based on empirical evidence).  (Assuming the factor of 1.000001 in Simons and de Weger's inequality can be reduced to 1.0, the (l, m) value of a 3n+1 cycle [n>0] is a continued-fraction convergent of log(3)/log(2).)  For example, the (l, m) value of the 3n+1 cycle {-34, -17, -25, ..., -68} is (11, 7) and the (l, m) value of the extended sequence {-336, -168, -84, ..., -68} (a generalized dead limb containing the cycle) is (19, 10).  An empirical result is;

(54)  The (l, m) value of a generalized dead limb minus the (l, m) value of a generalized continued-fraction convergent of log(3)/log(2) is the (l, m) value of a shorter generalized dead limb.

Let f denote the mapping of the number of odd elements in a generalized dead limb to the smaller of the two possible numbers of even elements in the limb.  Attachment points were previously defined for cycles.  The definition of attachment points for generalized dead limbs is the same; the attachment points are just not necessarily in cycles.  An empirical result is;

(55)  The number of even elements in a generalized dead limb containing x primary attachment points is optimal in that the number of even elements up to the yth primary attachment point, y<x, is greater than or equal to f(m) where m is the number of odd elements up to the yth primary attachment point.

Weibull probability distributions are used to model birth and decay processes and have a scaling and shaping parameter.  For the generalized dead limbs where the odd elements divisible by 3 are less than a fixed amount and the orders are less than a fixed amount, the number of even elements (for a given number of odd elements) up to the yth primary attachment point has a Weibull probability distribution.  For example, for generalized dead limbs (in the 3n-1 sequence, n>0) where the odd elements divisible by 3 are less than or equal to 99999999, x=5, and y=3, the numbers of generalized dead limbs where m=10 and e-8 equals 0, 1, 2, ..., 19 are 62, 1246, 2939, 3626, 3213, 2097, 1307, 651, 338, 168, 99, 51, 15, 8, 0, 0, 1, 1, 0, and 1 respectively (f(10)=8).  The parameters of the Weibull probability distribution for this data (excluding the 62 values equal to 0) are 4.2974 (with a 95% confidence interval of (4.2640, 4.3310) and 2.1167 (with a 95% confidence interval of (2.0921, 2.1415).  A Weibull plot of the data is;

A histogram of the data and the corresponding Weibull probability distribution is;

A plot of the Weibull scaling parameters for m=3, 4, 5, ..., 20 and where the odd elements divisible by 3 are less than or equal to 99999999 is;

The curve of smaller values is for when the odd elements divisible by 3 are less than or equal to 999999999.  The scaling parameters don't change much for this larger sample size.  A plot of the Weibull shaping parameters for m=3, 4, 5, ..., 20 and where the odd elements divisible by 3 are less than or equal to 99999999 is;

The curve of smaller values is for when the odd elements divisible by 3 are less than or equal to 999999999.  The shaping parameters don't change much for this larger sample size.

When c>1, the behavior of such sequences approaches that of c=1 in a limiting sense, that is, for a fixed c value and a sufficiently large order, the sequences have the same (l, m) values as for c=1 (an empirical result).

For the 3n+1 cycle and the extended sequence of P (-68), (8, 3) ((19, 10) [the (l, m) value of the extended sequence] minus (11, 7) [the (l, m) value of the cycle and a generalized continued-fraction convergent of log(3)/log(2)]) is the (l, m) value of a shorter generalized dead limb.  Similar cycles occur in general 3n+c sequences.  For the 3n+5 cycle and the extended sequence of P where P=1562, (5, 1) ((32, 18) [the (l, m) value of the extended sequence] minus (27, 17) [the (l, m) value of the cycle and a generalized continued-fraction convergent of log(3)/log(2)]) is the (l, m) value of a shorter generalized dead limb.  For another 3n+5 cycle and extended sequence having (l, m) values of (27, 17) and (32, 18) respectively, the difference is (5, 1).  For the 3n+13 cycle and the extended sequence of P where P=454, (5, 1) ((13, 6) [the (l, m) value of the extended sequence] minus (8, 5) [the (l, m) value of the cycle and a continued-fraction convergent of log(3)/log(2)]) is the (l, m) value of a shorter generalized dead limb.  For four other 3n+13 cycles having (l, m) values of (8, 5), the differences are (6, 2), (8, 3), (9, 4), and (11, 5) (all (l, m) values of shorter generalized dead limbs).  For the 3n+13 cycle and the extended sequence of P where P=1048, (5, 1) ((29, 16) [the (l, m) value of the extended sequence] minus (24, 15) [the (l, m) value of the cycle and a generalized continued-fraction convergent of log(3)/log(2)]) is the (l, m) value of a shorter generalized dead limb.  For the 3n+23 cycle and the extended sequence of P where P=-23704, (12, 6) ((31, 18) [the (l, m) value of the extended sequence] minus (19, 12) [the (l, m) value of the cycle and a generalized continued-fraction convergent of log(3)/log(2)]) is the (l, m) value of a shorter generalized dead limb.  For six other 3n+23 cycles having (l, m) values of (19, 12), the differences are (12, 6), (8, 3), (9, 4), (5, 1), (7, 2), and (5, 1) (all (l, m) values of shorter generalized dead limbs).  For two of these cycles, 4|P| does not determine the order of the extended sequence (this frequently occurs for interrelated cycles).  For the 3n+29 cycle containing the primary attachment points 788552, 194366, 79082, 73934, 41606, and 18794, (7,2) ((72, 43) minus (65, 41) [a continued-fraction convergent of log(3)/log(2)]) is the (l, m) value of a shorter generalized dead limb.  For the 3n+29 cycle containing the primary attachment points 1707830, 1441016, 360254, 577232, 36902, 20306, and 7622, (10, 4) ((75, 45) minus (65, 41)) is the (l, m) value of a shorter generalized dead limb.  For the 3n+71 cycle containing the primary attachment points 41360 and 17042, (6, 2) ((33, 19) minus (27, 17)) is the (l, m) value of a shorter generalized dead limb.  For four other 3n+71 cycles having (l, m) values of (27, 17), the differences are (6, 2), (5, 1), (5, 1), and (5, 1) (all (l, m) values of shorter generalized dead limbs).  For two of these cycles, 4|P| does not determine the order of the extended sequence.  For the 3n+139 cycle containing the primary attachment point 16472, (20, 11) ((31, 18) minus (11, 7)) is the (l, m) value of a shorter generalized dead limb.  For twenty-three other 3n+139 cycles having (l, m) values of (11, 7), the differences are (13, 6), (13, 7), (10, 5), (9, 4), (11, 5), (12, 6), (6, 2), (9, 4), (5, 1), (8, 3), (9, 4), (6, 2), (11, 5), (5, 1), (8, 3), (7, 2), (8, 3), (5, 1), (6, 2), (5, 1), (7, 2), (5, 1), and (5, 1).  Except for (13, 7), these differences are (l, m) values of shorter generalized dead limbs.  (The permissible (l, m) values for a generalized dead limb containing seven odd elements are (15, 7) and (14, 7).)  For five of these cycles, 4|P| does not determine the order of the extended sequence.  Similar 3n+c cycles and extended sequences occur for c=311, 343, 355, 467, ....

Hypothetical 3n+1 Cycles

Properties of 3n+1 cycles can be inferred from those of general 3n+c cycles that are in generalized dead limbs and have (l, m) values of generalized continued-fraction convergents of log(3)/log(2).  That a 3n+1 cycle having an attachment point should be in a generalized dead limb is to be expected since most 3n+c cycles having attachment points are in generalized dead limbs and the 3n+1 sequence is comparatively "well-behaved".  Catalan's conjecture (proved by Mihăilescu15) states that the only natural number solutions of xa-yb=1 are x=3, a=2, y=2, and b=3.  The only solution of 2l-3m=-1 is then (3, 2).  Also, |2l-3m| increases monotonically (apparently) for (l, m) values that are generalized continued-fraction convergents of log(3)/log(2) (excluding (2, 1), (4, 2), (6, 4), and (9, 6)), so there shouldn't be any more 3n+1 cycles where |2l-3m|=1.  Study of 3n+c cycles where c properly divides |2l-3m| and the (l, m) values are relatively large should yield expected properties of any other 3n+1 cycles (the number of odd elements in a hypothetical 3n+1 cycle [n>0] has been confirmed to be very large).  A c value of 467 (and several others) fulfills these and the above requirements.  When c=467, there are fifteen primitive cycles having (l, m) values of (84, 53) (a continued-fraction convergent of log(3)/log(2)) and these cycles have 120 attachment points.  Empirical results are;

(56)  When the domain of the absolute values of the u values and the absolute values of their proxies is sufficiently small, the (l, m) value of a 3n+c cycle is a generalized continued-fraction convergent of log(3)/log(2), the cycle is in a generalized dead limb, and the (l, m) value of the extended sequence of P minus the (l, m) value of the cycle is the (l, m) value of a shorter generalized dead limb.

(57)  When the domain of the absolute values of the u values and the absolute values of their proxies is sufficiently small, all the extended sequences of a 3n+c cycle have the same order, the sign does not change in an extended sequence, and there are more even elements in an extended sequence than odd elements (the only possible (e, m) values of the extended sequence of P are then ((4, 3), 1), ((5, 4), 2), ((5, 4), 3), ((6, 5), 4), ((6, 5), 5), ((7, 6), 6), ((8, 7), 7), ((8, 7), 8), and ((9, 8), 9)).

(58)  When the domain of the absolute values of the u values and the absolute values of their proxies is sufficiently small, there are no jumped-over attachment points (so that the attachment points are either primary or secondary attachment points), P is a one-jump attachment point, one-jump or multiple-jump attachment points are primary attachment points, secondary attachment points are no-jump attachment points, multiple-jump attachment points do not have associated secondary attachment points, and a multiple-jump attachment point is preceded by a no-jump attachment point (possibly a primary attachment point).

Here, "sufficiently small" means being on the verge of becoming too small.  For a c=467 cycle, the plot of the |u| values and the absolute values of the corresponding proxy values versus their domain is;

(The x values have been scaled up by a factor of 108 and all but three data points are shown.  No shape-preserving interpolation of data points is done.)   The domain is (-2.390748e-007, 4.432486e-007).

As shown previously, the number of even elements in the extended sequence is sometimes smaller than the number of odd elements for a one-jump attachment point (especially when the attachment point is P).  For two of the cycles for c=467, the number of even elements in an extended sequence is one less than the number of odd elements and this occurs for one-jump attachment points where the attachment point is P.  For four of the 71 one-jump attachment points for the c=467 cycles, tu(mod 2j) where j is greater than the number of odd elements in the jump (in every case, locmin is not equal to u).  For three of the 15 cycles, there is not a one-jump attachment point where j equals the number of odd elements in the jump.

When c=311, there are two primitive cycles having an (l, m) value of (57, 36) (a generalized continued-fraction convergent of log(3)/log(2)).  There are 11 attachment points and these attachment points have the same properties as the c=467 cycles.  For one of the cycles, the number of even elements in an extended sequence equals the number of odd elements and this occurs for a one-jump attachment point where the attachment point is P.  For one of these cycles, there is not a one-jump attachment point where j equals the number of odd elements in the jump.  When c=311, there are seventeen primitive cycles having an (l, m) value of (38, 24) (a generalized continued-fraction convergent of log(3)/log(2)).  There are 66 attachment points and these attachment points have the same properties as the c=467 cycles except that there are two jumped-over attachment points (in different cycles).  For two of the cycles the number of even elements in an extended sequence is one less than the number of odd elements and this occurs for one-jump attachment points where the attachment point is P.  For fourteen of the 41 one-jump attachment points, tu(mod 2j) where j is greater than the number of odd elements in the jump (usually locmin is not equal to u).  For seven of the cycles, there is not a one-jump attachment point where j equals the number of odd elements in the jump.  The domains of the absolute values of the u values and the absolute values of their proxies are somewhat larger than the domains of the c=467 cycles having (l, m) values of (84, 53).

When c=343, there is a primitive cycle having an (l, m) value of (149, 94) (a generalized continued-fraction convergent of log(3)/log(2)).  The domain of the absolute values of the u values and the absolute values of their proxies is (-6.216047e-007, 1.015725e-006), somewhat larger than the domains of the c=467 cycles having (l, m) values of (84, 53).  There are 15 attachment points and these attachment points have the same properties as the c=467 cycles having (l, m) values of (84, 53) except that P is a no-jump attachment point.  For all eight one-jump attachment points, tu(mod 2j) where j is less than or equal to the number of odd elements in the jump.  For three of these attachment points, j equals the number of odd elements in the jump.

When c=1091, there is a primitive cycle having an (l, m) value of (130, 82) (a generalized continued-fraction convergent of log(3)/log(2)).  The domain of the absolute values of the u values and the absolute values of their proxies is (-3.446479e-007, 8.889605e-007), somewhat larger than the domains of the c=467 cycles having (l, m) values of (84, 53).  There are 12 attachment points and these attachment points have essentially the same properties as the c=467 cycles having (l, m) values of (84, 53) except that there is a jumped-over attachment point and the number of even elements in an extended sequence for a multiple-jump attachment point is equal to the number of odd elements.  For one of the 7 one-jump attachment points, t≡u(mod 2j) where j is greater than the number of odd elements in the jump (locmin is not equal to u).  For  two of these attachment points, j equals the number of odd elements in the jump.

When c=2507, there are three primitive cycles having an (l, m) value of (76, 48) (a generalized continued-fraction convergent of log(3)/log(2)) and the domains of the absolute values of the u values and the absolute values of their proxies are (-1.018299e-006, 2.239814e-006), (-2.209624e-007, 7.065484e-007), and (-1.465981e-006, 2.967221e-006).  In one of the cycles, P is a no-jump attachment point.  In another cycle, there is a jumped-over attachment point and the number of even elements in an extended sequence for a one-jump attachment point (that of P) is equal to the number of odd elements.  In the remaining cycle, there is a jumped-over attachment point preceding a multiple-jump attachment point.  For one of the 11 one-jump attachment points for these cycles, t≡u(mod 2j) where j is greater than the number of odd elements in the jump (locmin is not equal to u).  For one of these cycles, j equals the number of odd elements in the jump for three of the 5 one-jump attachment points.  Although the domains appear to be small, they are not small enough for this large of a c value to exhibit all of the above properties; many anomalies occur.  For comparison, when c=29, there are two primitive cycles having an (l, m) value of (65, 41) (a continued-fraction convergent of log(3)/log(2)) and the domains of the absolute values of the u values and the absolute values of their proxies are (-1.136015e-005, 2.425506e-005) and (-2.555711e-005, 3.583320e-005).  There are 15 attachment points and these attachment points have the same properties as the c=467 cycles having (l, m) values of (84, 53) (except there are no anomalies).

When c=5, 13, 23, 71, 139, and 355, there are cycles having (l, m) values of generalized continued-fraction convergents of log(3)/log(2) that also have some properties of the c=467 cycles having (l, m) values of (84, 53) .  Also, when c=407, cycles having an (l, m) value of (44, 28) (almost equal to (46, 29) [a generalized continued-fraction convergent of log(3)/log(2)]) have some properties of the c=467 cycles.

This is currently the extent to which 3n+c cycles with attachment points have been investigated.  In the remainder of the article, 3n+c cycles not having attachment points are discussed.

Least-Residue Trees

In this section and the remaining sections, the original definition of 3n+c sequences (where n>0 and c≥-1) is used.  Consider the following "least-residue" tree (where "{}" denotes a limb) consisting of the natural numbers less than 32k, k=4;

{4, 2, 1}
{24, 12, 6, 3, 10, 5, 16, 8}
{36, 18, 9, 28, 14, 7, 22, 11, 34, 17}
{30, 15, 46, 23}
{26, 13, 40, 20}
{38, 19}
{42, 21}
{32}
{44}
{25}
{27}
{29}
{31}
{33}
{35}
{37}
{39}
{41}
{43}
{45}
{47}

Each limb consists of a snippet from the 3n+c sequence (in this case, c=1).  Note that "odd" paths are taken at nodes when tracing back through the sub-sequences (that is, if i is an even element of the sub-sequence and 3 divides i-c, then the element prior to i is (i-c)/3).  A limb containing an odd natural number that is divisible by 3 will be referred to as a "dead" limb (and limbs that aren't dead will be referred to as being "alive").  A limb ending in an odd natural number greater than 2k attaches to the beginning of another limb (or possibly itself) when going from one size of the tree to the next.  That is, if i is the last natural number in the limb, then 3i+c "cements" the limb ending in i to the beginning of another limb to form a longer limb in the next larger least-residue tree.  A dead limb that starts with an even natural number and ends with an odd natural number cannot attach to itself at its beginning (or any point up to and including the odd natural number divisible by 3) since (3i+c)/2 (where i is the last natural number in the limb) is not divisible by 3.  Similarly, a limb ending in an odd natural number greater than 2k cannot attach to the interior of another limb (or itself) since the even natural numbers in the interior of a limb (and, if the limb is dead, to the right of the odd natural number divisible by 3) are either of the form 3j+c where j is a natural number or are less than half the order, and the odd natural numbers in the interior of a limb are less than half the order.  (These limbs have properties similar to those of interrelated 3n+c cycles having 1-2 sequence vectors.  Also, as will be shown, there is a connection between these limbs and "admissible" parity vectors and Terras' stopping time.)

Note that there is no overall "gain" in a cycle.  The feature of least-residue trees that makes them relevant to cycle formation is that there is no gain (at least in principle) from the end of a limb ending in an odd natural number greater than 2k to the beginning of the limb, that is, the last element of the limb is greater than order/3 and the first element of the limb is greater than order/2 (unproven as yet).  Also, note that the definition of least-residue trees (where "odd" paths are taken) is not broad enough to encompass all possible 3n+c cycle formation.  (All cycles will appear in the dead limbs of a least-residue tree of sufficiently large order, however, active limb formation is easier to analyze.  More general least-residue trees will be introduced later.)  Another feature of least-residue trees is that they provide a means to define "trivial" cycles.  (What trivial cycles are is intuitively obvious, but they haven't been defined.)  The 3n-1 cycles of {2, 1} and {20, 10, 5, 14, 7} will be classified as trivial cycles (the other known 3n-1 cycle contains an element divisible by 8, so this paves the way for a unified treatment of the 3n+1 and 3n-1 cycles).  The objective in the following (not attained) is to use mathematical induction to prove the existence of a 3n+c "process".  (In this process, a limb ending in an odd natural number greater than 2k cannot attach to itself at its beginning [apparently] when c=1 or -1.  For a sufficiently large k, an "odd" path is in a limb of a least-residue tree [assuming that there is a jump in the "odd" path ending in an even natural number and that there is a backward jump in the "odd" path ending in an odd natural number divisible by 3].  By default, there would not be any cycles for 3n+1 or 3n-1 sequences having 1-2 sequence vectors.)  A limb ending in an odd natural number greater than 2k must attach to the beginning of some limb when going to the next larger size of the tree; remaining questions are how many limbs end in an odd natural number greater than 2k and which limbs they attach to.  When c>1, there are sometimes limbs in the least-residue trees starting with an even natural number and ending in an odd natural number i where 3i+c>32k and i<2k (this cannot occur for c=1 or -1, one of the unique properties of the 3n+1 and 3n-1 sequences).  In the following, this is not considered to be a different kind of limb since the properties of these limbs haven't been fully determined yet.  Nine different kinds of limbs are required to define the 3n+c process (this is an empirical result).

For convenience, the following sets will be defined for c=1 (when c≠1, certain sets are permuted).  Let E denote the set of limbs that are not dead, have more than one element, and end in an even natural number.  Let F denote the set of limbs that are dead and end in an even natural number.  (Limbs in E or F are already attached to other limbs.)  Let G denote the set of limbs that end in an odd natural number less than 2k (other than the previously mentioned limbs for c>1, these limbs always contain cycles [this is an empirical result]).  Let A denote the set of limbs ending in an element of {2k+1, 2k+9, 2k+17, ..., 2k+1-7}, let B denote the set of limbs ending in an element of {2k+3, 2k+11, 2k+19, ..., 2k+1-5}, let C denote the set of limbs ending in an element of {2k+5, 2k+13, 2k+21, ..., 2k+1-3}, and let D denote the set of limbs ending in an element of {2k+7, 2k+15, 2k+23, ..., 2k+1-1}.  (When c≡1(mod 8), the sets A, B, C, and D are not permuted.  When c≡3(mod 8), the sets B, A, D, and C become the sets A, B, C, and D respectively.  When c≡5(mod 8), the sets C, D, A, and B become the sets A, B, C, and D respectively.  When c≡7(mod 8), the sets D, C, B, and A become the sets A, B, C, and D respectively.  For example, when c=-1, the limbs in A end in odd natural numbers that are congruent to 7 modulo 8, the limbs in B end in odd natural numbers that are congruent to 5 modulo 8, the limbs in C end in odd natural numbers that are congruent to 3 modulo 8, and the limbs in D end in odd natural numbers that are congruent to 1 modulo 8.)  Let T denote the set of limbs ending in an element {2k+1+1, 2k+1+3, 2k+1+5, ..., 3∙2k-1} (these are one-element limbs).  Let U denote the set of limbs ending in an element of {[3(2k+5)+1]/2, [3(2k+13)+1]/2, [3(2k+21)+1]/2, ..., [3(2k+1-3)+1]/2} (these are one-element limbs).  (When c is congruent to 1 modulo 6, the U set is the same.  When c is congruent to 5 modulo 6, U is the set of limbs ending in an element of {[3(2k+1)+5]/2, [3(2k+9)+5]/2, [3(2k+17)+5]/2, ..., [3(2k+1-7)+5]/2}.)  Also,  let S denote the set of limbs ending in an element of {2k+1, 2k+3, 2k+5, ..., 2k+1-1}.  The 3n+c process will be illustrated for k=5, 6, and 7.

The limb comprising E for k=6 and c=-1 is (118, 88) where the first element in the parentheses denotes the beginning element in the 3n+c sequence and the second element in the parentheses denotes the ending element.  The limbs comprising F are (96, 4), (144, 28), (120, 16), (108, 40), (156, 64), (102, 76), and (126, 52), the limbs comprising G are (2, 1) and (20, 7), the limbs comprising T are (129), (131), (133), ..., (191), and the limbs comprising U are (100), (112), (124), (136), (148), (160), (172), and (184).   In the following table, "a 2 (142, 71)→106(A)", for example, denotes that the limb is not dead (denoted by "a"), has 2 elements, and attaches to 106 (the first element of a limb in A).  "d " denotes that the limb is dead.  The limbs in A, B, C, and D (in the four columns respectively) are;

        a 2 (142, 71)→106(A)     d 2 (138, 69)→103(A)        d 5 (180, 67)→100(U)         a 2 (130, 65)→97(D)
        a 4 (106, 79)→118(E)      a 2 (154, 77)→115(C)        d 2 (150, 75)→112(U)        d 7 (132, 73)→109(B)
        d 2 (174, 87)130(D)     d 4 (114, 85)127(A)        a 2 (166, 83)124(U)        d 2 (162, 81)121(D)
        a 2 (190, 95)142(A)     d 2 (186, 93)139(T)         d 25 (168, 91)136(U)      a 2 (178, 89)133(T)
        a 1 (103)154(B)            a 1 (101)151(T)               d 1 (99)148(U)                a 1 (97)145(T)
        d 1 (111)166(C)            a 1 (109)163(T)              a 1 (107)160(U)              d 1 (105)157(T)
        a 1 (119)178(D)            d 1 (117)175(T)              a 1 (115)172(U)              a 1 (113)169(T)
        a 1 (127)190(A)            a 1 (125)187(T)              d 1 (123)184(U)              a 1 (121)181(T)

For k=7 and c=1, the limbs comprising E are (194, 188) and (218,164), the limbs comprising F are (192, 8), (288, 20), (240, 80), (336, 32), (264, 44), (312, 152), (360, 68), (204, 116), (228, 56), (276, 104), (300, 28), (324, 92), (372, 140), and (234, 176), the limbs comprising U are (200), (212), (224), ..., (380), and the limbs comprising T are (257), (259), (261), ..., (383).  The limbs in A, B, C, and D consisting of more than one element are;

        d 2 (258, 129)→194(E)      d 5 (348, 131)→197(C)      a 2 (266, 133)→200(U)      d 2 (270,135)→203(B)
        a 7 (242, 137)→206(B)      a 2 (278, 139)→209(A)      d 2 (282, 141)→212(U)      d 7 (252, 143)→215(D)
        a 2 (290, 145)→218(E)      d 2 (294, 147)→221(C)      d 4 (198, 149)→224(U)      a 2 (302, 151)→227(B)
        d 2 (306, 153)→230(C)      a 4 (206, 155)→233(A)      a 2 (314, 157)→236(U)      d 2 (318, 159)→239(D)
        d 17 (216, 161)→242(A)    a 2 (326, 163)→245(C)      d 2 (330, 165)→248(U)     d 4 (222, 167)→251(B)
        a 2 (338, 169)→254(D)      d 2 (342, 171)→257(T)      a 4 (230, 173)→260(U)      a 2 (350, 175)→263(T)
        d 2 (354, 177)→266(C)      d 9 (210, 179)→269(T)      a 2 (362, 181)→272(U)      d 2 (366, 183)→275(T)
        d 4 (246, 185)→278(B)      a 2 (374, 187)→281(T)      d 2 (378, 189)→284(U)      a 4 (254, 191)→287(T)

When c=5 and k=5, the limbs in A, B, C, and D consisting of more than one element are;

       a 7 (58, 37)→58(A),            d 2 (78, 39)→61(A)            d 2 (66, 33)→52(U)           a 2 (70, 35)→55(D)
       d 2 (90, 45)→70(D),            a 2 (94, 47)→73(T)            a 2 (82, 41)→64(U)           d 4 (54, 43)→67(T)

When c=11 and k=5, the limbs in A, B, C, and D consisting of more than one element are;

       a 2 (70, 35)→58(G),            d 2 (66, 33)→55(C)            d 2 (78, 39)→64(U)          d 5 (84, 37)→61(D)
       d 14 (48, 43)→70(A),           a 2 (84, 41)→67(T)            a 2 (94, 47)→76(U)          d 2 (90, 45)→73(T)

The tables above show which types of limbs attach to other types of limbs and that only a limb in A can attach to itself at its beginning (of course, this hasn't been proven).  Suppose i is the last element of a two-element limb in S.  A two element limb in S cannot attach to itself at its beginning (except possibly for one order per c value) since (3i+c)/2 equals 2i only if i=c.  An empirical result is;

(59)  If a limb in S is not dead and has more than one element, then the second element is odd.

Suppose i is the last element of a four-element limb in S.  In a four-element limb in S, the first and third elements are even and the second and fourth elements are odd.  A four-element limb in S cannot attach to itself at its beginning (except possibly for one order when c=-1) since (3i+c)/2 equals 2(2i-c)/3 only if i=-7c.  Usually, a limb in A cannot attach to itself at its beginning since the limb is either dead, a one-element limb, a two element limb, or a four-element limb.  Usually, limbs in S do not attach to other limbs of equal length.  When c=1 or -1, two-element, four-element, seven-element, twelve-element, seventeen-element, twenty-element, twenty-five element, and other longer length limbs in A sometimes attach to other limbs of equal length in A, B, C, or D.  When c=1 or -1, a seven-element limb in A that attaches to a limb of equal length in A, B, C, or D is dead (this is an empirical result).  For c=1 and k=18, the only limb in A that is not dead, does not consist of two or four elements, and that attaches to another limb in A with the same length is (484034, 306305).  This limb has a length of 12 and attaches to the limb (459458, 290753).  For c=1 and k=20, the only limb in A that is not dead, does not consist of two or four elements, and that attaches to another limb in A with the same length is (2056898, 1301633).  This limb also has a length of 12.  If c=-1, 11, 13, 25, 29, 31, 41, 43, 47, 59, 61, 73, 77, 79, 89, 91, or 95 (or larger unspecified values), let Ao denote the limbs in A where the integer portion of the last element of the limb divided by 8 is even (and let Ae denote the remaining limbs in A), or if c=1, 5, 7, 17, 19, 23, 25, 35, 37, 49, 53, 55, 65, 67, 71, 83, 85, or 97 (or larger unspecified values), let Ao denote the limbs in A where the integer portion of the last element of the limb divided by 8 is odd (and let Ae denote the remaining limbs in A).  Another empirical result is;

(60)  A limb in Ao attaches to a two-element or four-element limb in A, B, C, or D.

This property further reduces the probability of a limb in S attaching to itself at its beginning.

More Properties of Least-Residue Trees

In this section, c is restricted to being 1 or -1.  (This is for the purpose of comparing 3n+1 and 3n-1 sequences; many of the properties to be given usually still apply for c>1.)  Some empirical results are;

(61)  If c=1, no limb in a least residue tree other than {4, 2, 1} ends in an odd natural number less than 2k (in the case of {4, 2, 1}, 1 is less than 2k for the order of 6).  If c=-1, no limbs in a least residue tree other than {2, 1} and {20, 10, 5, 14, 7} end in an odd natural number less than 2k (in the case of {2, 1}, 1 is less than 2k for the order of 6 and in the case of {20, 10, 5, 14, 7}, 7 is less than 2k for the order of 24).  (When c=-1 and k=2, the limb (10, 5) [in B] attaches to the limb (7) [in A], and the limb (7) attaches to the limb (10, 5).  [There are no limbs in C, D, or U in this case.]  When k=3, the limb in F is (12, 4), the limbs in G are (2, 1) and (20, 7), the limbs in S are (18, 9), (22, 11), (13), and (15), the limbs in T are (17), (19), (21), and (23), and the limb in U is (16).  In essence, trivial cycles occur before the 3n+c process is fully in effect.  Note that the dead limb {..., 54, 27, 80, 40} attaches to the limb {20, 10, 5, 14, 7} for k>3, so that the limbs in G could be viewed as being absorbed by dead limbs.)

(62)  If k>2, there are 2k-3 limbs in A, B, C, or D.

(63)  If k>2, there are 2k-3 limbs in E and F.

(64)  If k>4, a fourth of the limbs in A attach to four-element limbs.

(65)  If a limb in A ends in the natural number i where (3i+c)/2>2k+1, then the limb attaches to a two-element limb.

(66)  The fourth element of a limb in E is even (there are at least four elements in a limb in E).

(67)  A four-element limb in Ae cannot attach to a four-element limb in A, B, C, or D.

(68)  A two-element limb in Ao cannot attach to a two-element limb in A or C.

(69)  There are no limbs in E with lengths of 2, 3, 5, 6, 8, or 11.

The many common properties of the least-residue trees of the 3n+1 and 3n-1 sequences indicate that it would be more logical to allow negative n values and consider the two sequences to be the same sequence.

Other Cycles in Least-Residue Trees

Besides trivial cycles and limbs in A attaching to themselves at their beginning (as for the previously shown limb (58, 37) for c=5 and k=5), cycles can also be formed from limbs in F.  When c=-1 and k=6, the limb (168, 91) (in C) attaches to 136 (in U) and when k=7, the limb {336, 168, ..., 91, 272, 136} contains 68 (136/2) and is in F.  When c=5, the sequence 187, 566, 283, ..., 187 (consisting of 44 distinct elements) is not an "odd" path.  When c=5 and k=10, the limb (2076, 1327) (in B) attaches to 1993 (in C) and when k=11, the limb {4152, 2076, ..., 1327, 3986, 1993, 5984, 2992} is in F.  When k=11, the limb (3936, 2461) in (A) attaches to 3694 (in A).  When k=12, the two dead limbs {8304, 4152, 2076, ..., 519, 1562, ..., 374} and {7872, 3936, 1968, ..., 123, 374,  ..., 1562} form a cycle (containing all of 187, 566, 283, ..., 187) where the attachment points are immediately after the odd natural numbers divisible by 3.
When c=5, the sequence 347, 1046, 523, ..., 347 (consisting of 44 distinct elements) is not an "odd path".  When k=12, the two dead limbs {7632, 3816, 1908, ..., 477, 1436, ..., 1334} and {7088, 3544, 1772, ..., 443, 1334, ..., 1436} form a cycle (containing all of 347, 1046, 523, ..., 347) where the attachment points are immediately after the odd natural numbers divisible by 3.

Limit Relationships in Least-Residue Trees and a Diophantine Equation

In this section, c is restricted to being 1 or -1.  Most of the results in this section are empirically derived.  Let y denote the first element of a limb in S and let z denote the first element of the limb that the limb in S attaches to.  Let x denote y-zx/y is largely fixed for a particular limb length; these ratios approach limits as k approaches infinity.  The x/y values for limbs that aren't dead approach their limits monotonically, that is, if c>0, then the maximum x/y value of live limbs of a given length for a given order is less than the maximum x/y value of live limbs of the given length for a larger order, and the minimum x/y value of live limbs of a given length for a given order is less than the minimum x/y value of live limbs of the given length for a larger order.  Similarly, if c<0, then the maximum x/y value of live limbs of a given length for a given order is greater than the maximum x/y value of live limbs of the given length for a larger order, and the minimum x/y value of live limbs of a given length for a given order is greater than the minimum x/y value of live limbs of the given length for a larger order.  The limits for limb lengths of 1, 2, 4, 5, 7, 9, 10, 12, 14, 15, 17, 18, 20, 22, 23, and 25 are -1/2, 1/4, -1/8, 7/16, 5/32, -17/64, 47/128, 13/256, -217/512, 295/1024, -139/2048, 1909/4096, 1631/8192, -3299/16384, 13085/32768, and 6487/65536 respectively.  When c=1, the x/y values approach their limits from below, so x values for limb lengths where the limits are negative (1, 4, 9, 14, 17, 22, ...) can never reach 0.  Similarly, when c=-1, the x/y values approach their limits from above, so x values for limb lengths where the limits are positive (2, 5, 7, 10, 12, 15, 18, 20, 23, 25, ...) can never reach 0.  (Note that not all limb lengths are permissible.  Lengths less than or equal to 101 that aren't permissible are 3, 6, 8, 11, 13, 16, 19, 21, 24, 26, 29, 32, 34, 37, 39, 42, 44, 47, 50, 52, 55, 57, 60, 63, 65, 68, 70, 73, 75, 78, 81, 83, 86, 88, 91, 94, 96, 99, and 101.)  Additionally, x and y have to be solutions of the Diophantine equation ny-dx=ce for some n, d, and e values that are fixed for a particular limb length.  The e values for limb lengths up to 18 are;

length=1, e=1
length=2, e=2
length=4, e=10
length=5, e=20
length=7, e=76, 58
length=9, e=260, 206
length=10, e=520, 412, 340
length=12, e=1688, 1364, 1148, 1004, 986, 842
length=14, e=5320, 4348, 3700, 3268, 3214, 2782
length=15, e=10640, 8696, 7400, 6536, 6428, 5960, 5564, 4988, 4916, 4340
length=17, e=32944, 27112, 23224, 20632, 20308, 18904, 17752, 17716, 15988, 15772, 14836, 14314, 14044, 12892, 12748, 12586, 11596, 11434, 11290, 10138
length=18, e=65888, 54224, 46448, 41264, 40616, 37808, 35504, 35432, 31976, 31544, 29672, 28628, 28088, 25784, 25496, 25172, 23192, 22868, 22580, 20276

Note that there are "consecutive length" pairs (1 and 2, 4 and 5, 9 and 10, 14 and 15, 17 and 18, ...) and that two times an e value for the smaller length of the pair is an e value for the larger length of the pair.  Other than a length of 2, an e value for the larger length of the pair is divisible by 4.  (Generalized dead limbs were previously discussed in connection with the properties of 3n+c cycles.  When the element after an odd element i in a generalized dead limb is defined to be 3i+1, the lengths of generalized dead limbs that aren't permissible are 3, 6, 11, 16, 19, 24, 29, 32, 37, 42, 47, 50, 55, 60, 63, 68, 73, 78, 81, 86, 91, 94, 99, 104, ....  The permissible lengths of generalized dead limbs include the permissible lengths of the limbs in S.  New permissible lengths [in the generalized dead limbs] are three larger than the second element of a consecutive-length pair in S.)  The origin of the Diophantine equation ny-dx=ce can be understood by using the previously mentioned formula s=(Xa-cZ)/Y.  Let i denote the last element of a limb in S and let a=(3i+c)/2.  Then x=(Xa-cZ)/Y-a, y=(Xa-cZ)/Y, n=X-Y, and d=X.  Substituting into the equation ny-dx=ce and simplifying gives e=Z.  Limbs in S having more than one element satisfy the Diophantine equation n(y/2)-(d/2)x=c(e/2) where d/2 is even.  By Proposition (59), y/2 is odd when the limb is not dead, so e/2 must be odd.  Limbs with lengths of 5, 10, 15, 18, 23, ... (where the e values are divisible by 4) must then be dead.

x>0 for limbs with positive x/y limits and x<0 for limbs with negative x/y limits (an empirical result), so a limb in S cannot attach to itself at its beginning.   Also, y>order/2, therefore x=0 implies n(order/2)<ce, c>0, n>0, or (-n)(order/2)<(-c)e, c<0, n<0, a contradiction (based on empirical evidence).  (Apparently, it is not necessary to solve the Diophantine equation ny=ce to arrive at a contradiction.)  Proving that n(order/2)>ce, c>0, n>0, or (-n)(order/2)>(-c)e, c<0, n<0, would require finding the smallest order for which a given e value of a given limb length occurs.  Let order1 denote the smallest order for which a given limb length occurs and let e11, e21, e31, ..., ei1 denote the e values that occur for this order.  Let e12, e22, e32, ..., ej2 denote the remaining e values that occur for the given limb length and 2order1, let e13, e23, e33, ..., ek3 denote the remaining e values that occur for the given limb length and 4∙order1, etc.  If c>0 and n>0, n(order1/2) is so much greater than ce11 for example, that n(order1/2)-ce11, n(order1/2)-ce21, n(order1/2)-ce31, ..., n(order1/2)-cei1 are all approximately equal.  Similarly, n(2∙order1/2)-ce12, n(2∙order1/2)-ce22, n(2∙order1/2)-ce32, ..., n(2∙order1/2)-cej2 are all approximately equal and approximately twice as large as the differences for order1.  Similar empirical results apply for c<0 and n<0.

The first step in proving that x cannot equal 0 is to find a formula for n.  This paragraph applies for limbs in S.  For a limb length of 12, X=28 and Y=35, for a limb length of 25, X=216 and Y=310, for a limb length of 38, X=224 and Y=315, ..., and for a limb length of 181, X=2112 and Y=370.  (Note that 28-35>1, so that 28i-35i>1 where i is a natural number and hence the limits for limb lengths of the form 13m-1 where m is a natural number less than or equal to 14 are positive.)  Blocks of eight adjacent limb lengths starting with a length of 1 and ending with a length of 181 consist of five types; an example of the first type is {1, 2, 4, 5, 7, 9, 10, 12}, an example of the second type is {40, 41, 43, 45, 46, 48, 49, 51}, an example of the third type is {66, 67, 69, 71, 72, 74, 76, 77}, an example of the fourth type is {105, 107, 108, 110, 111, 113, 115, 116}, and an example of the fifth type is {144, 146, 147, 149, 151, 152, 154, 155}.  There are exactly three pairs of numerically consecutive limb lengths in each type.  Denote the types by I, J, K, L, and M.  The types of blocks of eight adjacent limb lengths starting with a length of 1 and ending with a length of 181 are I, I, I, J, J, K, K, K, L, L, L, M, M, and M.  (In these blocks of eight adjacent limb lengths, the first limb length of a block is of the form 13m+1 where m is a non-negative integer.)  The n values for the first type are 28i-7-35i-4, 28i-6-35i-4, 28i-5-35i-3, 28i-4-35i-3, 28i-3-35i-2, 28i-2-35i-1, 28i-1-35i-1, and 28i-35i respectively, i=1, 2, and 3.  The n values for the second type are 28i-7-35i-4, 28i-6-35i-4, 28i-5-35i-3, 28i-4-35i-2, 28i-3-35i-2, 28i-2-35i-1, 28i-1-35i-1, and 28i-35i respectively, i=4 and 5.  The n values for the third type are 28i-7-35i-4, 28i-6-35i-4, 28i-5-35i-3, 28i-4-35i-2, 28i-3-35i-2, 28i-2-35i-1, 28i-1-35i, and 28i-35i respectively, i=6, 7, and 8.  The n values for the fourth type are 28i-7-35i-4, 28i-6-35i-3, 28i-5-35i-3, 28i-4-35i-2, 28i-3-35i-2, 28i-2-35i-1, 28i-1-35i, and 28i-35i respectively, i=9, 10, and 11.  The n values for the fifth type are 28i-7-35i-4, 28i-6-35i-3, 28i-5-35i-3, 28i-4-35i-2, 28i-3-35i-1, 28i-2-35i-1, 28i-1-35i, and 28i-35i respectively, i=12, 13, and 14.  Blocks of eight adjacent limb lengths starting with a length of 182 and ending with a length of 336 consist of five types.  An example of the first type is {182, 183, 185, 186, 188, 190, 191, 193}, an example of the second type is {208, 209, 211, 213, 214, 216, 217, 219}, an example of the third type is {234, 235, 237, 239, 240, 242, 244, 245}, an example of the fourth type is {286, 288, 289, 291, 292, 294, 296, 297}, and an example of the fifth type is {312, 314, 315, 317, 319, 320, 322, 323}.  Denote these types by I', J', K', L', and M'.  The types of blocks of eight adjacent limb lengths starting with a length of 182 and ending with a length of 336 are I', I', J', J', K', K', K', K', L', L', M', and M'.  There are exactly three pairs of numerically consecutive limb lengths in each type.  In these blocks of eight adjacent limb lengths, the first limb length of a block is of the form 13m where m is a natural number.  The n values for the first type are 28i-8-35i-4, 28i-7-35i-4, 28i-6-35i-3, 28i-5-35i-3, 28i-4-35i-2, 28i-3-35i-1, 28i-2-35i-1, and 28i-1-35i respectively, i=15 and 16.  The n values for the second type are 28i-8-35i-4, 28i-7-35i-4, 28i-6-35i-3, 28i-5-35i-2, 28i-4-35i-2, 28i-3-35i-1, 28i-2-35i-1, and 28i-1-35i respectively, i=17 and 18.  The n values for the third type are 28i-8-35i-4, 28i-7-35i-4, 28i-6-35i-3, 28i-5-35i-2, 28i-4-35i-2, 28i-3-35i-1, 28i-2-35i, and 28i-1-35i respectively, i=19, 20, 21, and 22.  The n values for the fourth type are 28i-8-35i-4, 28i-7-35i-3, 28i-6-35i-3, 28i-5-35i-2, 28i-4-35i-2, 28i-3-35i-1, 28i-2-35i, and 28i-1-35i respectively, i=23 and 24.  The n values for the fifth type are 28i-8-35i-4, 28i-7-35i-3, 28i-6-35i-3, 28i-5-35i-2, 28i-4-35i-1, 28i-3-35i-1, 28i-2-35i, and 28i-1-35i respectively, i=25 and 26.  Blocks of eight adjacent limb lengths starting with a length of 338 and ending with a length of 454 consist of three types; an example of the first type is {338, 340, 341, 343, 345, 346, 348, 350}, an example of the second type is {377, 379, 381, 382, 384, 385, 387, 389}, and an example of the third type is {416, 418, 420, 421, 423, 425, 426, 428}.  There are exactly two pairs of numerically consecutive limb lengths in each type (the last limb length in a block and the first limb length in the next block are numerically consecutive) and the first limb length of a block is of the form 13m where m is a natural number.  Denote these types by N, O, and P.  The types of blocks of eight adjacent limb lengths starting with a length of 338 and ending with a length of 454 are N, N, N, O, O, O, P, P, and P.  The n values for the first type are 28i-8-35i-4, 28i-7-35i-3, 28i-6-35i-3, 28i-5-35i-2, 28i-4-35i-1, 28i-3-35i-1, 28i-2-35i, and 28i-1-35i+1 respectively, i=27, 28, and 29.  The n values for the second type are 28i-8-35i-4, 28i-7-35i-3, 28i-6-35i-2, 28i-5-35i-2, 28i-4-35i-1, 28i-3-35i-1, 28i-2-35i, and 28i-1-35i+1 respectively, i=30, 31, and 32.  The n values for the third type are 28i-8-35i-4, 28i-7-35i-3, 28i-6-35i-2, 28i-5-35i-2, 28i-4-35i-1, 28i-3-35i, 28i-2-35i, and 28i-1-35i+1 respectively, i=33, 34, and 35.  An example of the type of blocks starting with a limb length of 456 is (456, 457, 459, 460, 462, 464, 465, 467).  (There is a limb length of 455, but this limb length is considered to be associated with the previous block.)  There are exactly three pairs of numerically consecutive limb lengths in each type and the first limb length of a block is of the form 13m+1 where m is a natural number.

The formula for the n values is valid for small limb lengths but gradually requires adjustments.  Let a denote the number of 2's in a sequence vector of a live limb in S and b the number of 1's in the sequence vector (a and b are fixed for a particular limb length).  The formula comes from the recursive algorithm  for generating the a and b values corresponding to limb lengths of 2, 4, 7, 9, 12, 14, 17, 20, 22, 25, 27, 30, 33, 35, 38, 40, ..., (that is, limb lengths where not all of the limbs are dead).  This algorithm is as follows.  Set x to 1/2 and a and b to 0.  If x is less than 1, set x to 3/2 times x and increment b, otherwise set x to 3/4 times x and increment a.  (See "Power Fractional Parts" at Wolfram Mathworld [http://www.mathworld.wolfram.com/PowerFractionalParts.html] for a discussion of the inequality frac[(3/2)N]≤1-(3/4)N and its relationship to Waring's problem and Collatz 1-cycles.)  The a values for limb lengths of 2, 4, 7, 9, 12, 14, 17, 20, 22, 25, 27, 30, 33, 35, 38, and 40 are 0, 0, 1, 1, 2, 2, 3, 4, 4, 5, 5, 6, 7, 7, 8, and 8 respectively and the b values are 1, 2, 2, 3, 3, 4, 4, 4, 5, 5, 6, 6, 6, 7, 7, and 8 respectively.  A steady-state where 5a is approximately equal to 7b is attained since 35 is approximately equal to 28.  Note that the recursive algorithm has been defined for 1-2 sequence vectors; the 3/2 factor corresponds to the "gain" due to a 1 in the sequence vector and the 3/4 factor corresponds to the "loss" due to a 2 in the sequence vector.  When the element after an odd element i is defined to be (3i+1)/2, the number of even elements in a live limb is a and the number of odd elements is a+b.  If a limb attached to itself at its beginning, the length of the cycle would be 2a+b+1.  Empirical evidence indicates that (2a+b)/(a+b) is approximately equal to log(3)/log(2).  As previously seen, this irrational number (equal to log2(3)) frequently arises in 3n+1 cycle theory.  Crandall showed (in his 1978 article) that if the main conjecture is true (that the cardinality of the "trajectory" of an odd natural number is finite), then powers of two and three tend to be poor approximations of each other.  In imprecise terms, log2(3) must then be difficult to approximate with rational numbers.  A parity vector is defined to be "admissible" when the sum of the elements in the vector equals the greatest integer in the length times θ where θ equals log(2)/log(3).  For limbs having a length of 2a+b and containing a+b odd elements, the parity vectors are almost admissible.  If another 0 is included in the parity vector (corresponding to a cycle), limbs with lengths of 2, 7, 12, 20, 25, 33, 38, ... (in the old way of defining the length and before the length is incremented by 1) are admissible.  Quoting from Lagarias' 1985 article, Terras' "Theorem C" is;

(a)  The set of integers with coefficient stopping time k are exactly the set of integers in those congruence classes n (mod 2k) for which there is an admissible vector v of length k with n=n0(v).

(b)  Let n=n0(v) for some vector v of length k.  If v is admissible, then all sufficiently large integers congruent to n (mod 2k) have stopping time k.  If v is not admissible, then only finitely many integers congruent to n (mod 2k) have stopping time k.

By part (b) of Terras' theorem, if y were congruent to n=n0(v) modulo 2k (for an admissible parity vector v having a length of k=2a+b+1) for a large order of least-residue tree, then the stopping time would be k, a contradiction (since y/2 is less than y).  As will be shown, there is a simpler way to arrive at the conclusion that a live limb in S of a given length (and with an arbitrary starting value y) cannot attach to itself at its beginning for a sufficiently large order of least-residue tree.  Limbs with lengths of 4, 9, 14, 17, 22, 27, 30, 35, ... (in the old way of defining the length and before the length is incremented by 1) are still not admissible, but n (defined to equal X-Y) is negative for these lengths.

For limb lengths of 2, 4, 9, 14, 22, 27, 35, 40, ..., the maximum z value divided by the minimum y value for live limbs associated with a given sequence vector is less than 3/2 and for limb lengths of 7, 12, 17, 20, 25, 30, 33, 38, ...., the minimum z value divided by the maximum y value for live limbs associated with a given sequence vector is greater than 3/4.  For live limbs with lengths of 4, 9, 14, 22, 27, ... (where the b values are 2, 3, 4, 5, 6, ... respectively and the b values for the next smaller limb lengths are 1, 2, 3, 4, 5, ..., respectively), the upper bound of the maximum y value to order ratio associated with the sequence vector giving the largest e value is (3/4)X/Y.  (For large orders, the maximum y value to order ratio is approximately equal to the upper bound, and as the order decreases, the maximum y value to order ratio gradually decreases [but not monotonically].)  For some limb lengths, the upper bound of the maximum y value to order ratio associated with a group of sequence vectors is different from the upper bounds associated with other groups of sequence vectors.  (As will be shown, these groups of sequence vectors are the same as those giving different frequencies of occurrence of live limbs.)  For example, for a live limb with a length of 12, the upper bound of the maximum y value to order ratio associated with the sequence vector giving the largest e value is 2/3((3/4)X/Y for a live with a length of 4) and the upper bound of the maximum y value to order ratio associated with the sequence vector giving the smallest e value is 16/27 ((3/4)X/Y for a live limb with a length of 9).  For a live limb with a length of 17, the upper bound of the maximum y value to order ratio associated with two sequence vectors (one of which is the sequence vector giving the largest e value) is 2/3 ((3/4)X/Y for a live limb with a length of 4), the upper bound of the maximum y value to order ratio associated with two other sequence vectors (one of which is the sequence vector giving the smallest e value) is 128/243 ((3/4)X/Y for a live limb with a length of 14), and the upper bound of the maximum y value to order ratio associated with the remaining sequence vector is 16/27 ((3/4)X/Y for a live limb with a length of 9).  The upper bound of the maximum y value to order ratio associated with any sequence vector of a live limb of a given length is one of 2/3, 16/27, 128/243, 4096/6561, 32768/50949, ....

These n values can then be substituted into the inequality n(order/2)>ce, c>0, n>0, or (-n)(order/2)>(-c)e, c<0, n<0.  The next step is to find the maximum e value for a given limb length.  Each sequence vector corresponds to exactly one e value (unproven as yet).  Denote the sequence vector array by v (where the array is indexed starting with 0).  Denote the number of elements in a sequence vector by l and the sum of the elements in the sequence vector by s.  The length of the limb is then l+s, the Y value of the limb is 3l, and the X value of  the limb is 2s+1.  The e value of the limb is ∑3i∙2m where the summation is from i=0 to l-1 and where m=∑vj and the summation is from j=0 to l-1-i.  The maximum e value for a given limb length then occurs when  the 2's are at the beginning of the sequence vector (for a limb that is not dead, there is a single 1 at the beginning of the sequence vector and the 2's must follow this 1).  The first odd element o in the limb after the 2's in the sequence vector is [(y/2)(3/4)a]+1 if c=1 or [(y/2)(3/4)a] if c=-1 where the brackets denote the greatest integer function.  The 1's in the sequence vector (not counting the initial 1) correspond to a jump (which goes beyond the end of the limb).  The first element of the limb that the limb attaches to is then z=(3/2)b(o+c)-c.  The e value is then (zX-yY)/c.  (The 2's in the sequence vector decrease the limb elements and the 1's in the sequence vector compensate for this by increasing the limb elements until the last element of the limb is greater than order/3.)  For a live limb in S, (y/2)(3/4)a(3/2)b+δ=z where δ is relatively small and positive if c≥1 or negative if c=-1.  x=0 then implies 1=(1/2)(3/4)a(3/2)b+δ/y.  3a+b/22a+b+1=Y/X, so whether x can equal 0 depends on how close n  gets to 0 (x=0 implies n=X(δ/y)).  (Approximating powers of 2 with powers of 3 becomes relevant at this point.)  For a given order, the largest |X(δ/y)| values correspond to the sequence vector giving the largest e value, so the largest |X(δ/y)| values are easily quantifiable (the X(δ/y) values only depend on the y values due to the greatest integer function).  As the order increases, the |X(δ/y)| values decrease.  For example, for c=1 and a limb length of 25, the first live limbs occur when the order equals 393216.  Live limbs occur that correspond to the ninth largest e value (for live limbs) and the fourteenth largest e value (for live limbs) and the respective X(δ/y) values are 2.624163 and 2.292368.  For an order of 786432, live limbs occur that correspond to the largest e value, the fourth largest e value, the sixth largest e value, the seventh largest e value, the eleventh largest e value, the twelveth largest e value, the seventeenth largest e value, and the eighteenth largest e value and the respective X(δ/y) values are 1.693732, 1.415807, 1.285766, 1.281626, 1.156335, 1.135663, 1.079423, and 1.011811.  The n value for this limb length is 6487.  Since y>order/2, an upper bound for |X(δ/y)| (valid for both c=1 and c=-1) is 22a+b+2-k((2(3/2)b-1)/3) (when a>0).  This can be used to find small orders for which n>X(δ/y) if c=1 or -n>X(-δ/y) if c=-1.  For live limbs with a length of 25, a=5, b=5, and 6487 is greater than the upper bound until k=6.  The smallest k values such that n is greater than the upper bound of X(δ/y), c>0, n>0, for live limbs with lengths of 7, 12, and 20 are 4, 7, and 5 respectively.

In his 1978 article, Crandall used continued fractions to show that if m>1 and Ck(m)=m, then k>17985 (C(x) is defined to be (3x+1)/2e(x) where 2e(x) is the highest power of two dividing 3x+1).  The following lemma is used.  Let 1<m=inf Tm and let k be the period of the trajectory Tm.  Then m<k(3+1/m)k-1/(2A(k)-3k) (where A(k) [due to typographical difficulties, A(k) is used to denote Ak] is a sum of positive integer sequence values).  For a live limb in S, this gives m<(a+b)(3+1/m)a+b-1/(22a+b+1-3a+b) where a and b are generated from the recursive algorithm above.  The elements of a live limb in S with a length less than or equal to 20 are greater than order/12.  (In general, the lower bound of the elements of the limb depends on the sequence vector giving the maximum e value.  For example, for a limb length of 22, (1/4)(3/4)4<1/2.)  The largest k values for which 2k-2<(a+b)(3+1/2k-2)a+b-1/(22a+b+1-3a+b) for live limbs with lengths of 7, 12, and 20 are 4, 7, and 5 respectively.  (a+b)3a+b-1/(22a+b+1-3a+b) does not grow very fast as a and b increase, so the maximum order for which a cycle might occur can be approximated fairly accurately.  The difficulty with this approach (and the above approach) is that small orders have to be checked for cycles for every limb length.

More miscellaneous results pertaining to allowable (not necessarily admissible) sequence vectors and the maximum e values are discussed in this section.  The sequence vectors of limbs in S that aren't dead for lengths of two, four, seven, and nine are (1), (1, 1), (1, 2, 1), and (1, 2, 1, 1) respectively.  The only possible sequence vectors for a live limb in S with a length of twelve are (1, 2, 2, 1, 1) and (1, 2, 1, 2, 1).  The only possible sequence vectors for a live limb in S with a length of fourteen are (1, 2, 2, 1, 1, 1) and (1, 2, 1, 2, 1, 1).  For a live limb in S with a length of 17 or 20, there are five different sequence vectors.  For a live limb in S with a length of 22, there are nine different sequence vectors and for a live limb in S with a length of 25, there are nineteen different sequence vectors.  A subset of the sequence vectors for a limb length of 22 is;

   (1, 2, 1, 2, 1, 2, 2, 1, 1)
   (1, 2, 2, 1, 1, 2, 2, 1, 1)
   (1, 2, 2, 1, 2, 1, 2, 1, 1)
   (1, 2, 2, 1, 2, 2, 1, 1, 1)
   (1, 2, 2, 2, 1, 2, 1, 1, 1)
   (1, 2, 2, 2, 2, 1, 1, 1, 1)

The first sequence vector corresponds to the smallest e value for a live limb and the last sequence vector corresponds to the largest e value for a live limb.  The second sequence vector is obtained from the first sequence vector by transposing an adjacent 1 and 2, the third sequence vector is obtained from the second sequence vector by transposing an adjacent 1 and 2, the fourth sequence vector is obtained from the third sequence vector by transposing an adjacent 1 and 2, etc. until the last sequence vector is obtained.  The number of elements in a sequence vector is l (9 in this case) and the number of sequence vectors (6) is approximately equal to l.  The 1's and 2's that are transposed gradually move from left to right in a somewhat regular fashion, wrap around at the third-to-last sequence vector, and then resume moving from left to right.  The minimum e value divided by the maximum e value is 0.62636.  The corresponding subset of sequence vectors for a limb length of 25 is;

   (1, 2, 1, 2, 2, 1, 2, 1, 2, 1)
   (1, 2, 1, 2, 2, 2, 1, 1, 2, 1)
   (1, 2, 1, 2, 2, 2, 1, 2, 1, 1)
   (1, 2, 2, 1, 2, 2, 1, 2, 1, 1)
   (1, 2, 2, 2, 1, 2, 1, 2, 1, 1)
   (1, 2, 2, 2, 1, 2, 2, 1, 1, 1)
   (1, 2, 2, 2, 2, 1, 2, 1, 1, 1)
   (1, 2, 2, 2, 2, 2, 1, 1, 1, 1)

In this case, l=10 and the number of sequence vectors is 8.  The minimum e value divided by the maximum e value is 0.55595.  The corresponding subset of sequence vectors for a limb length of 27 is;

   (1, 2, 1, 2, 1, 2, 2, 1, 2, 1, 1)
   (1, 2, 1, 2, 1, 2, 2, 2, 1, 1, 1)
   (1, 2, 2, 1, 1, 2, 2, 2, 1, 1, 1)
   (1, 2, 2, 1, 2, 1, 2, 2, 1, 1, 1)
   (1, 2, 2, 1, 2, 2, 1, 2, 1, 1, 1)
   (1, 2, 2, 2, 1, 2, 1, 2, 1, 1, 1)
   (1, 2, 2, 2, 1, 2, 2, 1, 1, 1, 1)
   (1, 2, 2, 2, 2, 1, 2, 1, 1, 1, 1)
   (1, 2, 2, 2, 2, 2, 1, 1, 1, 1, 1)

In this case, l=11 and the number of sequence vectors is 9.  The minimum e value divided by the maximum e value is 0.53027.  The corresponding subset of sequence vectors for a limb length of 30 is;

   (1, 2, 1, 2, 1, 2, 2, 1, 2, 1, 2, 1)
   (1, 2, 1, 2, 1, 2, 2, 2, 1, 1, 2, 1)
   (1, 2, 1, 2, 1, 2, 2, 2, 1, 2, 1, 1)
   (1, 2, 1, 2, 2, 1, 2, 2, 1, 2, 1, 1)
   (1, 2, 1, 2, 2, 2, 1, 2, 1, 2, 1, 1)
   (1, 2, 1, 2, 2, 2, 2, 1, 1, 2, 1, 1)
   (1, 2, 1, 2, 2, 2, 2, 1, 2, 1, 1, 1)
   (1, 2, 1, 2, 2, 2, 2, 2, 1, 1, 1, 1)
   (1, 2, 2, 1, 2, 2, 2, 2, 1, 1, 1, 1)
   (1, 2, 2, 2, 1, 2, 2, 2, 1, 1, 1, 1)
   (1, 2, 2, 2, 2, 1, 2, 2, 1, 1, 1, 1)
   (1, 2, 2, 2, 2, 2, 1, 2, 1, 1, 1, 1)
   (1, 2, 2, 2, 2, 2, 2, 1, 1, 1, 1, 1)

In this case, l=12 and the number of sequence vectors is 13.  The 1's and 2's to be transposed move from left to right in a more regular fashion and wrap around twice.  The minimum e value divided by the maximum e value is 0.42839.  The corresponding subset of sequence vectors for a limb length of 33 is;

   (1, 2, 2, 1, 2, 1, 2, 2, 1, 2, 1, 2, 1)
   (1, 2, 2, 2, 1, 1, 2, 2, 1, 2, 1, 2, 1)
   (1, 2, 2, 2, 1, 2, 1, 2, 1, 2, 1, 2, 1)
   (1, 2, 2, 2, 2, 1, 1, 2, 1, 2, 1, 2, 1)
   (1, 2, 2, 2, 2, 1, 2, 1, 1, 2, 1, 2, 1)
   (1, 2, 2, 2, 2, 2, 1, 1, 1, 2, 1, 2, 1)
   (1, 2, 2, 2, 2, 2, 1, 1, 2, 1, 1, 2, 1)
   (1, 2, 2, 2, 2, 2, 1, 2, 1, 1, 1, 2, 1)
   (1, 2, 2, 2, 2, 2, 1, 2, 1, 1, 2, 1, 1)
   (1, 2, 2, 2, 2, 2, 2, 1, 1, 1, 2, 1, 1)
   (1, 2, 2, 2, 2, 2, 2, 1, 1, 2, 1, 1, 1)
   (1, 2, 2, 2, 2, 2, 2, 1, 2, 1, 1, 1, 1)
   (1, 2, 2, 2, 2, 2, 2, 2, 1, 1, 1, 1, 1)

In this case, l=13 and the number of sequence vectors is 13.  The 1's and 2's to be transposed wrap around once.  Since the length of a sequence vector approximately equals the number of sequence vectors, the 1's and 2's to be transposed move on average one position to the right from one sequence vector to the next (disregarding wrap-around).  The minimum e value divided by the maximum e value is 0.44269 (the minimum e value divided by the maximum e value approaches 1/2).

The remaining step is to find the smallest order for which a given e value occurs.  One-half of the limbs in S consist of 1 element, about 1/3 of the limbs in S consist of two elements, about 1/12 of the limbs in S consist of four elements, about 1/72 of the limbs in S consist of five elements, about 1/36 of the limbs in S consist of seven elements, about 5/576 of the limbs in S consist of nine elements, about 7/864 of the limbs in S consist of ten elements, about 77/7776 of the limbs in S consist of twelve elements, about 13/15552 of the limbs in S consist of fourteen elements, and about 815/186624 of the limbs in S consist of fifteen elements.  The denominators of these fractions are a power of two times a power of three.  Denote a fraction by f.  The number of limbs in S (for an order of 3∙2k, k>2) is 2k-1.  Denote the number of limbs in S of a given length by m.  For limb lengths of 2, 4, or 5, 0≤[2k-1f]+1-m≤1, for limb lengths of  7, 9, or 10, -1≤[2k-1f]+1-m≤2, and for limb lengths of 12, 14, or 15, -2≤[2k-1f]+1-m≤3, where the brackets denote the greatest integer function.  About 2/3 of  the limbs in S with a length of 1 are alive, about 1/2 of the limbs in S with a length of 2 are alive, about 1/2 of the limbs in S with a length of 4 are alive, about 1/6 of the limbs in S with a length of 7 are alive, about 1/3 of the limbs in S with a length of 9 are alive, about 25/154 of the limbs in S with a length of 12 are alive, and about 1/4 of the limbs in S with a length of 14 are alive.  Denote one of these fractions by f' and denote the number of live limbs in S of a given length by m'.  For limb lengths of 1, 0=[2k-1ff']-m', for limb lengths of 2, 4, 7, or 9, 0≤[2k-1ff']-m'≤1, and for limb lengths of 12 or 14, -1≤[2k-1ff']-m'≤2.  For longer limb lengths, the portion of the limbs in S is similarly fixed.  The a+b values of the live limbs in S with lengths of 2, 4, 7, 9, 12, 14, ..., are 1, 2, 3, 4, 5, 6, ...., respectively.  For every value of j, j=1, 2, 3, ..., there is a relatively small odd natural number g, a relatively small natural number h, and a natural number i approximately equal to j such that 2k-1(g/(2h 3i)) closely approximates the number of live limbs in S with the corresponding length.  For live limbs in S with lengths of 17, 20, 22, 25, 27, 30, and 33, the g values are 233, 695, 6349, 3791, 2831, 3425, and 7359 respectively, the h values are 11, 11, 10, 12, 13, 8, and 13 respectively, and the i values are 5, 8, 10, 9, 9, 12,  and 13 respectively.  (These values aren't unique; similar g and h values can be found when i is set to j.)  For some limb lengths, live limbs associated with certain sequence vectors occur more frequently than live limbs associated with other sequence vectors.  For example, for a limb length of 12, there is a group of live limbs in S associated with the sequence vector giving the largest e value where the probability of occurrence is 17/(26∙35) and there is a group of live limbs in S associated with the sequence vector giving the smallest e value where the probability of occurrence is 1/(23∙35) (the sum of these probabilities is 25/(26∙35)).  For a limb length of 17, there is one group of live limbs in S associated with two sequence vectors (one of which is the sequence vector giving the largest e value) where the probability of occurrence is 1/(210∙31), another group of live limbs in S associated with two other sequence vectors (one of which is the sequence vector giving the smallest e value) where the probability of occurrence is 13/(210∙35), and another group of live limbs in S associated with the remaining sequence vector where the probability of occurrence is 5/(211∙33) (the sum of these probabilities is 233/(211∙35)).  For a limb length of 22, the probabilities of occurrence for live limbs in S in the different groups are 1147/(28∙310), 5/(213∙33), and 13/(213∙35).  For a limb length of 25, the probabilities of occurrence for live limbs in S in the different groups are 1237/(211∙39), 853/(212∙39), and 29/(28∙39).  For a limb length of 27, the probabilities of occurrence for live limbs in S in the different groups are 2567/(213∙39) and 11/(210∙38).  For a limb length of 30, the probabilities of occurrence for live limbs in S in the different groups are 131/(212∙37), 107/(212∙38), 865/(29∙312), 215/(29∙311), and 185/(210∙311).  For limb lengths of 14, 20, or 33, there is only one group of live limbs in S associated with the different sequence vectors.  The differences between the estimated number of live limbs in S using these probabilities (where rounding is done) and the actual number of live limbs in S for different orders and limb lengths (denoted by L) when c=1 are;

        k=12   13   14   15   16   17   18   19   20   21   22   23   24   25   26   27   28   29   30   31   32   33
L=2       0     1     0     1     0     1     0     1     0     1     0     1     0     1     0     1     0     1     0     1     0     1
     4       0     0     0     0     0     0     0     0     0     0     0     0     0     0     0     0     0     0     0     0     0     0
     7       0     0     0     0     1   -1     0     0     0     0     0     0     0    -1    1    -1     0     0     0     0     0     0
     9       0     0     1     0     0     1     0     1     0     0     0     0     1     0     0     1     0     0     0     0     1     0
   12       0     0     0     0     0   -1     1   -1     1    -1   -1     0     0     0    -1    -1    0     0      0     0     0     0
   14      -1    0     0   -1     0     0    -1     0     0     0     0     0     0     0     0     0   -1     0     -1     0    -1    0
   17       0     1     1     1     0     1     0     1   -1     1     0     1     0     2     1     1     0     1     0     0     1     0
   20       0   -1     0    -1     1   -1     1     0     1    -1     1   -1     1     0     1    -1     0   -1     1    -1     1   -1
   22       0   -1     1     0    -3   -1    -2    0    -1    -1   -1   -2    -3   -2    -1   -3    -2     0     1     1     1     2
   25       0     0     0     1     2     1   -2     3     0     5     4     4     1     2     0     5     0    -1   -4     1     1     6
   27       0     0     0     0     1   -1     1     2     3    -1    0     4    -1     1     2     1     5     2     1     1     0     0
   30       0     0     0     0     0     1     3   -3     1     0    -2   -2    -1    1    -2    -2   -2     1     0     1     1     4
   33       0     0     0     0     0     0     0    0    -1     1    -1    1     0    -4     1     0     2    -3     2   -5      0   -7

For every order and limb length, the difference between the number of live limbs in S associated with one sequence vector in a group and the number of live limbs in S associated with another sequence vector in the group is at most 1.  (This appears to still be true for live limbs in A, B, C, or D or any other similarly constructed subset of S where the last elements in the limbs are congruent to an odd natural number j modulo 2i, j<2i , i<k).

The above property can be used to estimate the smallest order for which a live limb in S with a given length occurs.  For example, assuming that the upper bound of the difference between the estimated and actual number of live limbs with a length of 25 (where the difference is given by the formula [2k-1(3791/(212∙39))+0.5]-m') is 6 (a somewhat dubious proposition) gives m'≥1 when k=19 (when c=1, the smallest order for which a live limb with a length of 25 occurs is 3∙217).  The n value for a limb length of 25 is 6487 and the largest e value is 811694, so n(order/2) is much greater than ce, c>0, n>0, when order=3∙219.  The difficulty with this approach is determining the upper bound of the difference between the estimated and actual number of live limbs.

When c>1, there are relatively few limbs in S having lengths other than 1, 2, 4, 5, 7, 9, 10, 12, 14, 15, 17, 18, 20, 22, 23, 25, ....  When k is sufficiently large for a given limb length and c value greater than 1, the limbs in S have many of the above properties.

Another Kind of Least-Residue Tree

In this section, c is restricted to being 1 or -1.  Consider a tree where the order is of the form 3∙2k and no element of a limb is greater than or equal to the order or divisible by 3.  The first element of a limb must be even and greater than the order divided by 2, the last element of a limb must be odd and greater than the order divided by 3, and every limb must contain at least one element that is divisible by 8.  (As for a limb in S of a least-residue tree, a limb cannot attach to its interior or the interior of another limb.)  The possible lengths of these limbs are 12, 14, 15, 17, 18, 20, 22, 23, ....  The lengths of the limbs are the same as those for a limb in S of a least-residue tree (except there are no lengths of 1, 2, 4, 5, 7, or 9) and the X and Y values are the same.  Denote the first element of a limb by y, the last element of a limb by i, (3i+c)/2 by z, and y-z by x.  As before, x and y satisfy the Diophantine equation ny-dx=ce where n=X-Y, d=X, and the e values are fixed for a given limb length.  Some e values are;

length=12, e=1202
length=14, e=3862
length=15, e=7724, 5780
length=17, e=24196, 22738, 18850, 18364, 16906, 16258, 14530, 14476, 13378, 13018
length=18, e=48392, 45476, 37700, 36728, 33812, 32516, 29060, 28952, 26756, 26036

For a given limb length, the largest e value is larger than the largest e value for a live limb in S of a least-residue tree (when not all of the limbs are dead for that length) and the smallest e value (when there is more than one e value) is smaller than the largest e value for a live limb in S of a least-residue tree (when not all the limbs are dead for that length).  The lengths of the sequence vectors for limb lengths of 12, 14, 15, 17, 18, 20, 22, and 23 are 5, 6, 6, 7, 7, 8, 9, and 9 respectively.  The largest elements in the sequence vectors for limb lengths of 12, 14, 15, 17, 18, 20, 22, and 23 are 3, 3, 3, 4, 4, 5, 5, and 5 respectively.  For some limb lengths, limbs associated with certain sequence vectors occur more frequently than limbs associated with other sequence vectors.  For example, for a limb length of 17, the number of  limbs associated with two sequence vectors is about [2k-1(295/(29∙36))+0.5], the number of limbs associated with five other sequence vectors is about [2k-1(5/(210∙31))+0.5], the number of limbs associated with two other sequence vectors is about [2k-1(5/(29∙33))+0.5], and the number of limbs associated with the remaining sequence vector is about [2k-1(13/(210∙35))+0.5].  For every order and limb length, the difference between the number of limbs associated with one sequence vector in a group and the number of limbs associated with another sequence vector in the group is at most 2.  For some limb lengths, the upper bound of the maximum y value to order ratio associated with a group of sequence vectors is different from the upper bounds associated with other groups of sequence vectors.  (These groups of sequence vectors are the same as those giving different frequencies of occurrence of limbs.)  For example, for a limb length of 17, the upper bound of the maximum y value to order ratio associated with two sequence vectors is 512/729, the upper bound of the maximum y value to order ratio associated with five other sequence vectors is 2/3, the upper bound of the maximum y value to order ratio associated with two other sequence vectors is 16/27, and the upper bound of the maximum y value to order ratio associated with the remaining sequence vector is 128/243.  For limb lengths of 12, 14, 15, 17, 18, 20, 22, and 23, the number of limbs can be approximated by [2k-1f+0.5] where f equals 17/(25∙35), 13/(28∙35), 353/(28∙36), 1057/(29∙36), 695/(29∙37), 6733/(210∙37), 9817/(213∙36), and 56915/(214∙37) respectively.  The number of limbs in one of these trees is approximately equal to the order divided by 144.

m-Cycles

In their 2005 article, Simons and de Weger gave bounds for Λ=(K+L) log 2 - K log 3 (where K is the total number of odd elements and L is the total number of even elements in the m-cycle).  A corollary proved is 0<Λ<m/xmin.  For a limb in S of a least-residue tree (with a length of 3a+2b) to attach to itself at its beginning, this gives xmin<(a+1)/((2a+b+1) log 2 - (a+b) log 3).  This upper bound for the minimum is about twice as large as the minimum given by Halbeisen and Hungerbühler's formula.  In the next two sections, the upper bound of the minimum will be computed when it's not computationally feasible to compute the minimum.

The Minimum in a Collatz Cycle

In this section, c is restricted to being 1 or -1.  The results in this section are mostly empirically derived.  The 1-2 sequence vector (of a limb in S having a length of l and containing m odd elements) corresponding to a small e value (possibly the smallest) can be constructed from ]jm/l[ - ](j-1)m/l[, j=1, 2, 3, ..., l, by rotating (if necessary) the vector so that a (1, 1) is at the beginning of the vector and converting (1, 0)'s to 2's.  The last element of the sequence vector will be a 2 and must be changed to a 1 to match the sequence vector corresponding to the smallest e value.  (Note that this rotation of the parity vector does not correspond to the parity vector of a limb in S [since the first element must be even] and that the first element of a sequence vector just indicates that the first element of the limb is even [and not that there is an odd natural number in the 3n+c sequence immediately preceding it].  If a cycle were formed by a limb attaching to itself at its beginning, the first element of the sequence vector would be changed to a 2 [and the 2 would indicate that there were 2 even elements between odd elements in the sequence].)  For example, for a limb length of 20, the parity vector must be rotated right by 5 positions for the resulting sequence vector to match the sequence vector corresponding to the smallest e value.  (The possible right-rotations for a limb length of 20 are 0, 5, and 10.  In general, the difference between successive right-rotations is 3 or 5.)  The required right-rotations of the parity vector for limb lengths of 2, 4, 7, 9, 12, 14, 17, 20, 22, 25, 27, 30, 33, 38, and 43 are 0, 0, 0, 0, 0, 0, 0, 5, 11, 0, 11, 0, 5, 0, and 0 respectively.  If the un-rotated parity vector gives an e value for a limb in S, then the e value is the smallest for a limb in S and all the possible right-rotations give e values for limbs in S.  For limb lengths of 20, 22, 27, 33, 35, 40, 45, 48, 51, 53, and 56, the un-rotated parity vector gives e values too small to be a limb in S.  In these cases, a right-rotation of 5 gives an e value (usually not the smallest) for a limb in S.

A rotation of the parity vector ]jm/l[ - ](j-1)m/l[, j=1, 2, 3, ..., l, so that a (1, 0) is at the beginning of the vector does not correspond to a live limb in S since the second element of a live limb in S is odd.  A rotation of the parity vector so that a (0, 1) is at the beginning of the vector corresponds to a live limb in S, but except for limb lengths of 7, 12, 17, 30, 43, ..., the e values given are too small.  For a given limb length, live limbs in S occur for only one right-rotation of the parity vector ]jm/l[ - ](j-1)m/l[, j=1, 2, 3, ..., l.  (The resulting sequence vectors for limb lengths of 7, 12, 17, 30, and 43 are (1, 2, 1), (1, 2, 1, 2, 1), (1, 2, 1, 2, 1, 2, 1), (1, 2, 1, 2, 1, 2, 2, 1, 2, 1, 2, 1), and (1, 2, 1, 2, 1, 2, 2, 1, 2, 1, 2, 2, 1, 2, 1, 2, 1) respectively.  [For example, for a limb length of 43, the parity vector is 0, 1, 0, 1, 1, 0, 1, 1, 0, 1, 0, 1, 1, 0, 1, 1, 0, 1, 0, 1, 1, 0, 1, 1, 0, 1, and 1.  Changing the last 1 and the first 0 (a (1, 0)) to a 1 and the other (1, 0)'s to 2's gives the sequence vector.]  These sequence vectors have bilateral symmetry and are the sequence vectors corresponding to the smallest e values.)

For limb lengths less than or equal to 51, no limb in S can have the parity vector ]jm/l[ - ](j-1)m/l[, j=1, 2, 3, ..., l, if l and m are not relatively prime (51 is the largest limb length where it is computationally feasible to determine this [at least by an exhaustive search up to relatively large orders of least-residue trees]).  For limb lengths of 7, 12, 17, 30, and 43, l and m are relatively prime and there are limbs in S having the parity vector ]jm/l[ - ](j-1)m/l[, j=1, 2, 3, ..., l, (the (l, m) values for limb lengths of 12 and 30 [(8, 5) and (19, 12) respectively] are continued-fraction convergents of log(3)/log(2)).  For limb lengths of 20, 22, 27, 33, 40, and 48, l and m are relatively prime, but there are no limbs in S having the parity vector ]jm/l[ - ](j-1)m/l[, j=1, 2, 3, ..., l.

For a live limb in S, the second sequence vector value is a 2 if the limb length is greater than 4 (so that the parity vector must begin with a (0, 1, 0)).  Let v1, v2, v3, ..., vl be a right-rotation of the parity vector ]jm/l[ - ](j-1)m/l[, j=1, 2, 3, ..., l, such that v1=0, v2=1, and v3=0.  Let s1=1.0 and si+1=(3/2)si if vi=1 or (1/2)si otherwise, i=1, 2, 3, ..., l-1.  Let r denote gcd(l, m).  Requirements for a live limb in S (with a sufficiently large beginning element y) to have this right-rotated parity vector are that (1) twice the minimum s value be greater than the maximum "odd" s value for all possible right-rotations of the parity vector where v1=0, v2=1, and v3=0, (2) the difference in successive right-rotations of the parity vector and the difference in successive indices (modulo l/r) of the minimum s value must be the same for all possible right-rotations of the parity vector where v1=0, v2=1, and v3=0, and (3) the difference in the indices (modulo l/r) of the minimum and maximum "odd" s values must be the same for all possible right-rotations of the parity vector where v1=0, v2=1, and v3=0.  Limb lengths satisfying the first condition for m values less than or equal to 100 are 7, 12, 17, 20, 25, 30, 38, 43, 51, 56, 61, 74, 87, 92, 105, 123, 136, 211, and 242.  Of the first 8192 limb lengths, 20 is the only limb length that satisfies the first and third conditions, but not the second condition.  Of the first 8192 limb lengths, 56 is the only limb length that satisfies the first condition, but not the second and third conditions.  (l, m) values satisfying the first condition are (5, 3), (8, 5), (11, 7), (13, 8), (16, 10), (19, 12), (24, 15), (27, 17), (32, 20), (35, 22), (38, 24), (46, 29), (54, 34), (57, 36), (65, 41), (76, 48), (84, 53), (130, 82), (149, 94), (168, 106), (233, 147), (252, 159), (317, 200), (336, 212), (401, 253), (420, 265), (485, 306), (504, 318), (569, 359), (970, 612), (1054, 665), (1455, 918), (1539, 971), (2108, 1330), (2593, 1636), (3162, 1995), (3647, 2301), (4216, 2660), (4701, 2966), (5270, 3325), (5755, 3631), (6324, 3990), (6809, 4296), 7378, 4655), (7863, 4961), (8432, 5320), (8917, 5626), (9486, 5985), (9971, 6291), (10540, 6650), (11025, 6956), (11594, 7315), (12079, 7621), (12648, 7980), ....  Except for (13, 8), (32, 20), (35, 22), and (54, 34), these are generalized continued-fraction convergents of log(3)/log(2) (all the convergents except (1, 1), (2, 1), (3, 2), (4, 2), (6, 4), and (9, 6) are included).

The Minima in Collatz Cycles and Prime Gaps

In this section, c is restricted to being 1 or -1 and Halbeisen and Hungerbühler's formula is used to compute the minimum in a cycle formed by a limb in S of a least-residue tree attaching to itself at its beginning (this assumes the cycle has the above parity vector).  l denotes the number of elements in the cycle and m denotes the number of odd elements.  The absolute value of 2l-3m is not used when computing the "minimum".  The minima where m is a multiple of a natural number d increase and decrease in a regular fashion.  For example, the truncated minima for m=5, 10, 15, ..., 65 are 24, 24, 24, 24, 24, -19, -27, -35, -48, -70 -111, -219, and -1004 respectively, the truncated minima for m=70, 75, 80, ..., 130 are 463, 204, 137, 108, 88, -58, -70, -86, -111, -147, -219, -361, and -1004 respectively, and the truncated minima for m=135, 140, 145, ..., 195 are 1561, 463, 281, 204, 162, 137, -111, -133, -165, -219, -295, -462, and -1004 respectively.  In general, the minima for d =5 have a roughly saw-tooth shaped curve with a period of 13 or 14.  Some long periods (and large minima) occur for d=7, 12, 17, 19, 22, and 29; the periods are 10 or 11, 51 or 52, 17 or 18, 8 or 9, 7 or 8, and 27 or 28 respectively.  The "superposition" of these quasi-periodic "waves" is of importance in determining the largest minima.  For example, a large truncated minimum (for c=-1) of -3664765 occurs when m=665=5∙7∙19.

The periods for prime m values less than 41346 and of the form 12k-1, k=1, 2, 3, ..., are 17, 24, 24, 18, 18, 22, 18, 15, 19, 19, ..., 17, 14, 16, 13, 13, 13, 16, 17, 15, and 13.  A period is considered to start with a negative minima value and end with a positive minima value.  A "peak" occurs when there is a positive spike in minima values (at the end of a period) immediately followed by a negative spike.  The difference in m values between successive peaks in minima values appears to be fairly constant (usually 612, but as small as 528 or as large as 696).  Similar results apply for prime m values of the form 12k-5, 12k-7, or 12k+1.  Let x denote one-twelveth of the difference in m values between successive peaks in minima values.  For prime m values less than 2000000, the x values range from 31 to 107, the distribution of x values for 31, 32, 33, ..., 71 is 2, 5, 3, 11, 14, 22, 29, 29, 46, 98, 110, 156, 171, 228, 394, 418, 563, 697, 1047, 1578, 1561, 1367, 953, 819, 823, 477, 333, 270, 190, 175, 102, 70, 70, 40, 46, 24, 12, 10, 6, 9, and 3 respectively (a population centered around x=51), and the distribution of x values for 91, 92, 93, ..., 107 is 1, 1, 0, 0, 0, 0, 1, 0, 3, 3, 3, 1, 3, 4, 3, 0, and 1 respectively (a second population centered around x=102).  There should be infinitely many such populations.  The minima appear to be bounded for all m values in a given population.  For example, 240∙1.5704 is an upper bound of the minima (as computed using the m-cycle inequality) in the first population when m is less than 1000000 and is still an upper bound of the minima in the first population when m is less than 6000000.  When c=-1, 239∙1.2002 is an upper bound of the minima in the first population when m is less than 3000000 and is still an upper bound of the minima in the first population when m is less than 6000000.

The minima in the second population do not increase monotonically within a period; there is a characteristic dip about half-way through the period.  For example, a graph of truncated upper bounds of minima (scaled by 32768.0) for m=609757, 609781, 609877, ..., 610993 (primes of the form 12k+1) is;



Similarly, there is a dip about a third of the way through the period and another dip about two-thirds of the way through the period for the minima in the third population.  For example, a graph of truncated upper bounds of minima (scaled by 32768.0) for m=5905433, 5905553, 5905673, ..., 5907353 (primes of the form 12k+5) is;



A graph of the maximum upper bounds of minima (scaled by 65536.0) for x values from 31 to 72 (in the first population) for prime m values less than 6000000 is;


(The scaled maximum upper bounds of minima for x=31, 32, 33, ..., 52 are 174, 188, 199, 226, 234, 248, 274, 295, 320, 344, 379, 418, 480, 532, 634, 746, 934, 1202, 1760, 3356, 24559, and 26346062 respectively.  This appears to be an exponential probability distribution where μ=1.1993e+06 with a 95% confidence interval of (.8219e+06, 1.9136e+06).  The scaled maximum upper bounds of minima for x=53, 54, 55, ..., 72 appear to be random samples from the same exponential probability distribution.)  A graph of the maximum upper bounds of minima (scaled by 65536.0) for x values from 89 to 114 (in the second population) for prime m values less than 6000000 is;


A graph of the sorted maximum upper bounds of minima for x values from 89 to 144 for prime m values less than 6000000 is;


The periods for prime l values of the form 54k+1 are approximately equal.  Similar results apply for prime l values of the form 54k+5, 54k+7, 54k+11, 54k+13, 54k+17, 54k+19, 54k+23, 54k+25, 54k+29, 54k+31, 54k+35, 54k+37, 54k+41, 54k+43, 54k+47, 54k+49, or 54k+53.  Let x denote one fifty-fourth of the difference in l values between successive peaks in minima values.  For prime l values less than or equal to 3169919, the distribution of x values for 11, 12, 13, ..., 17 is 504, 1488, 2848, 4712, 4054, 1907, and 1009 respectively (a population centered around x=14), the distribution of x values for 25, 26, 27, ..., 32 is 183, 937, 1510, 2826, 2409, 2020, 811, and 165 respectively (a population centered around x=28), the distribution of x values for 40, 41, 42, ..., 46 is 433, 664,1312, 1258, 899, 705, and 184 respectively (a population centered around x=42), etc.  For prime l values less than or equal to 6339847, the scaled (by 65536.0) maximum upper bounds of minima (as computed using the m-cycle inequality) for x values of 11, 12, 13, ..., 17 are 6220270, 436632, 744405, 514414, 597, 256, and 166 respectively.  For prime l values less than or equal to 6339847, the scaled maximum upper bounds of minima for x values of 25, 26, 27, ..., 32 are 332686, 1366582, 93783, 526748, 831, 299, 179, and 130 respectively.  For prime l values less than or equal to 6339847, the scaled maximum upper bounds of minima for x values of 40, 41, 42, ..., 46 are 301174, 540827, 101914, 1552, 362, 196, and 139 respectively.  These appear to be exponential probability distributions.  For prime l values less than or equal to 9509761, the scaled maximum upper bounds of minima for x values of 11, 12, 13, ..., 17 are 6220270, 436632, 744405, 916817, 900, 387, and 246 respectively.  For prime l values less than or equal to 9509761, the scaled maximum upper bounds of minima for x values of 25, 26, 27, ..., 32 are 9037278, 1366582, 229310, 526748, 1320, 439, 269, and 195 respectively.  For prime l values less than or equal to 9509761, the scaled maximum upper bounds of minima for x values of 40, 41, 42, ..., 46 are 301174, 540827, 149513, 2343, 521, 294, and 204 respectively.  In general, the scaled maximum upper bounds of minima for the larger x values of each population are still growing.  (As the prime gaps become larger, the scaled maximum upper bounds of minima for even the larger x values of say the first population should stop growing.)

A graph of minima (along the y axis) for m=11, 59, 71, ..., 5099 (primes of the form 12k-1 where m+2 is also a prime) is;


A graph of minima for m=13, 61, 73, ..., 5101 (primes of the form 12k+1 where m-2 is also a prime) is;


A graph of minima for m=5, 17, 29, ..., 5021 (primes of the form 12k-7 where m+2 is also a prime) is;


A graph of minima for m=7, 19, 31, ..., 5023 (primes of the form 12k-5 where m-2 is also a prime) is;


A graph of the upper bounds of the minima for m=11, 59, 71, ..., 9767 (primes of the form 12k-1 where m+2 is also a prime) is;



A graph of the upper bounds of the minima for m=5, 17, 29, ..., 9929 (primes of the form 12k-7 where m+2 is also a prime) is;



Tumbles and Jumps

In this section, c is restricted to being 1.  Let y be an even natural number such that y/2 is odd and denote [(y/2)(3/4)f]+1 where f is a natural number and the brackets denote the greatest integer function by v1.  (The 3/4 factor corresponds to the "loss" due to a 2 in a sequence vector.)  v1 will be referred to as a "tumble" if it is odd (tumbles are the counterparts of jumps).  Usually, v1 is not in the 3n+1 sequence starting with y/2.  Under the same order constraints as least-residue trees, a succession of tumbles and jumps (where the jumps start from the tumbles and the tumbles start from the jumps) have properties similar to a live limb in S of  a least-residue tree.  Denote the peaks and valleys in a succession of tumbles and jumps by y/2, v1, p1, v2, p2, v3, p3, ..., vi, pi and denote the exponents of the tumbles by f1, f2, f3, ..., fi and the exponents of the jumps by g1, g2, g3, ..., gi.  The conditions to be imposed on y and the jumps are that y be less than the order (of the form 3∙2k) and greater than  order/2, each of p1, p2, p3, ..., pi be less than the order, and pi be greater than order/3.  These conditions do not always guarantee that v1 is in the 3n+1 sequence starting with y/2, v2 is in the 3n+1 sequence starting with p1, v3 is in the 3n+1 sequence starting with p2, etc., but they come close to doing so.   For example, for i=2, f1=5, g1=4, f2=5, g2=3, y=282825586, and an order of 402653184, v1=33557919, p1=169886969, v2=40314975, and p2=136063043 where y, p1, and p2 are within the specified bounds.  The 3n+1 sequence starting with 141412793 (y/2) and having a length of 3f1+1 ends in 33557920, which is one larger than v1 (the 3 factor of the tumble exponent corresponds to the number of elements in the 3n+1 sequence due to a 2 in a sequence vector) .  The 3n+1 sequence starting with 169886969 (p1) and having a length of 3f2+1 ends in 241889848, where [241889848/6]+1 equals v2.  Denote the natural numbers these 3n+1 sequences end in by j and k.  Some possibilities for different y values giving tumbles and jumps with exponents of 5, 4, 5, and 3 respectively are; (1) v1=j and v2=k, (2) v1=j-1 and v2=[k/6]+1, (3) v1=j-1 and v2=[k/6], (4) v1=j and v2=[k/6], (5) v1=[j/6]+1 and v2=6k-5, (6) v1=j-1 and v2=k-1, (7) v1=6j-5 and v2=k, (8) v1=[j/6]+1 and 3v2+1=[k/12], (9) v1=[j/6]+1 and 3v2+1=[k/12]+1, and (10) v1=j-1 and v2=36k-9 (there are other possibilities).   In general, if  v1 is in the 3n+1 sequence starting with y/2, there are f1+1 odd natural numbers and 2f1 even natural numbers in this sub-sequence (the same as for a sequence vector consisting of f1 2's), if v2 is in the 3n+1 sequence starting with p1, there are f2+1 odd natural numbers and 2f2 even natural numbers in this sub-sequence (the same as for a sequence vector consisting of f2 2's), if v3 is in the 3n+1 sequence starting with p2, there are f3+1 odd natural numbers and 2f3 even natural numbers in this sub-sequence (the same as for a sequence vector consisting of f3 2's), etc.  These limbs (not necessarily 1-2 sequence vectors) then have the same X and Y values as a live limb in S of a least-residue tree.

References

(1)  R. E. Crandall, On the "3x+1" Problem, Mathematics of Computation, Vol. 32, No. 144, Oct. 1978, Pgs. 1281-1291.

(2)  John H. Conway, Unpredictable Iterations, Proc. 1972 Number Theory Conference, University of Colorado, Boulder, CO. 1972, pp. 49-52.

(3)  Terras, R., A stopping time problem on the positive integers, Acta Arithmetica 30 (1976), 241-252.

(4)  Bohm, C., and Sontacchi, G., On the existence of cycles of given length in integer sequences like xn+1=xn/2 if xn even, and xn+1=3xn+1 otherwise, Atti Accad. Naz. Lincei, VIII Ser., Rend., Cl. Sci. Fis. Mat. Nat. LXIV (1978), 260-264.

(5)  G. J. Wirsching, The Dynamical System Generated by the 3n+1 Function, 1681, Springer-Verlag (1998).

(6)  L. Halbeisen and N. Hungerbühler, Optimal bounds for the length of rational Collatz cycles, Acta Arith., LXXVIII.3, (1997), pgs. 227-239.

(7)  R. P. Steiner, A theorem on the Syracuse problem, Proceedings of the 7th Manitoba Conference on Numerical Mathematics and Computation, 1977, pp. 553-559.


(8)  J. L. Simons, On the Nonexistence of 2-cycles for the 3n+1 Problem, Mathematics of Computation, Dec. 8, 2004, Vol. 74, No. 251, pgs. 1565-1572.

(9)  J. Simons and B. de Weger, Theoretical and computational bounds for m-cycles of the 3n+1 problem, Acta Arith. 2005.

(10)  Edward G. Belaga [2003]: 21.  "Effective polynomial upper bounds to perigees and numbers of (3x + d)-cycles of a given Oddlength", Acta Arithmetica 106, 197206.

(11)  Georges Rhin, "Approximants de Padé et mesures effectives d'irrationalité", Progress in Mathematics 71 [1987], 155-164.

(12)  T. Brox, "Collatz cycles with few descents", Acta Arithmetica 92 [2000], 181-188.

(13)  Hardy, G. H. and Littlewood, J. E., Some Problems of Diophantine Approximation, Acta Math. 37 (1914), 193-239.

(14)  Edward G. Belaga, Maurice Mignotte [2000]:  "Cyclic Structure of Dynamical Systems Associated with 3x+d Extensions of Collatz Problem".  U. Strasbourg report 2000-18, 57 pages.  http://hal.archives-ouvertes.fr/IRMA-ACF, file hal-00129656.

(15)  Mihăilescu, P., Primary Cyclotomic Units and a Proof of Catalan's Conjecture, J. Reine angew. Math. 572: 167-195.

Software

MSVC++™ C programs were used to confirm the above propositions.  Readers may copy and modify the software in this section.  No guarantee is made that it is error-free.

Use test0a to find cycles in the 3n+c sequence.  The "iters" variable specifies the number of jumps from the initial n value in the sequence (an odd natural number divisible by 3).  Usually, "iters" is set to 1.  The list of cycles for c in the range from -151 to 151 was generated using this setting.  The list of cycles was confirmed to be the same using an "iters" setting of 2 or 3.  The cycles were verified to be the same as those given by Keith Matthews' cycle-finding program at "http://www.numbertheory.org/keith.html".  An improved cycle-finding program is test0azf (double-words are used).  A much faster cycle-finding program is test0azi.  Example output of this program (after some minor editing to fill in array sizes) is c1.  Another "include" file that is needed for subsequent processing is ln.  A program that does this processing is test0cyu.  Links to the subroutines "euclid" and "halbhung" (and other required subroutines) are given below.  An output of this program is the (L, K) values of the cycles with attachment points.  A table of the (L, K) values of the cycles with attachment points for c≤69997 is newlk.  A table of the (L, K) values of the cycles with attachment points for 70001≤c≤99997 is newlk1. A table of the (L, K) values of the cycles with attachment points for 100001≤c≤149999 is newlk2A table of the (L, K) values of the cycles with attachment points for 150001≤c≤199999 is newlk3.  These tables are "include" files for the program test23r (which finds associated cycles).  The program test23s finds (L, K) trees.  A still faster cycle-finding program is test0azk.  TMS320C64™ assembly language subroutines used are jumps, cycle, regen and check.  These subroutines are usually at least an order of magnitude faster than corresponding C code (depending on the compiler and microprocessor used for the C code).  A program for finding cycles without attachment points is test0azj.  Other input to "test0cyu" is c203, c401, c601, c803, c1001, c1201, c1403, c1601, c1801, c2003, c2201, c2401, c2603, c2801, c3001, c3203, c3401, c3601, c3803, c4001, c4201, c4403, c4601, c4801, c5003, c5201, c5401, c5603, c5801, c6001, c6203, c6401, c6601, c6803, c7001, c7201, c7403, c7601, c7801, c8003, c8201, c8401, c8603, c8801, c9001, c9203, c9401, c9601, and c9803.  Attachment points for 3n+c cycles where c≤199999 are given in att1, att2, att3, att4, att5, att6, att7, att8, att9, att10, att11, att12, att13, att14, and att15.  Only one attachment point per cycle is given and only the least significant word of the attachment point is given.  The program test0cyw supplies the most significant word of the attachment point and regenerates the other attachment points.  Otherwise, this program does the same processing as "test0cyu".  A version of "test0cyw" where all the c values up to 99997 can be processed at once is test0cyx.  "Include" files are att1t, att2t, att3t, att4t, and att5t.

Use test1c to histogram the |t2|-|t1| values of 3n+c sequences starting with an odd integer divisible by 3 and having a 1-2 sequence vector that attach to other such sequences.

Use test0b to regenerate a cycle in the 3n+c sequence given an entry point (must be even) into the cycle.  The order of the cycle is computed.  The output of "test0a" is input to this program.

Use test0c to regenerate cycles in the 3n+c sequence given a list of entry points into the cycles.  (The list of cycles is confirmed.)

Use test0d to regenerate cycles in the 3n+c sequence given a list of entry points into the cycles.  A check for 1-2 sequence vectors at entry points into the cycles is made (for "multiple jump" connection points).

Use test0e to regenerate cycles in the 3n+c sequence given a list of entry points into the cycles.  A check for 1-2 sequence vectors at entry points into the cycles is made (for "jumps over" connection points).

list consists of the cycles found for c in the range from -151 to 151.

list1 consists of one-attachment-point cycles found for c in the range from -151 to 151.

Use test1 to find the number of jumps in the 3n+1 sequence before an even natural number is reached (starting with an odd natural number divisible by 3).

Use test2 to generate a histogram of limb lengths for a 3n+c sequence that is not an "odd" path.  The fourth-to-last element of the sequence must be an odd natural number greater than order/6 and the third-to-last element of the sequence must be an even natural number divisible by 8.  Use test2a to compute the (l, m) values of generalized dead limbs.  The "iters" variable is the number of primary attachment points (usually, the "iters1" variable is set to the same value).  An updated version of this program is at test2an.

Use test3a to generate limbs of least-residue trees where at least one element of the limb is divisible by 8.

Use test3b to generate limbs of least-residue trees where at least one element of the limb is divisible by 8.  Multiple-word arithmetic is used.

Use test3c to generate limbs of least-residue trees where at least one element of the limb is divisible by 8.  Multiple-word arithmetic is used.  This C program is for use on the TMS320C64™ digital signal processing chip (with hand-optimized assembly language subroutines).

Use test4a12, test4a13, test4a14, test4a15, test4a16, test4a17, test4a18, test4a19, test4a20, test4a21, test4a22, test4a23, test4a24, test4a25, test4a26, test4a27, test4a28, test4a29, test4a30, test4a31, test4a32, and test4a33 to compare the number of limbs in S of a given length to the estimated number of limbs.  Only live limbs are considered.

Use test5a to generate tumbles and jumps having three peaks and two troughs.

Use test5b to generate tumbles and jumps having four peaks and three troughs.

Use test6a to compute the largest y values, the smallest y values, the largest z values, and the smallest z values for live limbs in S associated with a given sequence vector.  The maximum |X(δ/y)| value is computed.

Use test6b to compute the largest y values for live limbs in S associated with a given sequence vector.  The maximum |X(δ/y)| value is computed.  This C program is for use on the TMS320C64™ digital signal processing chip (with hand-optimized assembly language subroutines).

Use test7 to check that n(order/2)>ce, c>0, n>0, or (-n)(order/2)>(-c)e, n<0, c<0.  Floating point arithmetic is used.

Use test8 to check that x>0 for limb lengths with positive limits and x<0 for limb lengths with negative limits.

Use test9 to generate least-residue trees.  The permutation of A, B, C, and D for different c values is checked.

Use test10 to generate least-residue trees for the 3n-1 sequence, k≤15.  Numerous properties of least-residue trees are tested.  Limbs in S having lengths of 5, 10, 15, 18, 23, and 28 are verified to be dead.

Use test11 to generate long limbs in S.  Sequence vectors are generated.

Use test12 to find sequence vectors corresponding to different e values.  All the orders up to 3∙224 are computed.  The maximum and minimum x/y values for live limbs are computed for every order and are verified to be either ascending of descending.

Use test13 to compute a and b values.

Use test14a to compute the minimum element in a cycle using the formula Ml,m=∑(]jm/l[-](j-1)m/l[)2j-13m-]jm/l[  where the summation is from j=1 to l.  Use test14b to compute the minimum element in a cycle in a limb of S of a least-residue tree.  Use test14c to compute the minimum element in a cycle in a limb of S of a least-residue tree (using the TMS320C64™ DSP.)  Use test14d to compute the minimum element in a cycle in a limb of S of a least-residue tree when m and m+2 are primes.  Use test14e to output the computed minima for a cycle in a limb of S of a least-residue tree.  Use test14f to compute an upper bound of the minimum element in a cycle in a limb of S of a least-residue tree where m and m+2 are prime.  Use test14g to compute an upper bound of the minimum element in a cycle in a limb of S of a least-residue tree when m is prime.  Use test14h to compute an upper bound of the minimum element in a cycle in a limb of S of a least-residue tree when m is prime (using the TMS320C64™ DSP).  Use test14i to generate the sequence vector corresponding to the smallest e from the parity vector.  Use test14j to compute the largest odd element in a cycle using the floor function.  Use test14k to compute an upper bound of the minimum element in a cycle in a limb of S of a least-residue tree when l is prime (using the TMS320C64™ DSP).

Use test15 to generate parity vectors (distinct under rotation) for given l and m values (using the TMS320C64™ DSP).  Subroutines called are bitcnt and pack.

Use test16 to determine that the (l, m) value of a generalized dead limb minus the (l, m) value of a generalized continued-fraction convergent of log(3)/log(2) is the (l, m) value of a shorter generalized dead limb.

Use test17 to show that |2l-3m| increases monotonically when (l, m) are generalized continued-fraction convergents of log(3)/log(2) (excluding (2, 1), (4, 2), (6, 4), and (9, 6)).  |2l-3m| is shown to increase monotonically for 105 generalized continued-fraction convergents of log(3)/log(2).  This program is for use on the TMS320C64™ DSP.

Use test18 to generate the parity vector of a 3n+c cycle where twice the minimum element in the cycle is larger than the maximum odd element in the cycle (and the elements are large).  This program is for use on the TMS320C64™ DSP.  (A corresponding C program is test14uf.)  sv gives a portion of this parity vector.  Use test14da to compute Ml,m/(2l-3m) values for the corresponding M-cycles.  Use test14db to determine if rotations of certain parity vectors match the parity vector p.

Use test19 to find rotations of the parity vector ]jm/l[ - ](j-1)m/l[, j=1, 2, 3, ..., l, where (0, 1, 0) is at the beginning of the vector and twice the smallest s value is larger than the largest "odd" s value.  This program is for use on the TMS320C64™ DSP.  Use test19a to find rotations of the vector satisfying the two additional conditions.

Use test20 to find limbs in S almost having the parity vector ]jm/l[ - ](j-1)m/l[, j=1, 2, 3, ..., l (the parity vector is rotated so that a (1, 1) is at the beginning of the vector and the first 1 in the vector is changed to a 0 and the last element of the vector [a 0] is changed to a 1).  A subroutine used is limb.  This program is for use on the TMS320C64™ DSP.  test20a doesn't use the "limb" subroutine.

Use test21ca to compute the number of odd elements in a one-jump (or multiple-jump) attachment point minus j where t≡u(mod 2j).  test21cb computes these values for c values between 601 and 997.  test21cc computes these values for c values between 1001 and 1499.  test21cd computes these values for c values between 1501 and 1999.  test21ce computes these values for c values between 2003 and 2497.  Subroutines used are halbhung and euclid.   The properties of no-jump, one-jump, multiple-jump, and jumped-over attachment points are tested.

Use log2 to compute the logarithm of 2.  Use log3o2 to compute the logarithm of 3/2.  Use expand to compute the generalized continued-fraction convergents of log(3)/log(2).  Use test22 to compute the upper bound of the minimum in a 3n+c cycle using Proposition (43).  Use test23b to factor Collatz numbers.

Multiple-word arithmetic C subroutines are add64, add128, add256, add512, add1024, carry, copy256, copy512, copy1024, div6432, div12864, div25632div102432, div204832, divn, lshift256, lshift512, lshift1024, lmbd, mul6432, mul6464, mul12832, set256, set512, set1024, shift64, shift128, shift256, shift512, shift1024, sub64, sub128, sub256, sub512, sub1024, subr2, n-word arithmetic, table, table1, table2, and table4.

Multiple-word arithmetic TMS320C64™ assembly language subroutines are add64, div12864, div6432, mul6432, mul6464, mul3232, shift64, sub64, subr2, and n-word arithmetic.

Other Topics

It's commonly known that there is a formula for Pythagorean triples (integer solutions of a2+b2=c2).  It's less commonly known that there are "almost" integer solutions of a3+b3=c3.  When 3 does not divide a+b and a+b is factored out of a3+b3, the equation a2-ab+b2=T3 is obtained and there are integer solutions of this equation.  Solutions of this equation are of interest since classical results from algebraic number theory (Furtwängler's and Vandiver's theorems) are still applicable.  This topic is discussed in the link fermat.

In his book Elements of Algebraic Coding Theory (Chapman & Hall, 1996), Lekh Vermani gives a proof of the quadratic reciprocity law using Perron's theorem.  Perron's theorem concerns the number of consecutive quadratic residues and consecutive quadratic non-residues.  Many textbooks on algebraic number theory have sections on cubic, biquadratic, and octic reciprocity.  Whether a generalized version of Perron's theorem is still applicable to higher-order reciprocity is discussed in the link congr.

A relationship between the cross-ratio function of geometry and complex analysis, the Poisson probability distribution, and Fermat's congruence modulo a prime power is discussed in the link psquare.

Generalized Fibonacci and Lucas series are discussed in the link nroots.

The cross-ratio function is discussed in the link cross.

The Farey series is discussed in the link farey.

The relationship between the Farey series and the Riemann hypothesis is discussed in the link riemann.

A link to a 3n+c cycle C program with "include" files is cycles.
